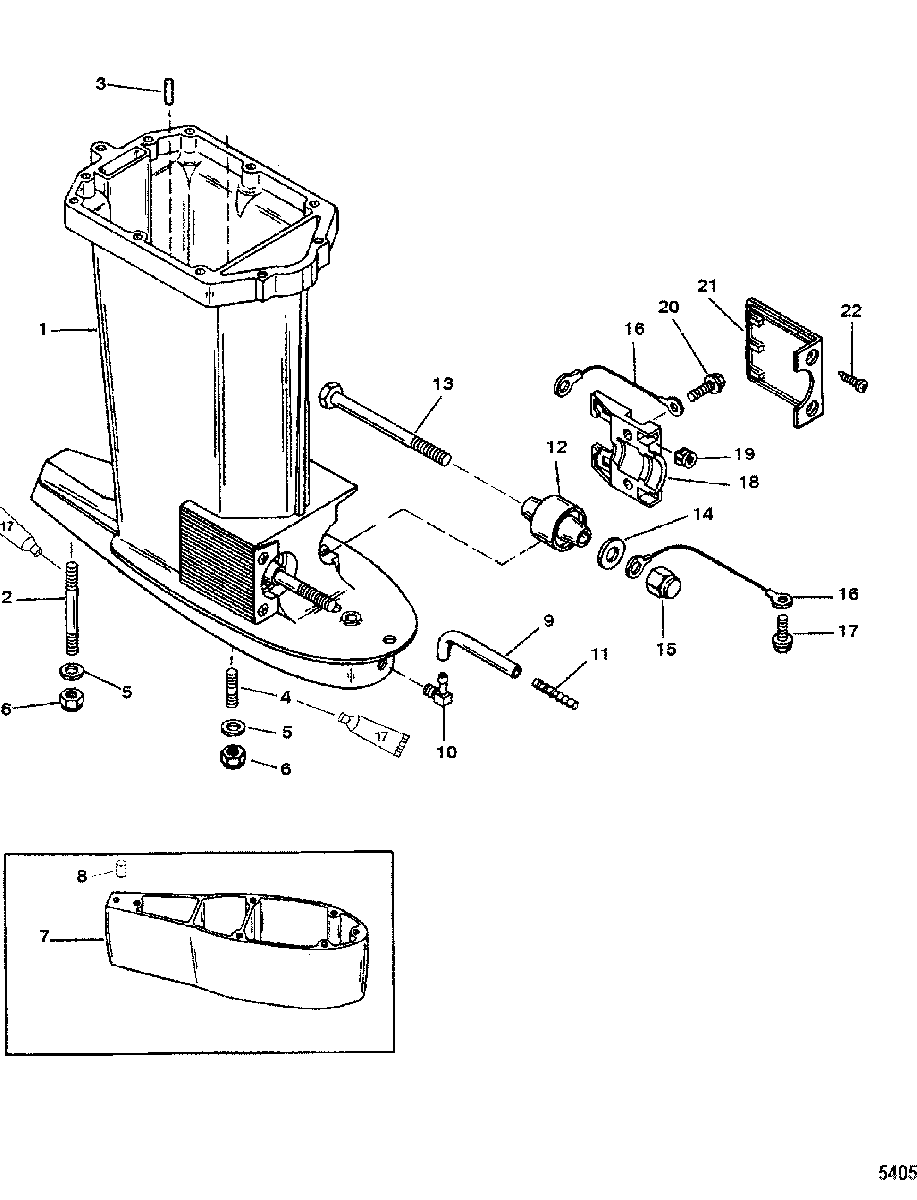

Driveshaft Housing, USA-0T800999/ BEL-0P267999 and Below для Mercury - 125 (4 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 1
    1598-8974A26 HOUSING ASSEMBLY, Driveshaft
    (Jet)
    HOUSING ASSEMBLY, Driveshaft
    (Jet)
  • 2
    16-903501 STUD, (M10 x 100)
    (Long)
    STUD, (M10 x 100)
    (Long)
  • 2
    16-8M0034467 STUD, (M10 x 227)
    (X-Long)
    STUD, (M10 x 227)
    (X-Long)
  • 3
    17-23784 PIN, Dowel
    PIN, Dowel
  • 4
    16-9035012 STUD, (M10 x 63)
    (Long)
    STUD, (M10 x 63)
    (Long)
  • 4
    16-8M0034462 STUD, (M10 x 190)
    (X-Long)
    STUD, (M10 x 190)
    (X-Long)
  • 5
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 6
    11-40140 NUT, (M10)
    NUT, (M10)
  • 7
    12092A3 SPACER KIT
    (X-Long)
    SPACER KIT
    (X-Long)
  • 8
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (With Hole)
    (X-Long)
    PIN, Dowel - With Hole (.375 x .625) (With Hole)
    (X-Long)
  • 8
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    (X-Long)
    PIN, Dowel - Without Hole (.375 x .625)
    (X-Long)
  • 9
    22-85822A4 PICKUP ASSEMBLY, Speedometer
    PICKUP ASSEMBLY, Speedometer
  • 10
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 11
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 12
    44343T1 MOUNT
    MOUNT
  • 13
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 14
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 15
    11-43528 NUT, (M12)
    NUT, (M12)
  • 16
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 17
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 18
    8M0036730 CLAMP
    CLAMP
  • 19
    11-35521 NUT
    NUT
  • 20
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 21
    100-8M4500752 COVER, Black
    COVER, Black
  • 22
    10-88417 SCREW, (#12-24 x .620)
    SCREW, (#12-24 x .620)
