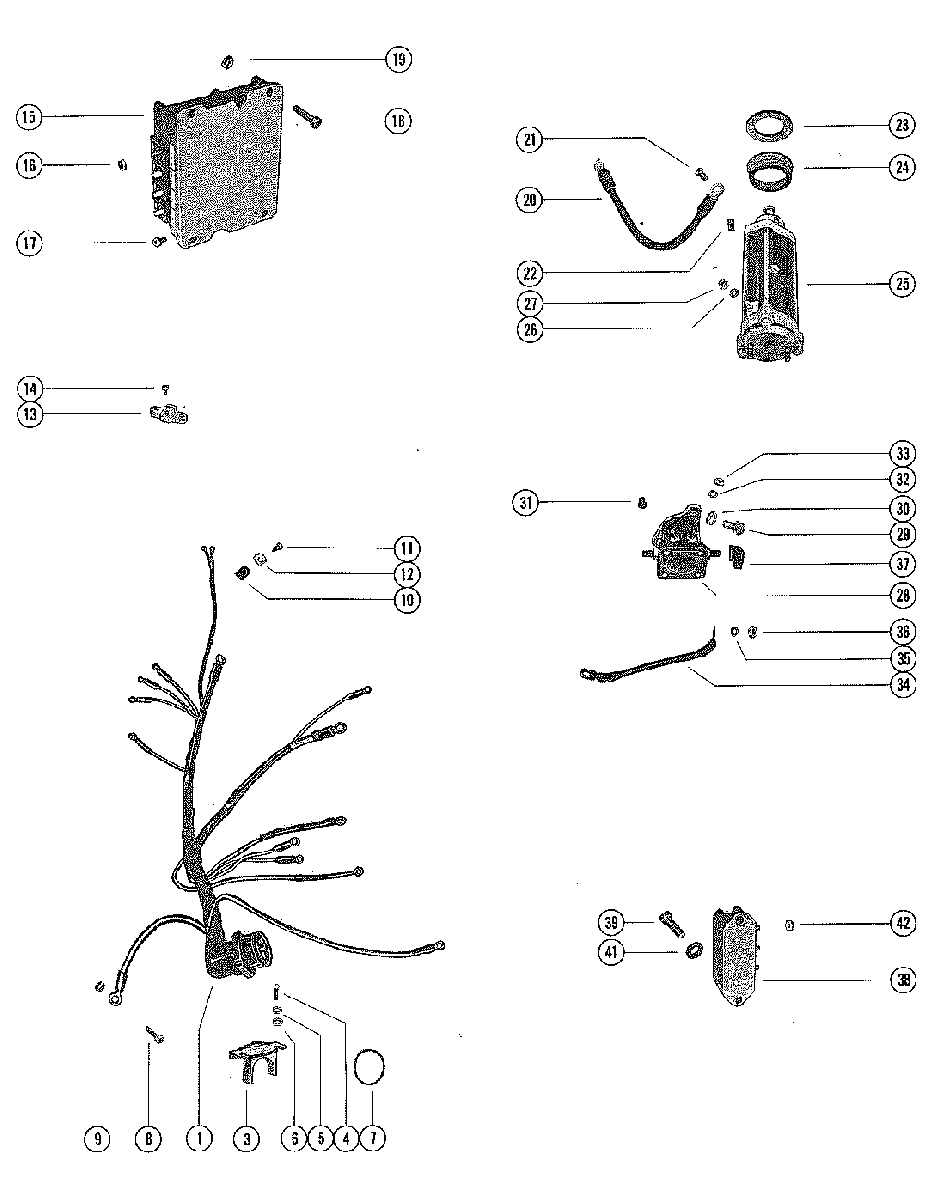

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 1150, 115 7112248 THRU 7131212

№

Артикул

Название
1

84-69236A1 WIRING HARNESS, INTERNAL

WIRING HARNESS, INTERNAL

21 800 ₽
3

54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL

CLAMP, WIRING HARNESS TO BOTTOM COWL

0 ₽
4

10-690201 SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

SCREW
WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

180 ₽
5

13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW

LOCKWASHER, WIRING HARNESS CLAMP SCREW

60 ₽
6

12-30164 WASHER, WIRING HARNESS CLAMP SCREW

WASHER, WIRING HARNESS CLAMP SCREW

130 ₽
7

24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS

SPRING, GARTER - INTERNAL WIRING HARNESS

0 ₽
8

10-98256 SCREW, GROUND WIRE TO BOTTOM COWL

SCREW, GROUND WIRE TO BOTTOM COWL

90 ₽
9

13-26992 LOCKWASHER, GROUND WIRE SCREW

LOCKWASHER, GROUND WIRE SCREW

70 ₽
10

54-648552 CLIP, STATOR LEADS TO BLOCK (1/8")

CLIP, STATOR LEADS TO BLOCK (1/8")

330 ₽
11

10-62568 SCREW
WIRING HARNESS TO FRONT BRACKET (3/8")

SCREW
WIRING HARNESS TO FRONT BRACKET (3/8")

70 ₽
12

8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW

"D" WASHER, WIRING HARNESS CLIP SCREW

100 ₽
13

45559 TERMINAL BLOCK, STATOR LEADS

TERMINAL BLOCK, STATOR LEADS

360 ₽
14

10-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")

SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")

70 ₽
15

332-2986A21 SWITCH BOX ASSEMBLY

SWITCH BOX ASSEMBLY

95 900 ₽
16

11-45076 NUT, SWITCH BOX TERMINAL

NUT, SWITCH BOX TERMINAL

120 ₽
17

10-29794 SCREW, SWITCH BOX (3/8")

SCREW, SWITCH BOX (3/8")

0 ₽
18

10-64279 SCREW
SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")

SCREW
SWITCH BOX TO FRONT MOUNTING BRACKET (3/4")

0 ₽
19

11-20184 NUT, SWITCH BOX SCREW

NUT, SWITCH BOX SCREW

120 ₽
20

84-93389A12 CABLE, WIRE
STARTER MOTOR TO FRONT SUPPORT BRACKET

CABLE, WIRE
STARTER MOTOR TO FRONT SUPPORT BRACKET

750 ₽
21

10-69035 SCREW, WIRE CABLE TO STARTER MOTOR

SCREW, WIRE CABLE TO STARTER MOTOR

140 ₽
22

8M0043376 STOP, RUBBER - STARTER MOTOR

STOP, RUBBER - STARTER MOTOR

340 ₽
23

23-56774 SPACER, COLLAR TO TOP MOUNTING CAP

SPACER, COLLAR TO TOP MOUNTING CAP

0 ₽
24

23-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNT

COLLAR, RUBBER - STARTER MOTOR MOUNT

680 ₽
25

50-898265010 STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

51 040 ₽
26

13-26992 LOCKWASHER, STARTER MOTOR TERMINAL

LOCKWASHER, STARTER MOTOR TERMINAL

70 ₽
27

11-64015 NUT, STARTER MOTOR TERMINAL

NUT, STARTER MOTOR TERMINAL

150 ₽
28

89-853654A1 SOLENOID, STARTER

SOLENOID, STARTER

4 900 ₽
29

10-38601 SCREW, SOLENOID TO BOTTOM COWL (5/8")

SCREW, SOLENOID TO BOTTOM COWL (5/8")

140 ₽
30

13-26992 LOCKWASHER
STARTER SOLENOID FASTENING SCREW

LOCKWASHER
STARTER SOLENOID FASTENING SCREW

70 ₽
31

269011 BUMPER, RUBBER - STARTER SOLENOID

BUMPER, RUBBER - STARTER SOLENOID

290 ₽
32

13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)

LOCKWASHER, SOLENOID TERMINAL (#10)

60 ₽
33

11-68219 NUT, SOLENOID TERMINAL (#10)

NUT, SOLENOID TERMINAL (#10)

50 ₽
34

84-93388A8 CABLE, WIRE - STARTER MOTOR TO SOLENOID

CABLE, WIRE - STARTER MOTOR TO SOLENOID

2 090 ₽
35

13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")

LOCKWASHER, SOLENOID TERMINAL (5/16")

140 ₽
36

11-68292 NUT, SOLENOID TERMINAL (5/16")

NUT, SOLENOID TERMINAL (5/16")

200 ₽
37

46265 BOOT, SOLENOID TERMINAL

BOOT, SOLENOID TERMINAL

340 ₽
38

8M0058226 RECTIFIER ASSEMBLY

RECTIFIER ASSEMBLY

8 500 ₽
39

10-37656 SCREW, RECITIFIER TO FRONT BRACKET (5/8")

SCREW, RECITIFIER TO FRONT BRACKET (5/8")

0 ₽
42

11-45076 NUT, STATOR LEADS TO RECITIFIER

NUT, STATOR LEADS TO RECITIFIER

120 ₽
