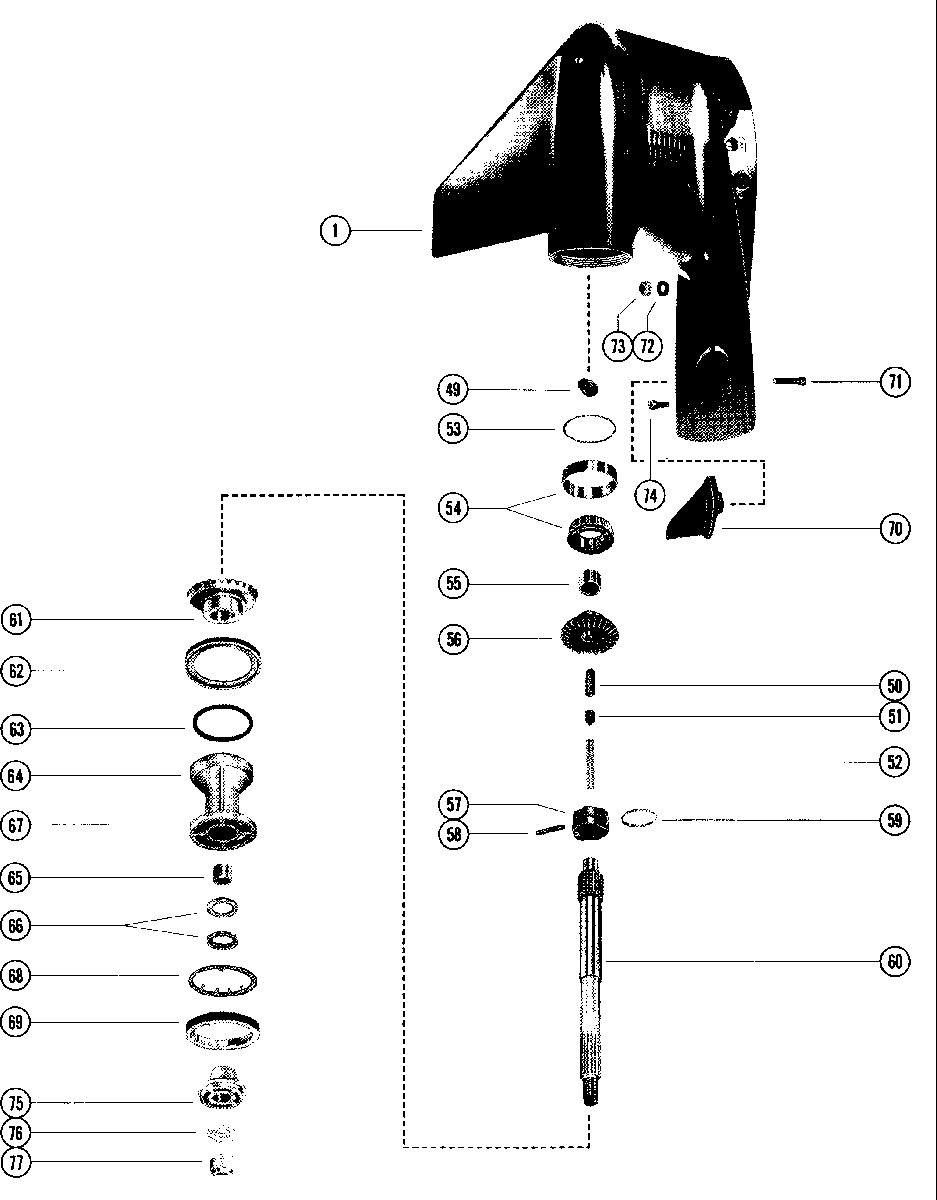

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1150, 115 4855153 THRU 5314655
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASS'Y. COMP.(LONG SHAFT)
SEE NOT BELOW UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOWGEAR HOUSING ASS'Y. COMP.(LONG SHAFT)
SEE NOT BELOW UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOW -
-1655-7333T24 GEAR HOUSING ASS'Y. COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UPGEAR HOUSING ASS'Y. COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UP -
-1655-7333A26 GEAR HOUSING ASS'Y. COMP. (EXTRA LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UPGEAR HOUSING ASS'Y. COMP. (EXTRA LONG SHAFT)
SEE NOTE BELOW
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UP -
11655-7333T23 GEAR HOUSING ASS'Y.
UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOWGEAR HOUSING ASS'Y.
UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOW -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UPGEAR HOUSING ASS'Y
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UP -
49760394 CAM, SHIFT
UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOWCAM, SHIFT
UNITED STATES 5168573 AND BELOW
AUSTRALIA 8056944 AND BELOW
CANADA 7123762 AND BELOW -
49760394 CAM, SHIFT
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UPCAM, SHIFT
UNITED STATES 5168574 AND UP
AUSTRALIA 8056945 AND UP
CANADA 7123763 AND UP -
5030625 FOLLOWER, CAMFOLLOWER, CAM
-
5130624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5224-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5315-30923A1 SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10)SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10) -
5431-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5531-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5643-68447T1 FORWARD GEARFORWARD GEAR
-
5752-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5817-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5924-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6044-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6143-76250T REVERSE GEARREVERSE GEAR
-
6212-76358 WASHER
THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER
THRUST - BEARING CARRIER TO GEAR HOUSING -
6325-29976 "O"RING, BEARING CARRIER"O"RING, BEARING CARRIER
-
6441529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6531-30956T BEARING ROLLER - BEARING CARRIERBEARING ROLLER - BEARING CARRIER
-
6626-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6814-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6952699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7110-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7212-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7311-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7410-65210 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") - LONG SHAFTSCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") - LONG SHAFT -
7410-74727 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (6") - EXTRA LONGSCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (6") - EXTRA LONG -
7513191Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
7614-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7711-52707Q1 NUT, PROPELLERNUT, PROPELLER
-
-27-85653A87 GASKET SETGASKET SET
