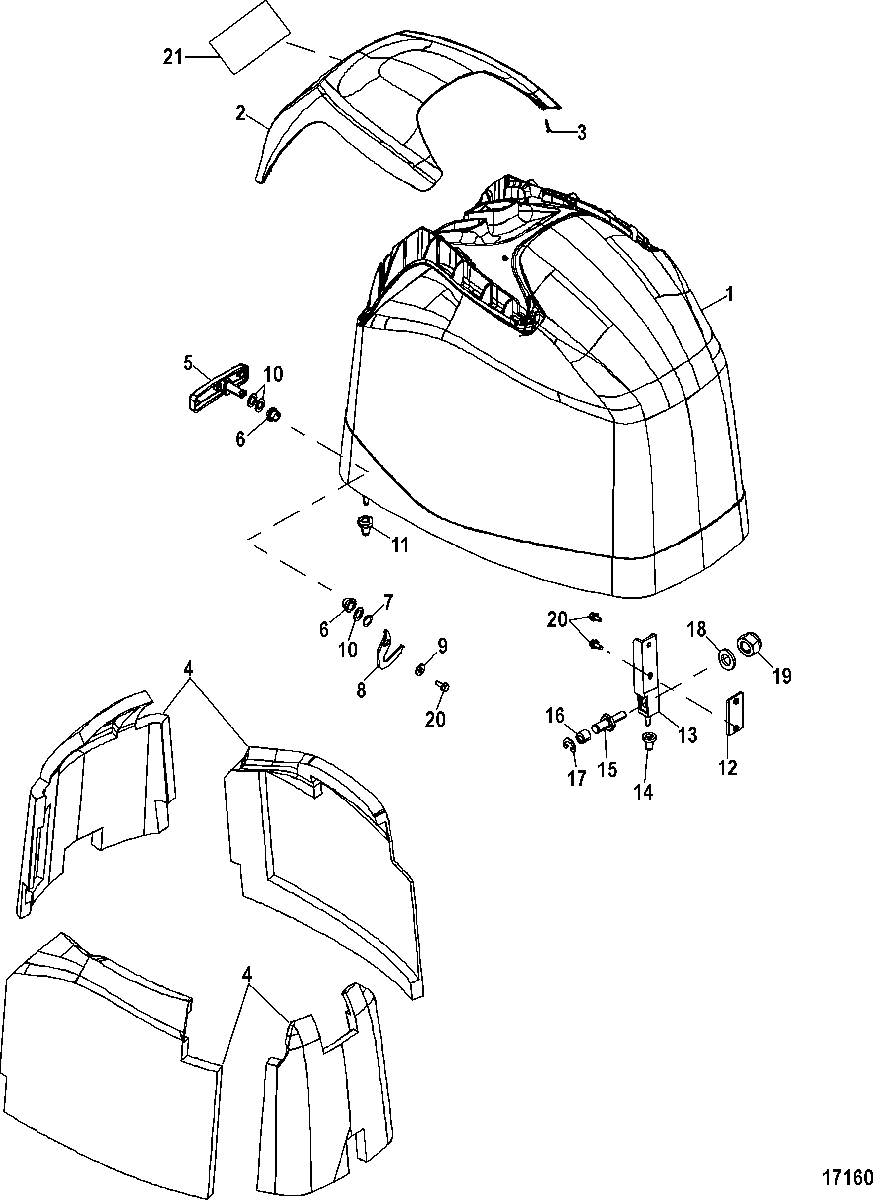

Top Cowl, 1B943218 and below для Mercury - 115 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1100-8M0075360 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
1100-8M0075361 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
1100-8M0075360 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
1100-8M0075361 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
2897529T CAP, Air Dam - MercuryCAP, Air Dam - Mercury
-
2897529T01 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
310-888950020 SCREW, (M4 x 20 mm)SCREW, (M4 x 20 mm)
-
48M0000346 SOUND BLANKET ASSEMBLYSOUND BLANKET ASSEMBLY
-
5831207A16 HANDLE
Cast SN# 1B500145 & BelowHANDLE
Cast SN# 1B500145 & Below -
5831207A16 HANDLE KIT, Cowl Latch
Plastic SN# 1B500146 & UpHANDLE KIT, Cowl Latch
Plastic SN# 1B500146 & Up -
623-812707 BUSHINGBUSHING
-
713-12134 WASHER, WaveWASHER, Wave
-
88M0001081 CAMCAM
-
912-4002316 WASHERWASHER
-
1012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
11815477 BUMPER, LatchBUMPER, Latch
-
12897975 PLATE, BackingPLATE, Backing
-
138M0036792 BRACKET, FrontBRACKET, Front
-
14815477 BUMPER, LatchBUMPER, Latch
-
158155381 PIN, RollPIN, Roll
-
16815263 ROLLERROLLER
-
1753-8237951 RING, RetainingRING, Retaining
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2010-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
2137-8M0022127 DECAL, Back Lenz and Graphic AssemblyDECAL, Back Lenz and Graphic Assembly
-
-37-8M0114993 DECAL SET, Mercury 75DECAL SET, Mercury 75
-
-37-8M0061175 DECAL, Horsepower (75)DECAL, Horsepower (75)
-
-37-8M0114993 DECAL SET, Mercury 80DECAL SET, Mercury 80
-
-37-8M0061176 DECAL, Horsepower (80)DECAL, Horsepower (80)
-
-37-8M0114993 DECAL SET, Mercury 90DECAL SET, Mercury 90
-
-37-8M0115000 DECAL, Horsepower (90)DECAL, Horsepower (90)
-
-37-8M0063419 DECAL SET, Mercury 100DECAL SET, Mercury 100
-
-37-8M0061178 DECAL, Horsepower (100)DECAL, Horsepower (100)
-
-37-8M0114993 DECAL SET, Mercury 115DECAL SET, Mercury 115
-
-37-8M0115000 DECAL, Horsepower 115DECAL, Horsepower 115
-
-37-898822001 DECAL, Wrap Mariner 75DECAL, Wrap Mariner 75
-
-37-898822002 DECAL, Wrap Mariner 80DECAL, Wrap Mariner 80
-
-37-898822003 DECAL, Wrap Mariner 90DECAL, Wrap Mariner 90
-
-37-898822004 DECAL, Wrap Mariner 100DECAL, Wrap Mariner 100
-
-37-898822005 DECAL, Wrap Mariner 115DECAL, Wrap Mariner 115
-
-37-8M0133054 DECAL, M IconDECAL, M Icon
