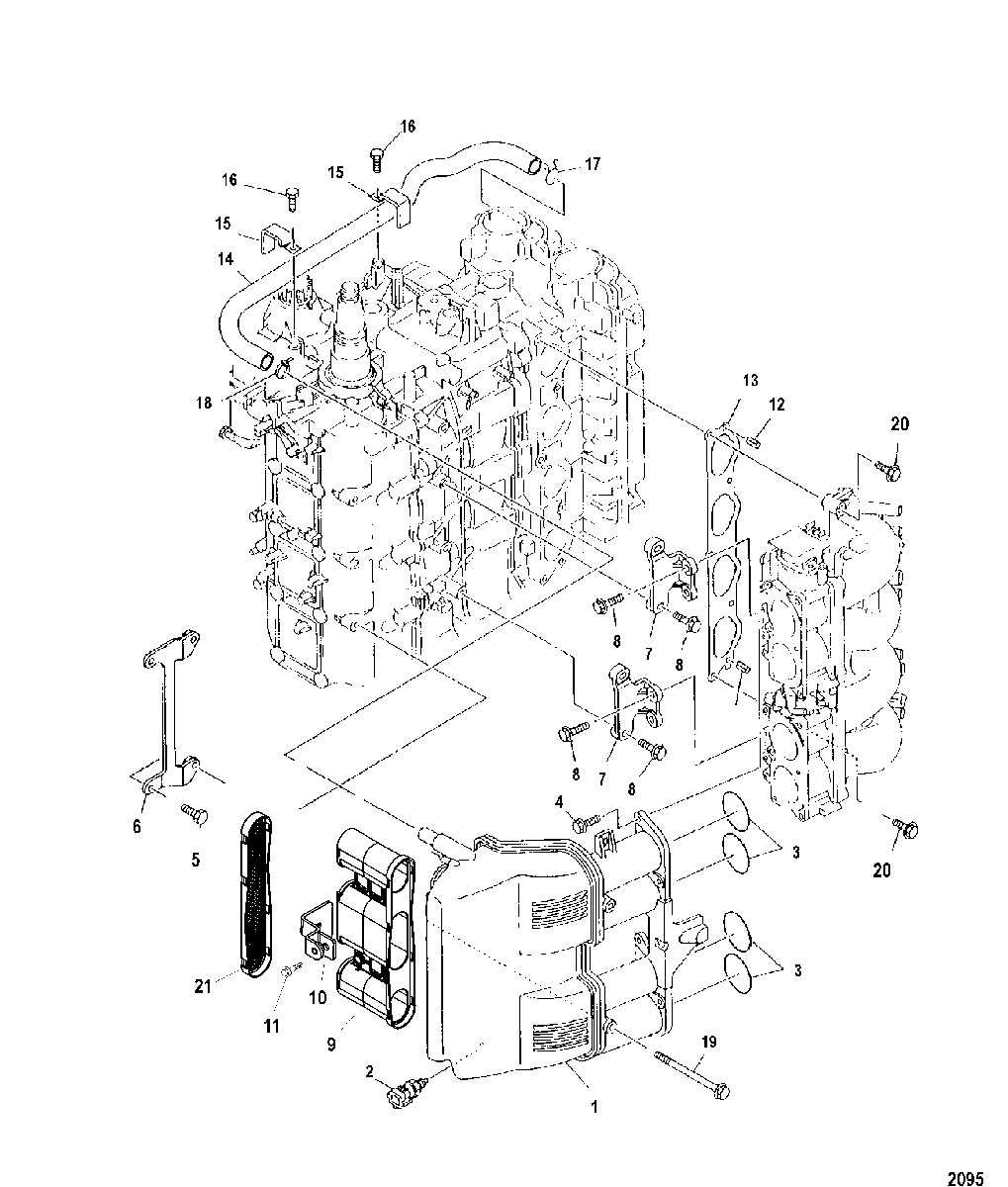

Intake Silencer для Mercury - 115 EFI (4-STROKE) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    881436T SILENCER, Intake
    SILENCER, Intake
  • 2
    880882T THERMOSENSOR
    THERMOSENSOR
  • 3
    25-881437 O-RING
    O-RING
  • 4
    10-804165 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 5
    10-881816 BOLT, (M8 x 20)
    BOLT, (M8 x 20)
  • 6
    881439 BRACKET
    BRACKET
  • 7
    8M0059034 BRACKET
    BRACKET
  • 8
    10-881435 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 9
    892849 INDUCTION SILENCER
    SN# 0T979999 & Below
    INDUCTION SILENCER
    SN# 0T979999 & Below
  • 9
    892849 INDUCTION SILENCER
    SN# 0T980000 & Up
    INDUCTION SILENCER
    SN# 0T980000 & Up
  • 10
    881269 BRACKET
    BRACKET
  • 11
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 12
    17-804160 PIN
    PIN
  • 13
    27-881433 GASKET
    GASKET
  • 14
    32-804162 BREATHER PIPE
    BREATHER PIPE
  • 15
    54-804163 CLAMP
    CLAMP
  • 16
    10-804602 BOLT, (M6 x 12)
    BOLT, (M6 x 12)
  • 17
    54-804089 CLIP
    CLIP
  • 18
    56762 CLAMP
    SN# 0T979999 & Below
    CLAMP
    SN# 0T979999 & Below
  • 18
    56762 TIE STRAP, (4.00 Inches)
    SN# 0T980000 & Up
    TIE STRAP, (4.00 Inches)
    SN# 0T980000 & Up
  • 19
    10-881438 BOLT, (M6 x 105)
    BOLT, (M6 x 105)
  • 20
    10-881431 BOLT, (M8 x 40)
    BOLT, (M8 x 40)
  • 21
    881822 SCREEN
    SCREEN
  • -
    27-858732T02 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    881421T04 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
