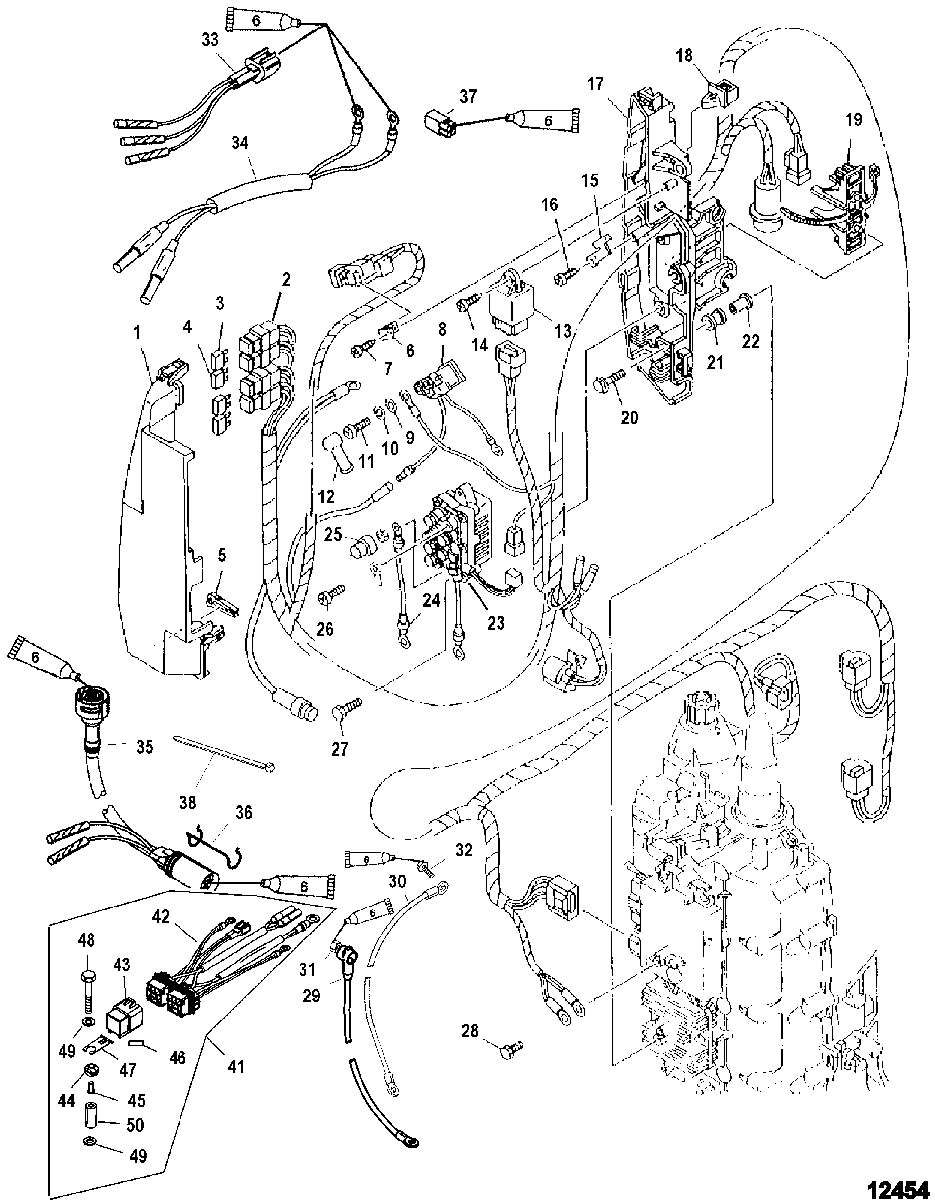

Electrical Components для Mercury - 115 EFI (4-STROKE) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    881363A02 COVER
    COVER
  • 2
    84-881364T04 HARNESS ASSEMBLY
    SN# 0T409000 & Up
    HARNESS ASSEMBLY
    SN# 0T409000 & Up
  • 2
    84-881364T04 HARNESS ASSEMBLY
    SN# 0T408999 & Below
    HARNESS ASSEMBLY
    SN# 0T408999 & Below
  • 3
    88-832969T20 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 4
    88-8M0057159 FUSE, 30 Ampere
    FUSE, 30 Ampere
  • 0
    891824010 COVER, Fuse
    (Yellow)
    COVER, Fuse
    (Yellow)
  • 0
    891824020 COVER, Fuse
    (Green)
    COVER, Fuse
    (Green)
  • 5
    804289 PULLER, Fuse
    PULLER, Fuse
  • 6
    881362 BRACKET
    BRACKET
  • 7
    10-8813511 SCREW
    SCREW
  • 8
    881352T RELAY
    RELAY
  • 9
    12-82214M WASHER
    WASHER
  • 10
    13-82212M LOCKWASHER
    LOCKWASHER
  • 11
    10-96671M SCREW
    SCREW
  • 12
    85-804284001 BOOT
    BOOT
  • 13
    881350T RELAY
    RELAY
  • 14
    10-881351 SCREW
    SCREW
  • 15
    54-881353 CLAMP
    CLAMP
  • 16
    10-8813511 SCREW
    SCREW
  • 17
    881363A02 BRACKET
    BRACKET
  • 18
    54-881361 CLAMP
    CLAMP
  • 19
    54-881360 CLAMP
    CLAMP
  • 20
    10-804270 BOLT, (M6 x 28)
    BOLT, (M6 x 28)
  • 21
    25-881304 GROMMET
    GROMMET
  • 22
    23-804344003 BUSHING
    BUSHING
  • 23
    882751A3 RELAY ASSEMBLY
    (Design I)
    RELAY ASSEMBLY
    (Design I)
  • 24
    84-881357 LEAD WIRE
    (Design I)
    LEAD WIRE
    (Design I)
  • 25
    881358 CAP
    (Design I)
    CAP
    (Design I)
  • 26
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 27
    10-8257021 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 28
    10-804604 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 29
    84-88439A33 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 30
    84-88439A10 CABLE ASSEMBLY, Negative - Battery
    CABLE ASSEMBLY, Negative - Battery
  • 31
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 32
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 33
    84-858723T1 HARNESS ASSEMBLY, Adaptor/Trim
    HARNESS ASSEMBLY, Adaptor/Trim
  • 34
    84-858914T1 HARNESS ASSEMBLY, Trim Motor Adaptor
    HARNESS ASSEMBLY, Trim Motor Adaptor
  • 35
    84-858740T4 HARNESS ASSEMBLY, Adaptor Assembly Remote
    HARNESS ASSEMBLY, Adaptor Assembly Remote
  • 36
    92753 RETAINER
    RETAINER
  • 37
    859249T1 CONNECTOR
    CONNECTOR
  • 38
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 39
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 40
    37-881865 DECAL, Caution-Start in Gear, Start in Gear
    DECAL, Caution-Start in Gear, Start in Gear
  • 41
    882751A3 TRIM RELAY KIT
    (Design II)
    TRIM RELAY KIT
    (Design II)
  • 42
    84-826802A24 HARNESS ASSEMBLY, Trim
    (Design II)
    HARNESS ASSEMBLY, Trim
    (Design II)
  • 43
    882751A1 RELAY ASSEMBLY
    (Design II)
    RELAY ASSEMBLY
    (Design II)
  • 44
    25-818967 GROMMET
    (Design II)
    GROMMET
    (Design II)
  • 45
    23-818968 BUSHING
    (Design II)
    BUSHING
    (Design II)
  • 46
    NSS NOT SOLD SEPARATE, Decal
    (Design II)
    NOT SOLD SEPARATE, Decal
    (Design II)
  • 47
    828102 BRACKET
    (Design II)
    BRACKET
    (Design II)
  • 48
    10-824868 SCREW, (M6 x 75)
    (Design II)
    SCREW, (M6 x 75)
    (Design II)
  • 49
    12-4002316 WASHER
    (Design II)
    WASHER
    (Design II)
  • 50
    23-823807 BUSHING
    (Design II)
    BUSHING
    (Design II)
