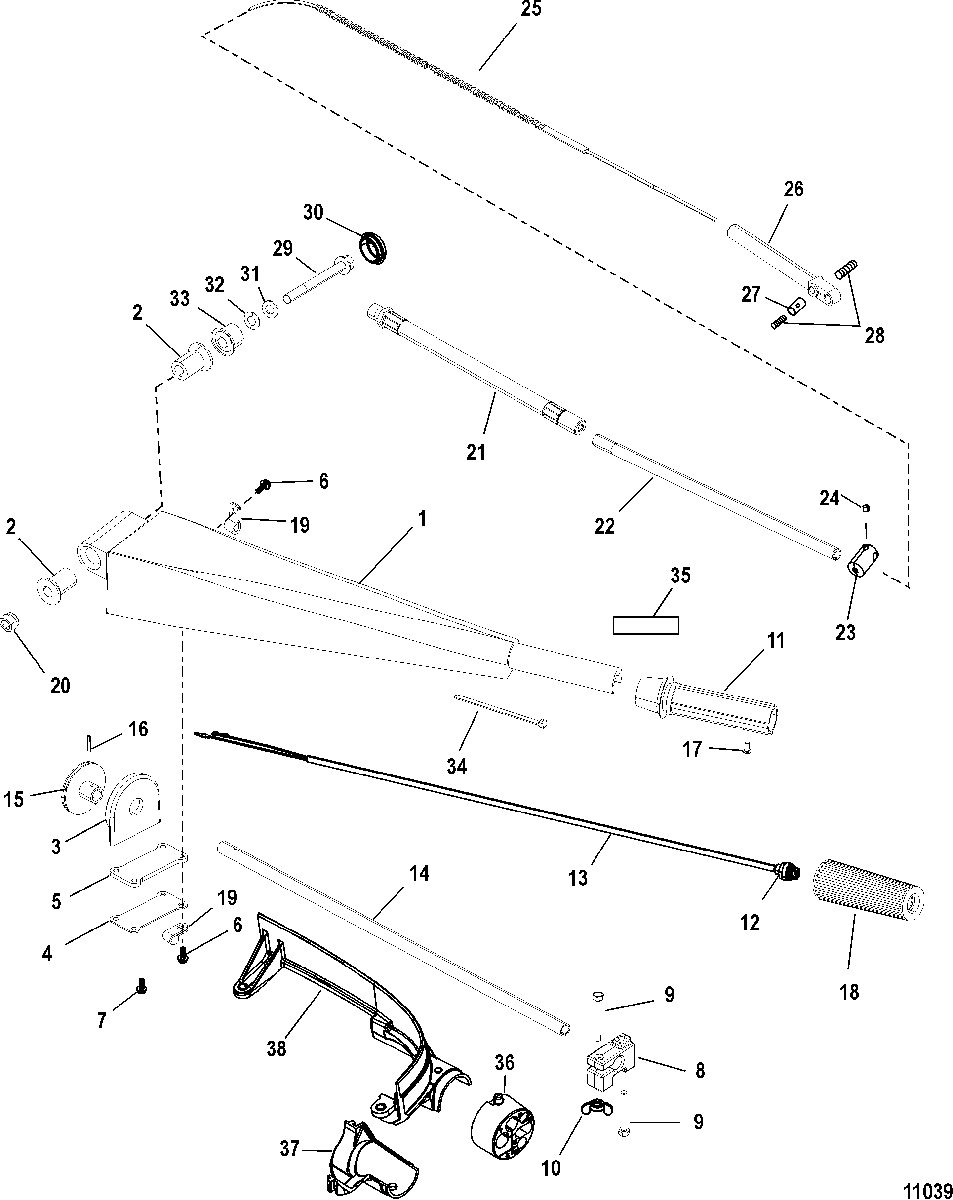

Steering Handle Kit для Mercury - 115 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885

  • №
    Артикул
    Название
  • -
    896648A09 STEERING HANDLE KIT, Tiller
    STEERING HANDLE KIT, Tiller
  • 1
    12020A3 HANDLE ASSEMBLY, Steering Arm
    HANDLE ASSEMBLY, Steering Arm
  • NS
    22-74036 FITTING, Grease
    FITTING, Grease
  • 2
    23-42992T02 BUSHING
    BUSHING
  • 3
    48414 HOUSING
    HOUSING
  • 4
    48519 PLATE
    PLATE
  • 5
    27-48518 GASKET
    GASKET
  • 6
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 7
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 8
    54-889729 CLAMP
    CLAMP
  • 9
    10-40007112 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 10
    11-816874 WING NUT, (#10-32)
    WING NUT, (#10-32)
  • 11
    87-823609A15 SWITCH KIT, Stop - Throttle Handle
    SWITCH KIT, Stop - Throttle Handle
  • 12
    87-8M0104612 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 13
    NSS NOT SOLD SEPARATE, Insulator
    NOT SOLD SEPARATE, Insulator
  • 14
    12018A4 TUBE ASSEMBLY, Throttle
    TUBE ASSEMBLY, Throttle
  • 15
    NSS NOT SOLD SEPARATE, Drive Wheel
    NOT SOLD SEPARATE, Drive Wheel
  • 16
    NSS NOT SOLD SEPARATE, Roll Pin
    NOT SOLD SEPARATE, Roll Pin
  • 17
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 18
    99589003 GRIP
    GRIP
  • 19
    54-648552 CLIP
    CLIP
  • 20
    11-40140 NUT, (M10)
    NUT, (M10)
  • 21
    8885241 CONDUIT, (9.03 Inches)
    CONDUIT, (9.03 Inches)
  • 22
    895665 GUIDE TUBE
    GUIDE TUBE
  • 23
    89578 BARREL, Throttle Actuator
    BARREL, Throttle Actuator
  • 24
    10-824081 SET SCREW, (#10-32)
    SET SCREW, (#10-32)
  • 25
    12019003 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 26
    43433 GUIDE, Cable
    GUIDE, Cable
  • 27
    20007 ANCHOR, Cable End
    ANCHOR, Cable End
  • 28
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 29
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
  • 30
    48416T CAP
    CAP
  • 31
    12-4002319 WASHER
    WASHER
  • 32
    12-12024 WASHER, (.402 x .787 x .039 Bellevi)
    WASHER, (.402 x .787 x .039 Bellevi)
  • 33
    23-146011 SPACER
    SPACER
  • 34
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 35
    NSS NOT SOLD SEPARATE, Decal-Throttle
    NOT SOLD SEPARATE, Decal-Throttle
  • 36
    25-896641 GROMMET, Hose Cable
    GROMMET, Hose Cable
  • 37
    8M0008289 COVER, Cable-Upper
    COVER, Cable-Upper
  • 38
    8M0000484 COVER, Cable-Lower
    COVER, Cable-Lower
