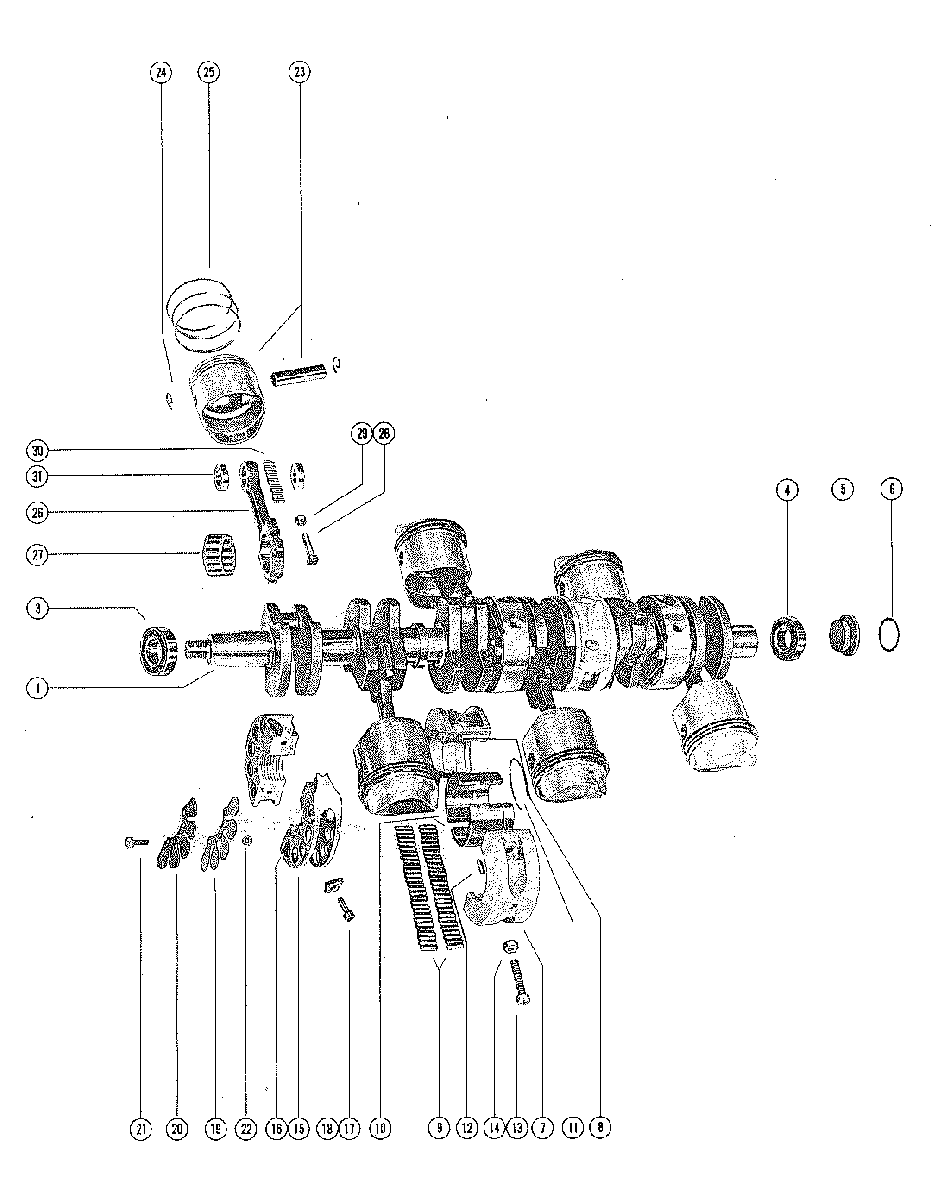

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 115 (6 CYL.) 7131213 THRU 7147987
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
665800 "O" RING, CARRIER"O" RING, CARRIER
-
7535-5397A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1411-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
15540-5266T5 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1934-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2110-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
2211-53153 NUT, REED STOP SCREWNUT, REED STOP SCREW
-
23774-9137A12 PISTON PIN ASSEMBLYPISTON PIN ASSEMBLY
-
2453-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2539-78816A12 RING, PISTONRING, PISTON
-
26624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2911-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
3029-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--774-9137A13 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
--39-78811A12 RING, PISTON OVERSIZEDRING, PISTON OVERSIZED
