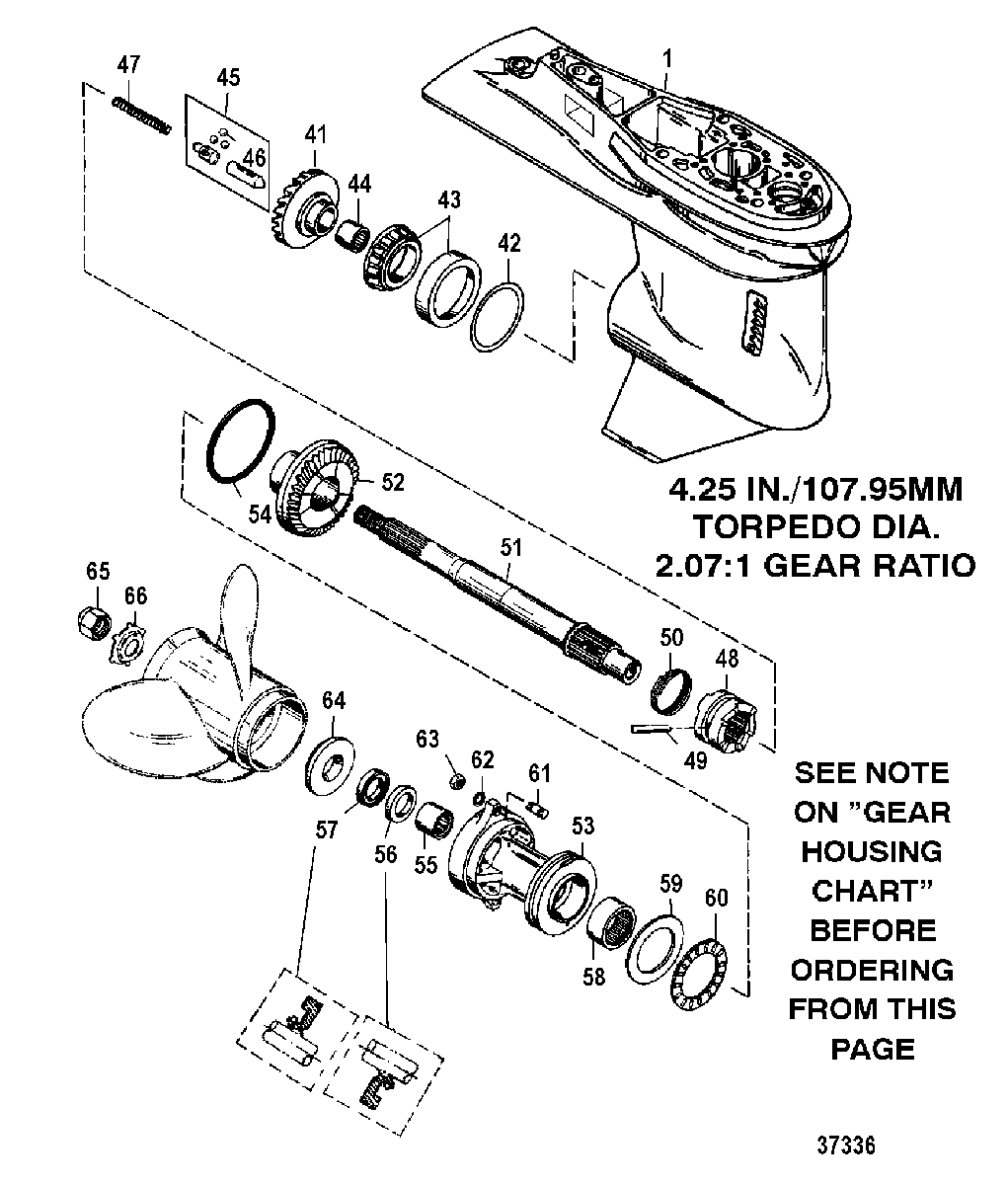

GEAR HOUSING(PROP SHAFT)(6 JAW REVERSE CLUTCH) для Mercury - 115 (4 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
(BLACK)GEAR HOUSING ASSEMBLY, Basic
(BLACK) -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
(GRAY)GEAR HOUSING ASSEMBLY, Basic
(GRAY) -
4143-881260A5 GEAR KIT, Forward (29 TEETH)GEAR KIT, Forward (29 TEETH)
-
4143-859472A3 GEAR KIT, Forward (30 TEETH)
(HIGH ALTITUDE- 2.31:1 RATIO)GEAR KIT, Forward (30 TEETH)
(HIGH ALTITUDE- 2.31:1 RATIO) -
4215-8M0063266 SHIM SETSHIM SET
-
4331-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4431-30895T BEARING, NeedleBEARING, Needle
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4630-44530 BALLBALL
-
4724-850327 SPRINGSPRING
-
4852-850048T CLUTCHCLUTCH
-
4917-8M0100263 PIN, CrossPIN, Cross
-
5024-30893 SPRINGSPRING
-
5144-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
5243-850036T GEAR, Reverse (29 Teeth)GEAR, Reverse (29 Teeth)
-
5243-850034T GEAR, Reverse (30 Teeth)
(HIGH ALTITUDE- 2.31:1 RATIO)GEAR, Reverse (30 Teeth)
(HIGH ALTITUDE- 2.31:1 RATIO) -
5312596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5425-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
5531-30956T BEARING, NeedleBEARING, Needle
-
5626-70080 SEAL, Oil (INNER)SEAL, Oil (INNER)
-
5726-70081 SEAL, Oil (OUTER)SEAL, Oil (OUTER)
-
5831-12578T BEARING, NeedleBEARING, Needle
-
5912-12577 THRUST WASHERTHRUST WASHER
-
6031-12576 BEARING, ThrustBEARING, Thrust
-
6116-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
6212-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
6311-401378 NUT, (M8)NUT, (M8)
-
6413191Q01 THRUST WASHER
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSINGTHRUST WASHER
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSING -
6511-52707Q1 PROP NUT KIT, (.750-16)
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSINGPROP NUT KIT, (.750-16)
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSING -
6614-816629Q TAB WASHER
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSINGTAB WASHER
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT GEAR HOUSING -
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-13461A99 GASKET SETGASKET SET
