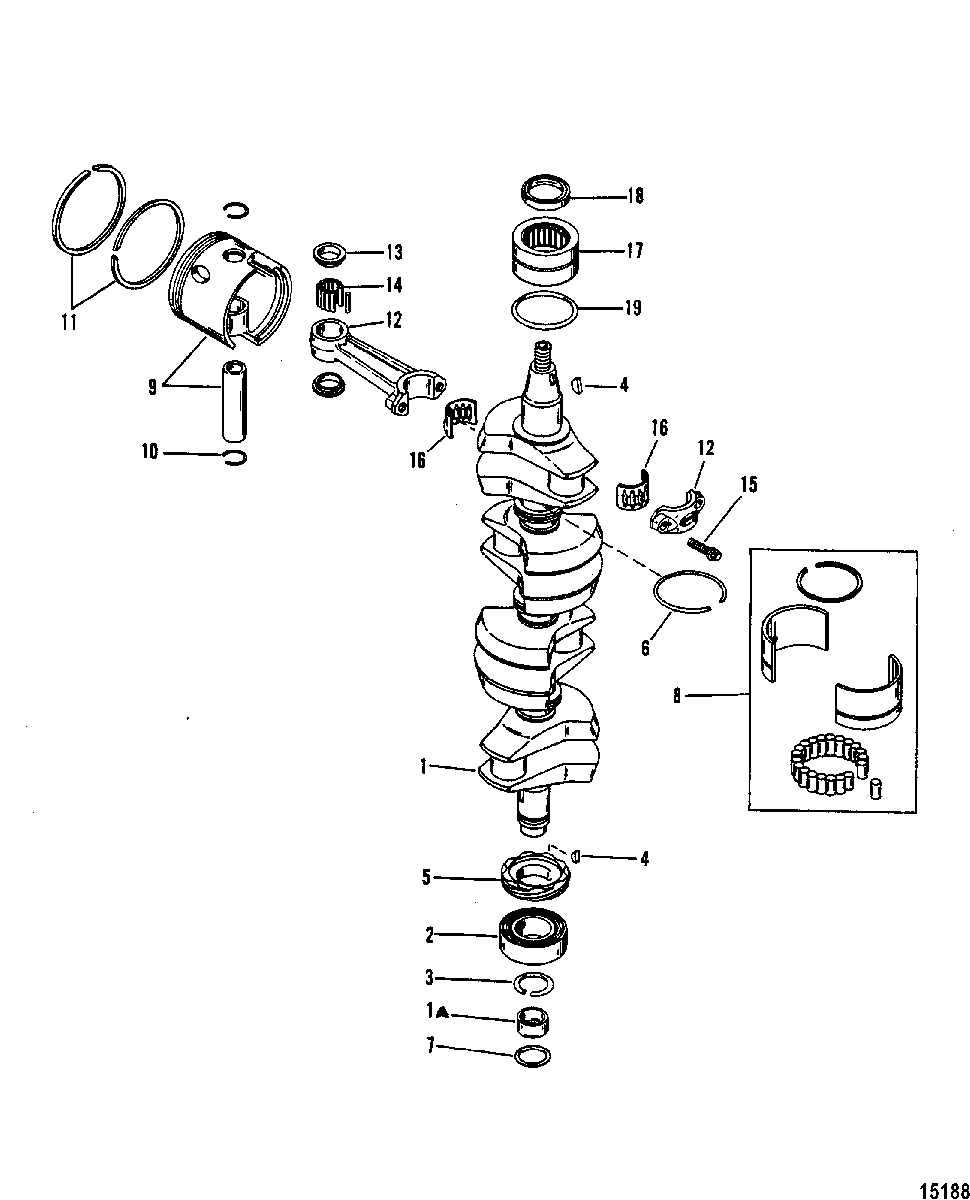

Crankshaft, Pistons And Connecting Rods (#638-8532--1) для Mercury - 115 (4 CYL.) 0C100000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    473-9193T3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 1A
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 2
    30-43011T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 3
    53-93412 RING, Retaining, Old Design
    RING, Retaining, Old Design
  • 4
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 5
    43-43019A1 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 6
    39-42079A4 RING ASSEMBLY
    RING ASSEMBLY
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    42943A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 9
    777-9009T13 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 9
    777-9009A6 PISTON ASSEMBLY
    (.015 0versize)
    PISTON ASSEMBLY
    (.015 0versize)
  • 9
    777-9009A7 PISTON ASSEMBLY
    (.030 Oversize)
    PISTON ASSEMBLY
    (.030 Oversize)
  • 10
    53-857196 RING, Lock
    RING, Lock
  • 11
    39-96170A12 RING SET, Piston
    (Standard)
    RING SET, Piston
    (Standard)
  • 11
    39-96170A3 RING SET, Piston
    (.015 Oversize)
    RING SET, Piston
    (.015 Oversize)
  • 11
    39-96170A4 RING SET, Piston
    (.030 Oversize)
    RING SET, Piston
    (.030 Oversize)
  • 12
    638-9002A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 13
    12-8M0032839 WASHER
    WASHER
  • 14
    29-88258001 NEEDLE, Roller Bearing
    NEEDLE, Roller Bearing
  • 15
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 16
    31-844338A01 BEARING/CAGE KIT
    BEARING/CAGE KIT
  • 17
    31-43013T3 BEARING ASSEMBLY, Roller, Upper
    BEARING ASSEMBLY, Roller, Upper
  • 18
    26-43993 SEAL, Oil
    SEAL, Oil
  • 19
    25-823683 O-RING
    O-RING
  • -
    17791T92 POWERHEAD ASSEMBLY, Complete
    (IncludesCylinder Block And Crankcase, Pistons, Connecting Rods And Bearings, ETC.
    POWERHEAD ASSEMBLY, Complete
    (IncludesCylinder Block And Crankcase, Pistons, Connecting Rods And Bearings, ETC.
