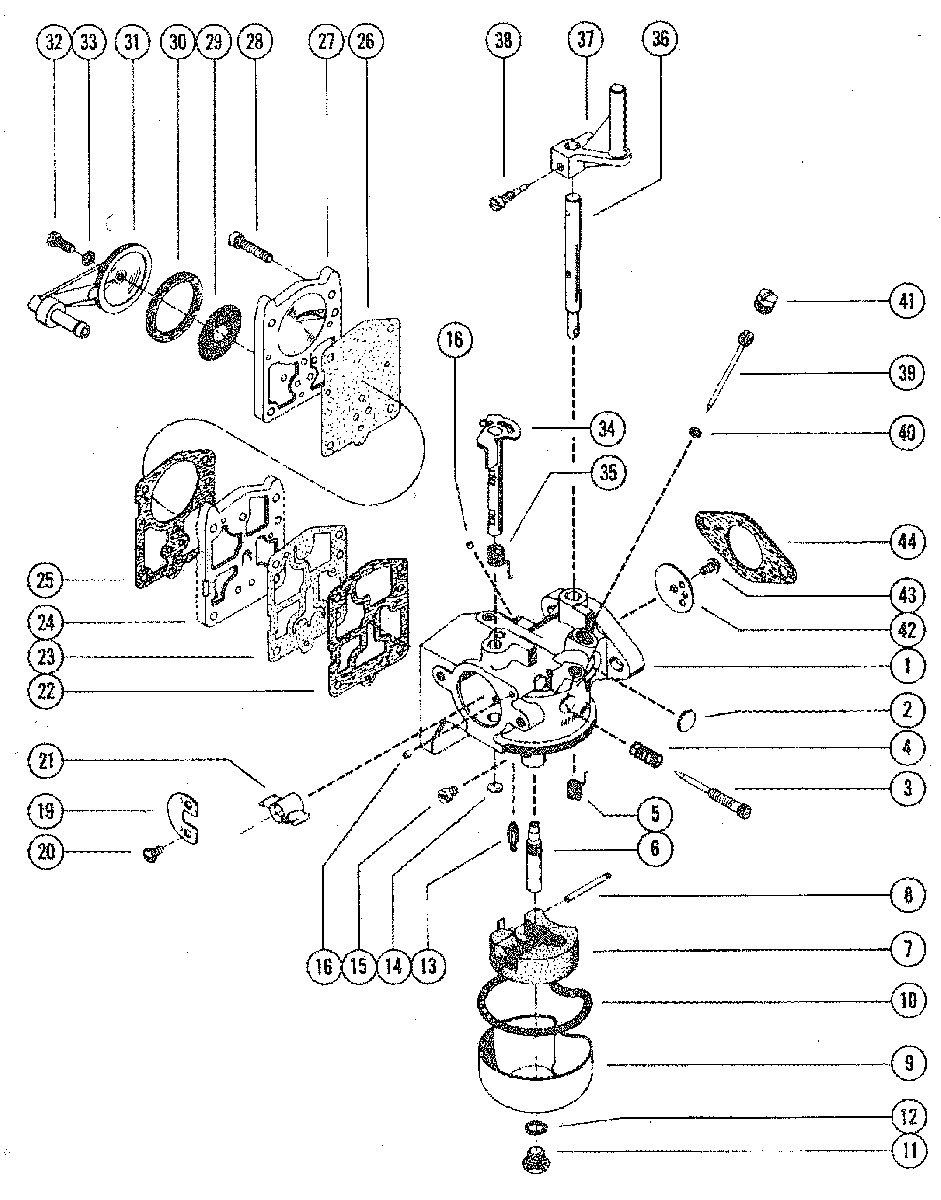

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 110 9165303 THRU 9217755
-
№АртикулНазвание
-
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
290-8M0143356 WELCH PLUG, BODY CHANNEL (LARGE)WELCH PLUG, BODY CHANNEL (LARGE)
-
390-8M0143356 SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
490-8M0143356 SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
590-8M0143356 SPRING, RETURN - THROTTLE SHAFTSPRING, RETURN - THROTTLE SHAFT
-
690-8M0143356 MAIN NOZZLEMAIN NOZZLE
-
71395-9293 FLOATFLOAT
-
890-8M0143356 PIN, FLOATPIN, FLOAT
-
91399-5127 FUEL BOWLFUEL BOWL
-
1090-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
111399-5128 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
1290-8M0143356 GASKET, FUEL BOWL SCREWGASKET, FUEL BOWL SCREW
-
131399-6141 INLET NEEDLE AND SPRINGINLET NEEDLE AND SPRING
-
1490-8M0143356 WELCH PLUG, BODY CHANNEL (SMALL)WELCH PLUG, BODY CHANNEL (SMALL)
-
151399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
1690-8M0143356 PLUG, BODY CHANNELPLUG, BODY CHANNEL
-
191399-7274 CHOKE SHUTTERCHOKE SHUTTER
-
2010-23035 SCREW, CHOKE SHUTTER TO CHOKE SHAFTSCREW, CHOKE SHUTTER TO CHOKE SHAFT
-
2169764 VENTURIVENTURI
-
2290-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2390-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
241399-5129 BODY FUEL PUMPBODY FUEL PUMP
-
2590-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2690-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
271399-5131 BODY, STRAINERBODY, STRAINER
-
281395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
291399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
3090-8M0143356 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3199941 COVER ASSEMBLY, STRAINER (INLET)COVER ASSEMBLY, STRAINER (INLET)
-
3290-8M0143356 SCREW, STRAINER COVER TO BODYSCREW, STRAINER COVER TO BODY
-
3390-8M0143356 GASKET, STRAINER COVER TO SCREWGASKET, STRAINER COVER TO SCREW
-
341399-5827 CHOKE SHAFTCHOKE SHAFT
-
3590-8M0143356 SPRING, RETURN - CHOKE SHAFTSPRING, RETURN - CHOKE SHAFT
-
361399-5133 THROTTLE SHAFTTHROTTLE SHAFT
-
3763646 LEVER, THROTTLELEVER, THROTTLE
-
381395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
3990-8M0143356 IDLE TUBEIDLE TUBE
-
4090-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
4110-23178 SCREW, PLUG - IDLE TUBESCREW, PLUG - IDLE TUBE
-
421399-5759 THROTTLE SHUTTERTHROTTLE SHUTTER
-
4390-8M0143356 SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTSCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4427-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
--1399-5135 GASKET SETGASKET SET
-
--1399-879194026 REPAIR PARTS KITREPAIR PARTS KIT
-
--1399-5137 DIAPHRAGM AND GASKET KITDIAPHRAGM AND GASKET KIT
