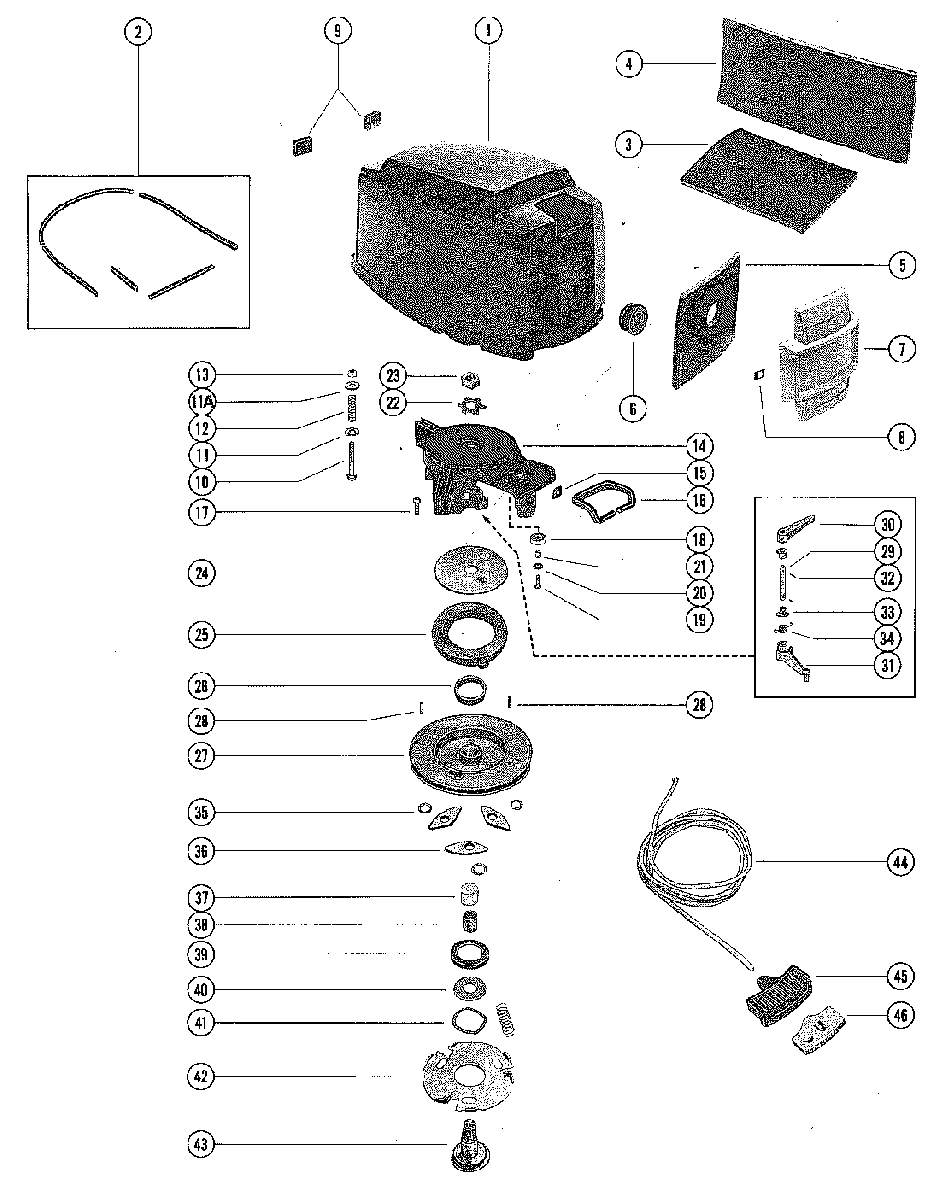

TOP COWL AND STARTER ASSEMBLY для Mercury - 110 8015040 THRU 8050624

  • №
    Артикул
    Название
  • 1
    2147-5652A5 TOP COWL ASSEMBLY
    UNITED STATES 3795658 THRU 4078999
    AUSTRALIA 8015040 THRU 8023989
    BELGIUM 9041439 THRU 9068373
    CANADA 7027323 THRU 7042122
    TOP COWL ASSEMBLY
    UNITED STATES 3795658 THRU 4078999
    AUSTRALIA 8015040 THRU 8023989
    BELGIUM 9041439 THRU 9068373
    CANADA 7027323 THRU 7042122
    0 ₽
  • 1
    2147-5652A5 TOP COWL ASSEMBLY
    UNITED STATES 4079000 THRU 4126459
    AUSTRALIA 8023990 THRU 8028439
    BELGIUM 9068374 THRU 9078138
    CANADA 7042123 THRU 7049107
    TOP COWL ASSEMBLY
    UNITED STATES 4079000 THRU 4126459
    AUSTRALIA 8023990 THRU 8028439
    BELGIUM 9068374 THRU 9078138
    CANADA 7042123 THRU 7049107
    0 ₽
  • 1
    2147-5565A4 TOP COWL ASSEMBLY
    UNITED STATES 4126460 THRU 4387436
    AUSTRALIA 8028440 THRU 8037874
    BELGIUM 9078139 THRU 9113964
    CANADA 7049108 THRU 7074272
    TOP COWL ASSEMBLY
    UNITED STATES 4126460 THRU 4387436
    AUSTRALIA 8028440 THRU 8037874
    BELGIUM 9078139 THRU 9113964
    CANADA 7049108 THRU 7074272
    0 ₽
  • 1
    2160-7264A10 TOP COWL ASSEMBLY
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    TOP COWL ASSEMBLY
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 2
    654893 SEAL, TOP COWL (16 1/2")
    SEAL, TOP COWL (16 1/2")
    0 ₽
  • 3
    66942 BLANKET, TOP COWL - TOP
    BLANKET, TOP COWL - TOP
    0 ₽
  • 4
    85544 BLANKET, TOP COWL - SIDE
    BLANKET, TOP COWL - SIDE
    0 ₽
  • 5
    69522 BLANKET, TOP COWL - FRONT
    UNITED STATES 3795658 THRU 4126459
    AUSTRALIA 8015040 THRU 8028439
    BELGIUM 9041439 THRU 9078138
    CANADA 7027323 THRU 7049107
    BLANKET, TOP COWL - FRONT
    UNITED STATES 3795658 THRU 4126459
    AUSTRALIA 8015040 THRU 8028439
    BELGIUM 9041439 THRU 9078138
    CANADA 7027323 THRU 7049107
    0 ₽
  • 5
    69522 BLANKET, TOP COWL - FRONT
    UNITED STATES 4126460 AND UP
    AUSTRALIA 8028440 AND UP
    BELGIUM 9078139 AND UP
    CANADA 7049108 AND UP
    BLANKET, TOP COWL - FRONT
    UNITED STATES 4126460 AND UP
    AUSTRALIA 8028440 AND UP
    BELGIUM 9078139 AND UP
    CANADA 7049108 AND UP
    0 ₽
  • 6
    25-39086 GROMMET, COWL LATCH - TOP COWL
    GROMMET, COWL LATCH - TOP COWL
    230 ₽
  • 7
    71502 COVER, FRONT
    COVER, FRONT
    0 ₽
  • 8
    11-65517 NUT, SPEED - FRONT COVER TO COWL
    NUT, SPEED - FRONT COVER TO COWL
    0 ₽
  • 9
    69346 BUMPER, COWL - REAR
    BUMPER, COWL - REAR
    0 ₽
  • 10
    17-72856 CATCH, TOP COWL
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
    CATCH, TOP COWL
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
    0 ₽
  • 10
    17-72856 PIN, TOP COWL CATCH
    UNITED STATES 4304785 AND UP
    AUSTRALIA 8034895 AND UP
    BELGIUM 9101514 AND UP
    CANADA 7063748 AND UP
    PIN, TOP COWL CATCH
    UNITED STATES 4304785 AND UP
    AUSTRALIA 8034895 AND UP
    BELGIUM 9101514 AND UP
    CANADA 7063748 AND UP
    0 ₽
  • 11
    12-65567 WASHER, TOP COWL CATCH (LOWER)
    WASHER, TOP COWL CATCH (LOWER)
    200 ₽
  • 11A
    12-71055 WASHER, TOP COWL CATCH (UPPER)
    WASHER, TOP COWL CATCH (UPPER)
    130 ₽
  • 12
    24-65553 SPRING, COMPRESSION - COWL CATCH
    SPRING, COMPRESSION - COWL CATCH
    0 ₽
  • 13
    11-20184 NUT, COWL CATCH TO TOP COWL
    NUT, COWL CATCH TO TOP COWL
    120 ₽
  • 14
    65660A3 STARTER HOUSING ASSEMBLY
    UNITED STATES 3795658 THRU 4126459
    AUSTRALIA 8015040 THRU 8028439
    BELGIUM 9041439 THRU 9078138
    CANADA 7027323 THRU 7049107
    STARTER HOUSING ASSEMBLY
    UNITED STATES 3795658 THRU 4126459
    AUSTRALIA 8015040 THRU 8028439
    BELGIUM 9041439 THRU 9078138
    CANADA 7027323 THRU 7049107
    0 ₽
  • 14
    73342A4 STARTER HOUSING ASSEMBLY
    UNITED STATES 4126460 THRU 4304784
    AUSTRALIA 8028440 THRU 8034894
    BELGIUM 9078139 THRU 9101513
    CANADA 7049108 THRU 7063747
    STARTER HOUSING ASSEMBLY
    UNITED STATES 4126460 THRU 4304784
    AUSTRALIA 8028440 THRU 8034894
    BELGIUM 9078139 THRU 9101513
    CANADA 7049108 THRU 7063747
    0 ₽
  • 14
    73342A4 STARTER HOUSING ASSEMBLY
    UNITED STATES 4304785 THRU 4387436
    AUSTRALIA 8034895 THRU 8037874
    BELGIUM 9101514 THRU 9113964
    CANADA 7063748 THRU 7074272
    STARTER HOUSING ASSEMBLY
    UNITED STATES 4304785 THRU 4387436
    AUSTRALIA 8034895 THRU 8037874
    BELGIUM 9101514 THRU 9113964
    CANADA 7063748 THRU 7074272
    0 ₽
  • 14
    91871A1 STARTER HOUSING ASSEMBLY
    SEE NOTE 1 IN BLOCK COMMENTS UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    STARTER HOUSING ASSEMBLY
    SEE NOTE 1 IN BLOCK COMMENTS UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 15
    57821 INSERT, ROPE GUIDE - STARTER HOUSING
    INSERT, ROPE GUIDE - STARTER HOUSING
    0 ₽
  • 16
    654991 SEAL, STARTER HOUSING TO TOP COWL
    SEAL, STARTER HOUSING TO TOP COWL
    0 ₽
  • 17
    10-72862 SCREW, STARTER HOUSING TO CRANKCASE (1")
    SCREW, STARTER HOUSING TO CRANKCASE (1")
    0 ₽
  • 18
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
    1 670 ₽
  • 19
    10-28789 SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
    SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
    0 ₽
  • 20
    12-22887 WASHER, CABLE PULLEY SCREW
    WASHER, CABLE PULLEY SCREW
    140 ₽
  • 21
    23-309772 SPACER, CABLE PULLEY
    SPACER, CABLE PULLEY
    150 ₽
  • 22
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
    140 ₽
  • 23
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    230 ₽
  • 24
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
    0 ₽
  • 25
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
    2 880 ₽
  • 26
    23-28912 BUSHING, STARTER SPRING GUIDE
    BUSHING, STARTER SPRING GUIDE
    0 ₽
  • 27
    50-93696A2 STARTER SHEAVE ASSEMBLY
    UNITED STATES 3795658 THRU 4387436
    AUSTRALIA 8015040 THRU 8037874
    BELGIUM 9041439 THRU 9113964
    CANADA 7027323 THRU 7074272
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 3795658 THRU 4387436
    AUSTRALIA 8015040 THRU 8037874
    BELGIUM 9041439 THRU 9113964
    CANADA 7027323 THRU 7074272
    0 ₽
  • 28
    17-22896 PIN, RETAINER - STARTER CABLE
    UNITED STATES 3795658 THRU 4387436
    AUSTRALIA 8015040 THRU 8037874
    BELGIUM 9041439 THRU 9113964
    CANADA 7027323 THRU 7074272
    PIN, RETAINER - STARTER CABLE
    UNITED STATES 3795658 THRU 4387436
    AUSTRALIA 8015040 THRU 8037874
    BELGIUM 9041439 THRU 9113964
    CANADA 7027323 THRU 7074272
    0 ₽
  • 27
    50-93696A2 STARTER SHEAVE ASSEMBLY
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    STARTER SHEAVE ASSEMBLY
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 28
    17-22896 PIN, RETAINER - STARTER CABLE
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    PIN, RETAINER - STARTER CABLE
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 29
    74359 SHAFT, INTERLOCK
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    SHAFT, INTERLOCK
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 30
    74353 LEVER, LOCK
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    LEVER, LOCK
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 31
    74351 LEVER, FOLLOWER
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    LEVER, FOLLOWER
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 32
    17-38489 ROLL PIN, INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    ROLL PIN, INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    290 ₽
  • 33
    23-26856 BUSHING, NYLON - INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    BUSHING, NYLON - INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    130 ₽
  • 34
    24-74347 SPRING, TORSION - INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    SPRING, TORSION - INTERLOCK SHAFT
    UNITED STATES 4387437 AND UP
    AUSTRALIA 8037875 AND UP
    BELGIUM 9113965 AND UP
    CANADA 7074273 AND UP
    0 ₽
  • 35
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
    150 ₽
  • 36
    30596 PAWL, STARTER
    PAWL, STARTER
    0 ₽
  • 37
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
    0 ₽
  • 38
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
    0 ₽
  • 39
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    0 ₽
  • 40
    12-35559 WASHER, SHEAVE SAHFT RETAINER
    WASHER, SHEAVE SAHFT RETAINER
    270 ₽
  • 41
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
    280 ₽
  • 42
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
    2 980 ₽
  • 43
    35558 SHAFT, SHEAVE
    SHAFT, SHEAVE
    5 090 ₽
  • 44
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
    1 030 ₽
  • 45
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
    1 530 ₽
  • 46
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
    2 240 ₽
  • 47
    24-45823 SPRING
    SPRING
    0 ₽
