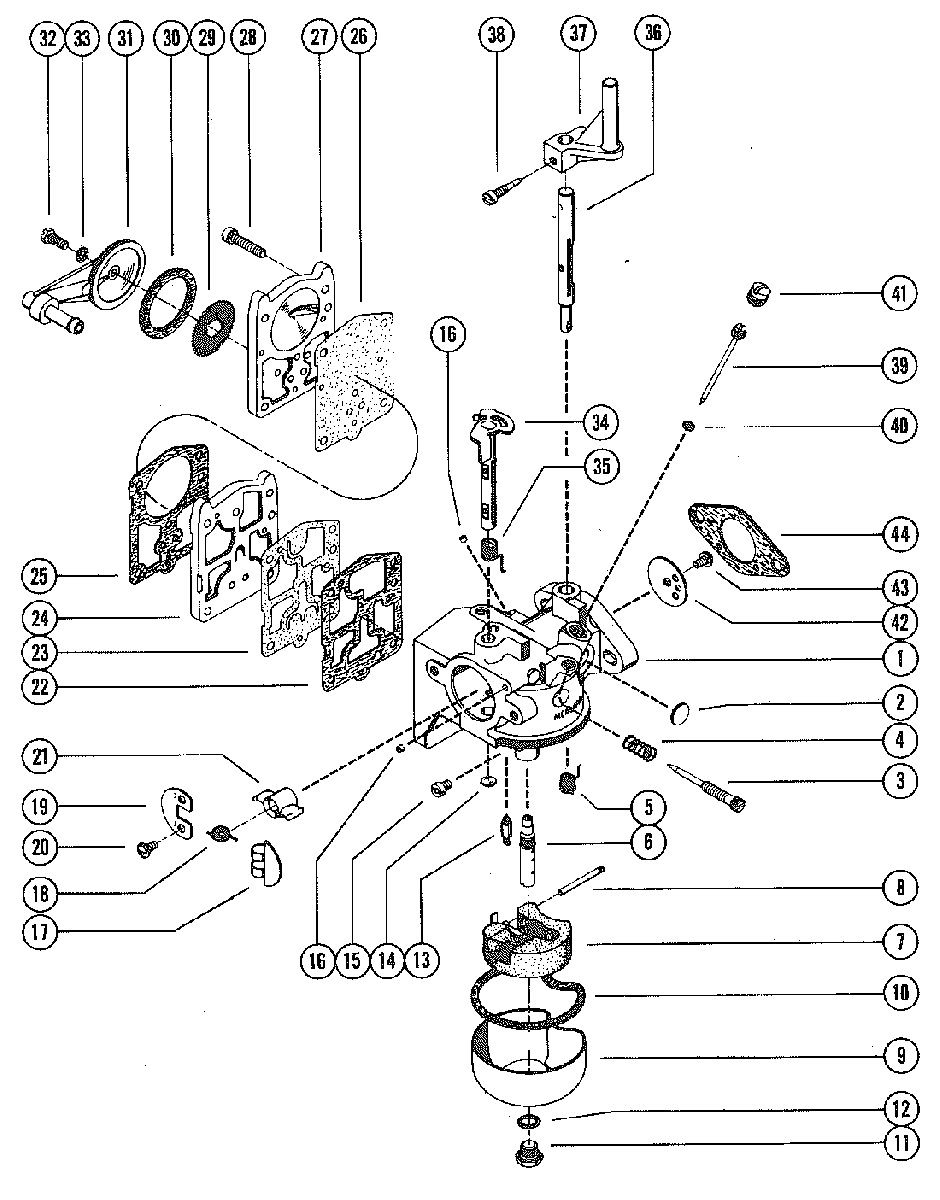

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 110 8015040 THRU 8050624
-
№АртикулНазвание
-
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107 -
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4126460 THRU 4304784
AUSTRALIA 8028440 THRU 8034894
BELGIUM 9078139 THRU 9101513
CANADA 7049108 THRU 7063747CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4126460 THRU 4304784
AUSTRALIA 8028440 THRU 8034894
BELGIUM 9078139 THRU 9101513
CANADA 7049108 THRU 7063747 -
11364-8782A13 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4304785 AND UP
AUSTRALIA 8034895 AND UP
BELGIUM 9101514 AND UP
CANADA 7063748 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4304785 AND UP
AUSTRALIA 8034895 AND UP
BELGIUM 9101514 AND UP
CANADA 7063748 AND UP -
290-8M0143356 WELCH PLUG, BODY CHANNEL (LARGE)WELCH PLUG, BODY CHANNEL (LARGE)
-
390-8M0143356 SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
490-8M0143356 SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
590-8M0143356 SPRING, RETURN - THROTTLE SHAFTSPRING, RETURN - THROTTLE SHAFT
-
690-8M0143356 MAIN NOZZLEMAIN NOZZLE
-
71395-9293 FLOATFLOAT
-
890-8M0143356 PIN, FLOAT RETAININGPIN, FLOAT RETAINING
-
91399-5127 FUEL BOWLFUEL BOWL
-
1090-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
111399-5128 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
1290-8M0143356 GASKET, FUEL BOWL SCREWGASKET, FUEL BOWL SCREW
-
131395-9022 INLET NEEDLE AND SPRING
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122INLET NEEDLE AND SPRING
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
131399-6141 INLET NEEDLE AND SPRING
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UPINLET NEEDLE AND SPRING
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UP -
1490-8M0143356 WELCH PLUG, BODY CHANNEL (SMALL)WELCH PLUG, BODY CHANNEL (SMALL)
-
151399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
1690-8M0143356 PLUG, BODY CHANNELPLUG, BODY CHANNEL
-
171399-5122 VALVE, CHOKE RELIEF
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122VALVE, CHOKE RELIEF
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
181399-5195 SPRING, CHOKE RELIEF VALVE
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122SPRING, CHOKE RELIEF VALVE
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
191399-5125 CHOKE SHUTTER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122CHOKE SHUTTER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
191399-5756 CHOKE SHUTTER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UPCHOKE SHUTTER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UP -
2010-23035 SCREW, CHOKE SHUTTER TO CHOKE SHAFTSCREW, CHOKE SHUTTER TO CHOKE SHAFT
-
2163907 VENTURI
UNITED STATES 3795658 THRU 4126459
AUSTRALIA 8015040 THRU 8028439
BELGIUM 9041439 THRU 9078138
CANADA 7027323 THRU 7049107VENTURI
UNITED STATES 3795658 THRU 4126459
AUSTRALIA 8015040 THRU 8028439
BELGIUM 9041439 THRU 9078138
CANADA 7027323 THRU 7049107 -
2169764 VENTURI
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UPVENTURI
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UP -
2290-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2390-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
241399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
2590-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2690-8M0143356 DIAPHRAGM, GUEL PUMPDIAPHRAGM, GUEL PUMP
-
271399-5131 BODY STRAINERBODY STRAINER
-
281395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
291399-5758 SCREEN, STRAINER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122SCREEN, STRAINER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
291399-5758 SCREEN, STRAINER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UPSCREEN, STRAINER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UP -
3090-8M0143356 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3164194A1 COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
3199941 COVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UPCOVER ASSEMBLY, STRAINER (INLET)
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UP -
3290-8M0143356 SCREW, STRAINER COVER TO BODYSCREW, STRAINER COVER TO BODY
-
3390-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
341399-5124 CHOKE SHAFT
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122CHOKE SHAFT
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
341399-5755 CHOKE SHAFT
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107CHOKE SHAFT
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107 -
341399-5827 CHOKE SHAFT
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UPCHOKE SHAFT
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UP -
3590-8M0143356 SPRING RETURN - CHOKE SHAFTSPRING RETURN - CHOKE SHAFT
-
361399-5133 THROTTLE SHAFTTHROTTLE SHAFT
-
3763646 LEVER, THROTTLELEVER, THROTTLE
-
381395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
3990-8M0143356 IDLE TUBEIDLE TUBE
-
4090-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
4110-23178 SCREW, PLUG - IDLE TUBESCREW, PLUG - IDLE TUBE
-
421399-5749 THROTTLE SHUTTER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122THROTTLE SHUTTER
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
421399-5759 THROTTLE SHUTTER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UPTHROTTLE SHUTTER
UNITED STATES 4079000 AND UP
AUSTRALIA 8023990 AND UP
BELGIUM 9068374 AND UP
CANADA 7042123 AND UP -
4390-8M0143356 SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTSCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4427-63309 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
--1399-5135 GASKET SETGASKET SET
-
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122REPAIR PARTS KIT
UNITED STATES 3795658 THRU 4078999
AUSTRALIA 8015040 THRU 8023989
BELGIUM 9041439 THRU 9068373
CANADA 7027323 THRU 7042122 -
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107REPAIR PARTS KIT
UNITED STATES 4079000 THRU 4126459
AUSTRALIA 8023990 THRU 8028439
BELGIUM 9068374 THRU 9078138
CANADA 7042123 THRU 7049107 -
--1399-879194026 REPAIR PARTS KIT
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UPREPAIR PARTS KIT
UNITED STATES 4126460 AND UP
AUSTRALIA 8028440 AND UP
BELGIUM 9078139 AND UP
CANADA 7049108 AND UP -
--1399-5137 DIAPHRAGM AND GASKET KITDIAPHRAGM AND GASKET KIT
