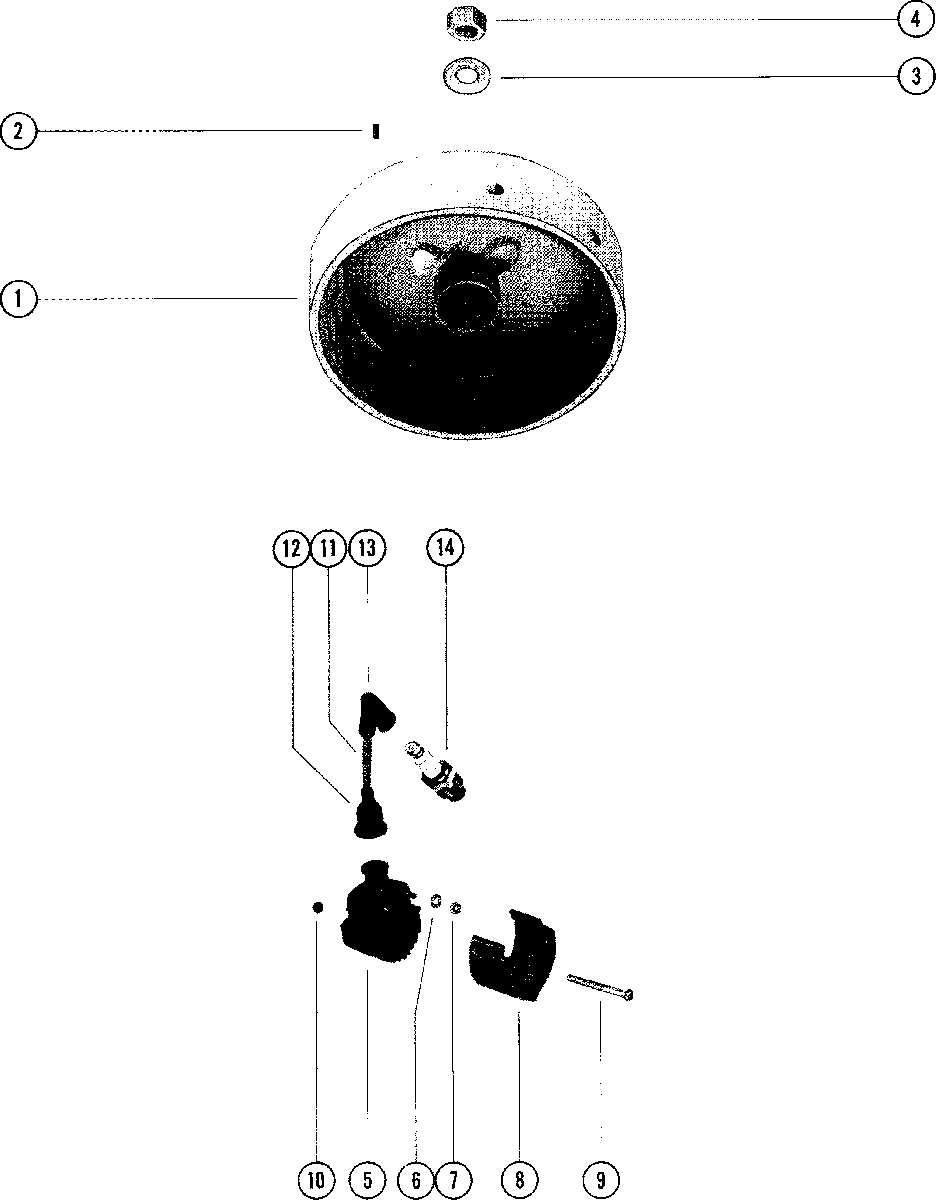

FLYWHEEL AND IGNITION COIL для Mercury - 110 7111348 THRU 7125387
-
№АртикулНазвание
-
1251-6105A1 FLYWHEEL ASSEMBLY (MANUAL)FLYWHEEL ASSEMBLY (MANUAL)
-
1251-6105A1 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
1251-6105A1 FLYWHEEL ASSEMBLY (BELGIUM)FLYWHEEL ASSEMBLY (BELGIUM)
-
228-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
312-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
411-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
5339-5288T2 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
613-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
711-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
866355 COVER, IGNITION COILCOVER, IGNITION COIL
-
910-72074 SCREW, COIL COVER TO REAR SUPPORT BRACKET (4 5/8")SCREW, COIL COVER TO REAR SUPPORT BRACKET (4 5/8")
-
1011-20110 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
1184-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
12332-2854T01 NIPPLE, IGNITION COILNIPPLE, IGNITION COIL
-
1385-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
1433-97182Q SPARK PLUG (AC#V40FFK)
BELGIUM AND CANADA USE C-33-75739 SPARK PLUG.SPARK PLUG (AC#V40FFK)
BELGIUM AND CANADA USE C-33-75739 SPARK PLUG.
