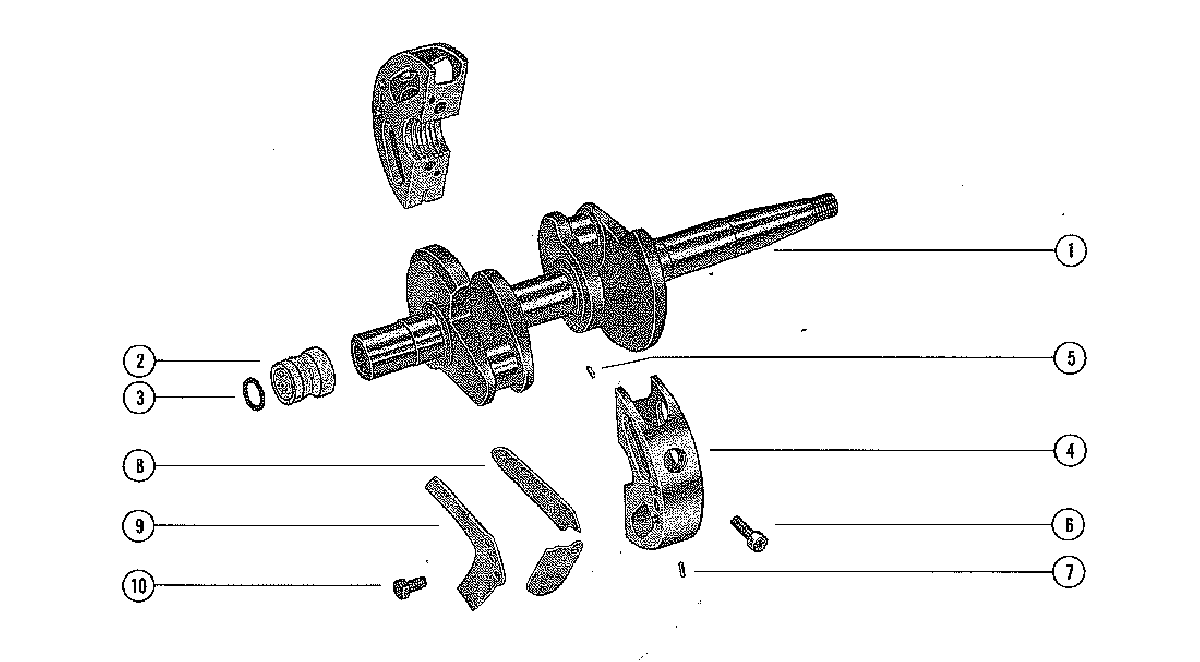

CRANKSHAFT AND MAIN BEARING ASSEMBLY для Mercury - 110 7027323 THRU 7111347

  • №
    Артикул
    Название
  • 1
    421-5275 CRANKSHAFT
    CRANKSHAFT
  • 2
    26-72793 CARRIER ASSEMBLY, SEAL CRANKSHAFT
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
    CARRIER ASSEMBLY, SEAL CRANKSHAFT
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
  • 3
    26-72793 SEAL, CRANKSHAFT CARRIER
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
    SEAL, CRANKSHAFT CARRIER
    UNITED STATES 3795658 THRU 4304784
    AUSTRALIA 8015040 THRU 8034894
    BELGIUM 9041439 THRU 9101513
    CANADA 7027323 THRU 7063747
  • 3
    26-72793 SEAL, CRANKSHAFT
    UNITED STATES 4304785 AND UP
    AUSTRALIA 8034895 AND UP
    BELGIUM 9101514 AND UP
    CANADA 7063748 AND UP
    SEAL, CRANKSHAFT
    UNITED STATES 4304785 AND UP
    AUSTRALIA 8034895 AND UP
    BELGIUM 9101514 AND UP
    CANADA 7063748 AND UP
  • 4
    550-8122A5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 5
    17-20032 PIN, DOWEL - MAIN BEARING
    PIN, DOWEL - MAIN BEARING
  • 5
    17-65855 PIN, DOWEL - REED LOCATING
    PIN, DOWEL - REED LOCATING
  • 6
    10-56781 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 7
    17-20032 PIN, DOWEL - MAIN BEARING TO BLOCK
    PIN, DOWEL - MAIN BEARING TO BLOCK
  • 8
    34-31942A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 9
    34-20053 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 10
    10-27304 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
