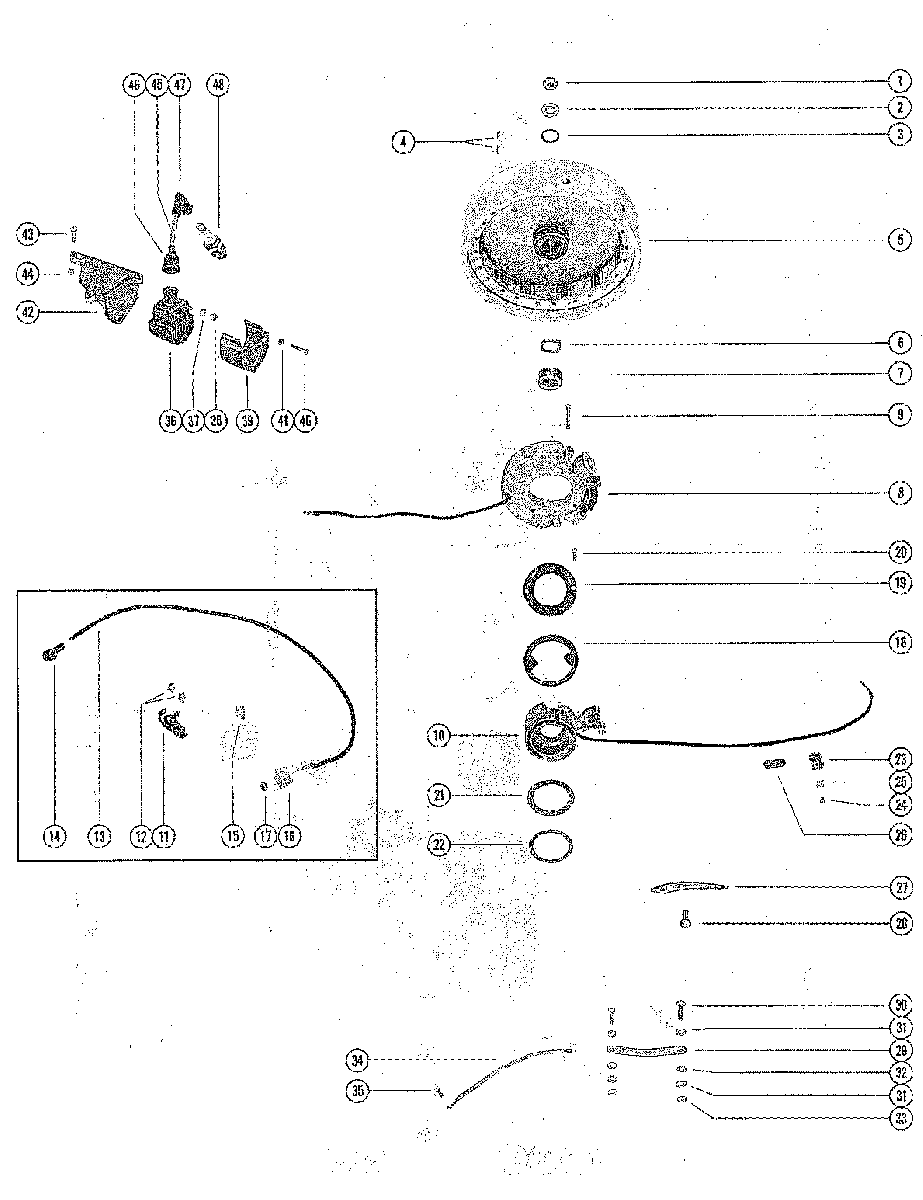

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 110 1865779 THRU 2798056
-
№АртикулНазвание
-
111-20696 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36245 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-62701 "O" RING, FLYWHEEL NUT"O" RING, FLYWHEEL NUT
-
428-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5239-4174A1 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
613-35629 WASHER, WAVE - CAM TENSIONWASHER, WAVE - CAM TENSION
-
7336-3928 CAM, BREAKERCAM, BREAKER
-
8336-3996A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
910-69560 SCREW, STATOR TO END CAP (1 1/4")SCREW, STATOR TO END CAP (1 1/4")
-
10336-3979A1 HOUSING ASSEMBLY, CONTACTHOUSING ASSEMBLY, CONTACT
-
11336-4318A2 BREAKER ASSEMBLY, CONTACT HOUSINGBREAKER ASSEMBLY, CONTACT HOUSING
-
1210-56266 SCREW, BREAKER TO CONTACT HOUSING (E/8")SCREW, BREAKER TO CONTACT HOUSING (E/8")
-
1356316A2 CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")CABLE ASSEMBLY, CONTACT HOUSING (WHITE - 17")
-
1356317A1 CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")CABLE ASSEMBLY, CONTACT HOUSING (BROWN - 17 3/4")
-
1438938 BOOT, CABLEBOOT, CABLE
-
15336-3989 WICK, CAM WIPER - CONTACT HOUSINGWICK, CAM WIPER - CONTACT HOUSING
-
16336-3981 INSULATOR, CABLE TO CONTACT HOUSINGINSULATOR, CABLE TO CONTACT HOUSING
-
1711-56325 NUT, CABLE INSULATORNUT, CABLE INSULATOR
-
18336-4429 HOLDER, CONTACT HOUSINGHOLDER, CONTACT HOUSING
-
19336-3988A1 COVER ASSEMBLY, CONTACT HOUSINGCOVER ASSEMBLY, CONTACT HOUSING
-
2010-56336 SCREW, COVER TO CONTACT HOUSING (1/2")SCREW, COVER TO CONTACT HOUSING (1/2")
-
2112-56077 WASHER, WEAR - CONTACT HOUSING TO UPPER BEARING HOUSINGWASHER, WEAR - CONTACT HOUSING TO UPPER BEARING HOUSING
-
2213-59145 WASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HOUSINGWASHER, WAVE - CONTACT HOUSING TO UPPER BEARING HOUSING
-
2354-26550 CLIP, CONTACT HOUSING AND STATOR LEADSCLIP, CONTACT HOUSING AND STATOR LEADS
-
2410-62568 SCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHINGSCREW, CONTACT HOUSING AND STATOR LEADS CLIP ATTACHING
-
258M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
2653-78201 BRACKET, IGNITION COIL LEADS CLAMPBRACKET, IGNITION COIL LEADS CLAMP
-
2654-56382 CLIP, IGNITION COIL LEADS CLAMPCLIP, IGNITION COIL LEADS CLAMP
-
2736000 CAM, THROTTLECAM, THROTTLE
-
2810-28707 SCREW, THROTTLE CAM TO CONTACT HOUSING (1/2")SCREW, THROTTLE CAM TO CONTACT HOUSING (1/2")
-
2934361 LINK, THROTTLELINK, THROTTLE
-
3010-34696 SCREW, THROTTLE LINK TO THROTTLE LEVER AND CONTACT HOUSING
(3/4")SCREW, THROTTLE LINK TO THROTTLE LEVER AND CONTACT HOUSING
(3/4") -
3112-34392 WASHER, THROTTLE LINK SCREWWASHER, THROTTLE LINK SCREW
-
3213-29720 WASHER, WAVE - THROTTLE LINK SCREWWASHER, WAVE - THROTTLE LINK SCREW
-
3311-28656 NUT, THROTTLE LINK SCREWNUT, THROTTLE LINK SCREW
-
3456757A1 JUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINKJUMPER WIRE ASSEMBLY, STATOR TO THROTTLE LINK
-
3510-8M0113176 SCREW, JUMPER WIRE ATTACHIING (5/16")SCREW, JUMPER WIRE ATTACHIING (5/16")
-
36336-4409A4 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
3713-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
3811-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
3956188 COVER, IGNITION COILCOVER, IGNITION COIL
-
4010-56543 SCREW, COIL COVER TO COIL MOUNTAIN BRACKET (2")SCREW, COIL COVER TO COIL MOUNTAIN BRACKET (2")
-
4111-27164 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
4256352 BRACKET, COIL SUPPORTBRACKET, COIL SUPPORT
-
4310-22968 SCREW, BRACKET TO CYLINDER BLOCK (1 1/4")SCREW, BRACKET TO CYLINDER BLOCK (1 1/4")
-
4310-64278 SCREW, BRACKET TO CYLINDER BLOCK (1")SCREW, BRACKET TO CYLINDER BLOCK (1")
-
4411-20184 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
4584-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
46332-2854T01 NIPPLE, IGNITION COILNIPPLE, IGNITION COIL
-
4785-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
4833-97182Q SPARK PLUG (AC #40FFK)SPARK PLUG (AC #40FFK)
