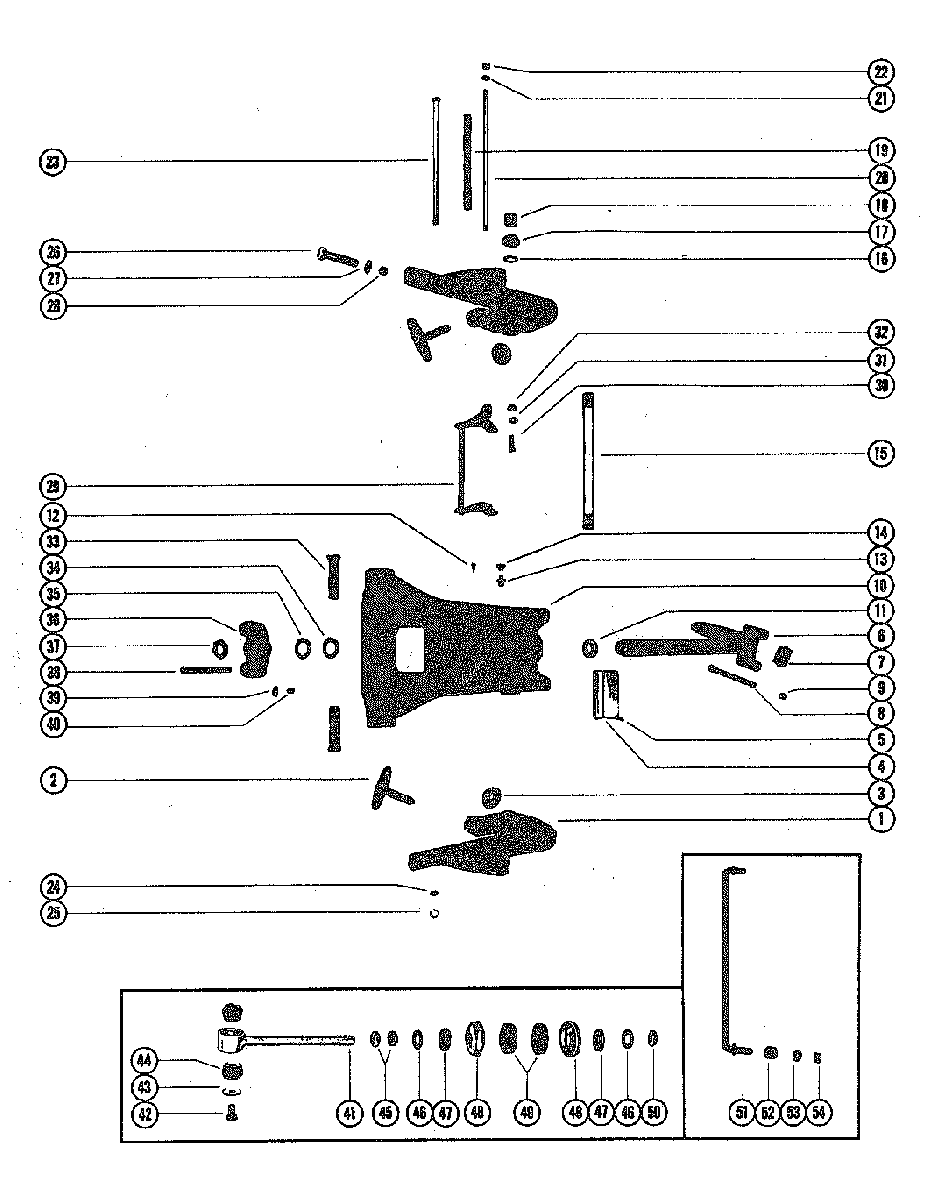

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 1000BP 2399698 THRU 2641854

  • №
    Артикул
    Название
  • 1
    1440-3296A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 5
    10-25612 SCREW, SERIAL PLATE TO SWIVEL BRACKET
    SCREW, SERIAL PLATE TO SWIVEL BRACKET
  • 6
    17-48883A1 SWIVEL PIN AND STEERING ARM ASSEMBLY
    SWIVEL PIN AND STEERING ARM ASSEMBLY
  • 7
    26-52924 SEAL, RUBBER - SWIVEL PIN
    SEAL, RUBBER - SWIVEL PIN
  • 8
    10-49373 BOLT, STEERING ARM TO UPPER MOUNT
    BOLT, STEERING ARM TO UPPER MOUNT
  • 9
    11-34933 NUT, STEERING ARM BOLT
    NUT, STEERING ARM BOLT
  • 10
    1453-4673A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 11
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 12
    10-47828 SCREW, DRIVE - SWIVEL BRACKET
    SCREW, DRIVE - SWIVEL BRACKET
  • 13
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 14
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 15
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 16
    12-52864 SHIM ASSEMBLY, CLAMP BRACKET TILT TUBE
    SHIM ASSEMBLY, CLAMP BRACKET TILT TUBE
  • 17
    11-858869 NUT, TILT TUBE FASTENTING
    NUT, TILT TUBE FASTENTING
  • 18
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 19
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 20
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 21
    12-24812 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 22
    11-862902 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 23
    10-49369 SCREW, TILT LOCK PIN (9-3/8")
    SCREW, TILT LOCK PIN (9-3/8")
  • 24
    12-37828 WASHER, TILT LOCK PIN SCREW
    WASHER, TILT LOCK PIN SCREW
  • 25
    11-82671013 NUT, TILT LOCK PIN SCREW
    NUT, TILT LOCK PIN SCREW
  • 26
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 27
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 28
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 29
    30126A1 TILT STOP LEVER ASSEMBLY
    TILT STOP LEVER ASSEMBLY
  • 30
    10-30128 SCREW, TILT STOP LEVER TO CLAMP BRACKET
    SCREW, TILT STOP LEVER TO CLAMP BRACKET
  • 31
    13-31030 WASHER, WAVE - TILT STOP LEVER SCREW
    WASHER, WAVE - TILT STOP LEVER SCREW
  • 32
    11-29250 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 33
    55-49577 PIN, LOWER EYE BOLT MOUNTING
    PIN, LOWER EYE BOLT MOUNTING
  • 34
    12-37429 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 35
    12-48926 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 36
    48884 YOKE, BOTTOM
    YOKE, BOTTOM
  • 37
    11-37424 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 38
    10-48924 SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3-1/2")
    SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3-1/2")
  • 39
    12-24501 WASHER, YOKE SCREW
    WASHER, YOKE SCREW
  • 40
    11-35000 NUT, YOKE SCREW
    NUT, YOKE SCREW
  • 41
    49982A1 EYE BOLT ASSEMBLY
    EYE BOLT ASSEMBLY
  • 42
    10-28450 SCREW, NYLOK - LOWER EYE BOLT MOUNTING PIN
    SCREW, NYLOK - LOWER EYE BOLT MOUNTING PIN
  • 43
    12-28421 WASHER, LOWER BUSHING RETAINER
    WASHER, LOWER BUSHING RETAINER
  • 44
    23-28198 BUSHING, RUBBER - EYE BOLT
    BUSHING, RUBBER - EYE BOLT
  • 45
    11-20739 NUT, EYE BOLT
    NUT, EYE BOLT
  • 46
    12-52601 WASHER, PLAIN - EYE BOLT
    WASHER, PLAIN - EYE BOLT
  • 47
    27-49985 GASKET, EYE BOLT (3/16" NEOPRENE)
    GASKET, EYE BOLT (3/16" NEOPRENE)
  • 48
    12-49983 WASHER, CUPPED - EYE BOLT
    WASHER, CUPPED - EYE BOLT
  • 49
    27-49984 GASKET, EYE BOLT (1/2" NEOPRENE)
    GASKET, EYE BOLT (1/2" NEOPRENE)
  • 50
    11-8M2014641 NUT, EYE BOLT
    NUT, EYE BOLT
  • 51
    52131 ROD, STEERING
    ROD, STEERING
  • 52
    23-52169 SLEEVE, STEERING ROD
    SLEEVE, STEERING ROD
  • 53
    12-20086 WASHER, STEERING ROD
    WASHER, STEERING ROD
  • 54
    11-8M0042636 NUT, STEERING ROD
    NUT, STEERING ROD
