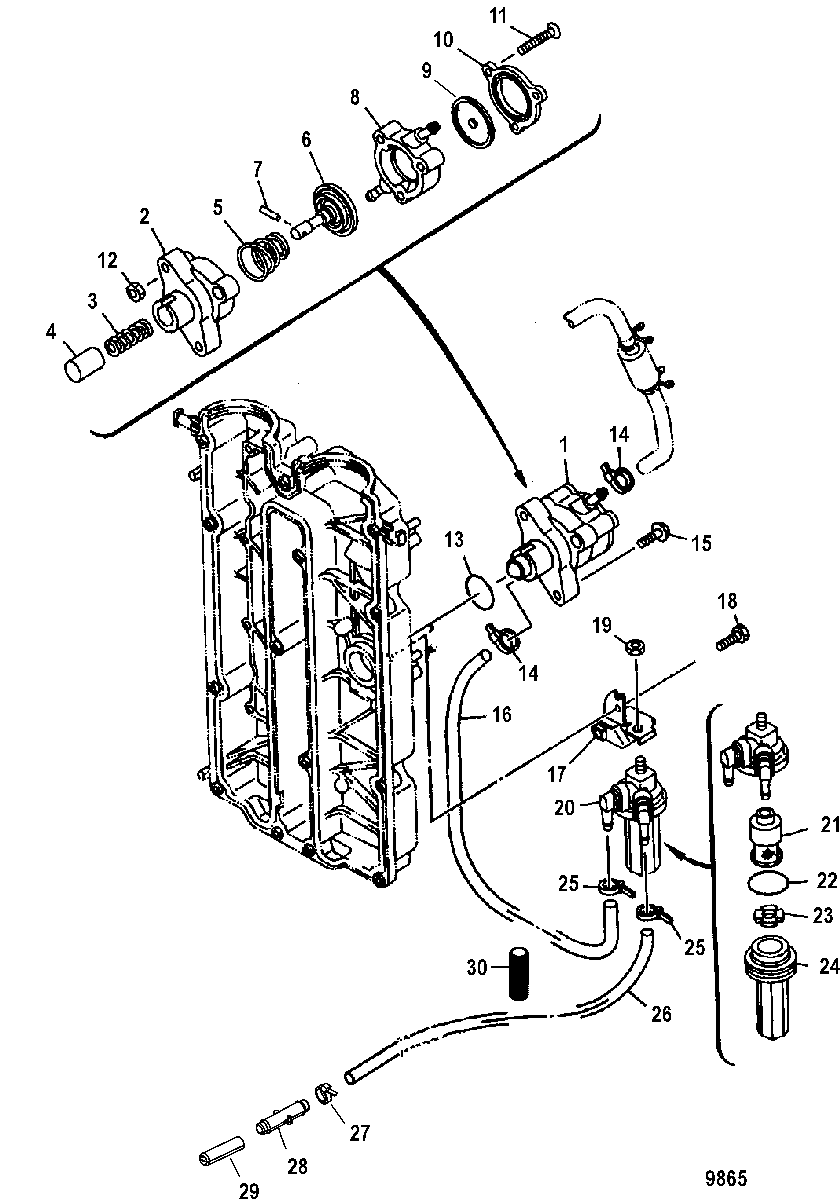

Fuel Pump для Mercury - 100 EFI (4-STROKE) 1B227000 THRU 1B366822

  • №
    Артикул
    Название
  • 1
    8M0091468 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 3
    24-881544 SPRING
    SPRING
  • 4
    881545001 PLUNGER
    PLUNGER
  • 5
    24-881546 SPRING
    SPRING
  • 6
    881547 DIAPHRAGM
    DIAPHRAGM
  • 7
    17-881548 PIN
    PIN
  • 8
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 11
    10-881550 SCREW
    SCREW
  • 12
    11-881333 NUT
    NUT
  • 13
    25-8M0050719 O-RING
    O-RING
  • 14
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 15
    10-804256 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 16
    32-881543001 TUBING
    TUBING
  • 17
    881542006 BRACKET
    BRACKET
  • 18
    10-811188T BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 19
    11-82382M NUT
    NUT
  • 20
    35-881538T02 FILTER ASSEMBLY
    FILTER ASSEMBLY
  • 21
    35-881540 ELEMENT
    ELEMENT
  • 22
    25-826966T O-RING
    O-RING
  • 23
    881541 FLOAT
    FLOAT
  • 24
    881539 CUP
    CUP
  • 25
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 26
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)
  • 27
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 28
    22-822769 CONNECTOR
    CONNECTOR
  • 29
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 30
    32-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)
  • -
    27-858732A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    881310T07 CYLINDER HEAD ASSEMBLY
    (75/80/90)
    CYLINDER HEAD ASSEMBLY
    (75/80/90)
  • -
    881310T10 CYLINDER HEAD ASSEMBLY
    (100)
    CYLINDER HEAD ASSEMBLY
    (100)
