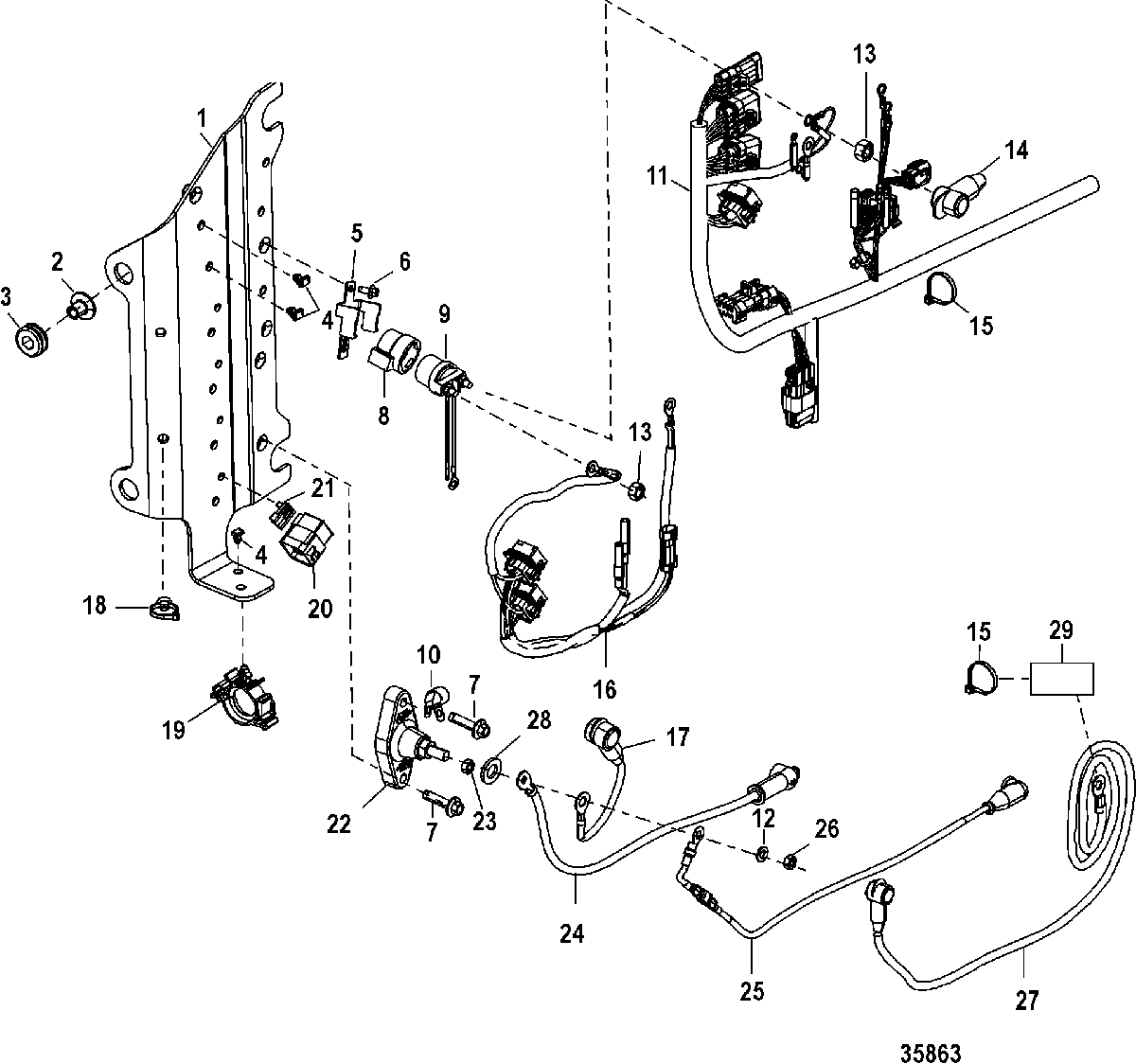

Electrical Plate Components, Serial Number 1B723943 and Up для Mercury - 100 EFI (4-STROKE) 0P459572 THRU 2B094995

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    897619T01 PLATE, Electrical
    PLATE, Electrical
  • 2
    23-856954 BUSHING
    BUSHING
  • 3
    25-834985 GROMMET
    GROMMET
  • 4
    54-879962 CLIP
    CLIP
  • 5
    893768T PLATE
    PLATE
  • 6
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 7
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 8
    8M0010250 BRACKET
    BRACKET
  • 9
    89-8M0098898 SOLENOID, Starter
    SOLENOID, Starter
  • 10
    54-859172 CLAMP
    CLAMP
  • 11
    84-892579T14 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • -
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • -
    88-8329692 FUSE, Mini - Gray - 2 Ampere
    FUSE, Mini - Gray - 2 Ampere
  • -
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • -
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    FUSE, Mini - Tan - 5 Ampere
  • -
    858754 COVER, Fuse
    COVER, Fuse
  • 12
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 13
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    85-880787 BOOT, Insulator - Yellow
    BOOT, Insulator - Yellow
  • 15
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 15
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 16
    84-819514T27 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 17
    84-93388T22 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 18
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 19
    54-898454 CLIP, (19 mm)
    CLIP, (19 mm)
  • 20
    882751 RELAY
    RELAY
  • 21
    86-865205 CLIP
    CLIP
  • 22
    85-875302A1 HOT STUD ASSEMBLY
    HOT STUD ASSEMBLY
  • 23
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 24
    84-93388T20 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 25
    84-878231T05 HARNESS ASSEMBLY, Fuse
    HARNESS ASSEMBLY, Fuse
  • 26
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 27
    84-88439A46 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 28
    12-85172 WASHER
    WASHER
  • 29
    NSS NOT SOLD SEPARATE, Tag-Battery
    NOT SOLD SEPARATE, Tag-Battery
