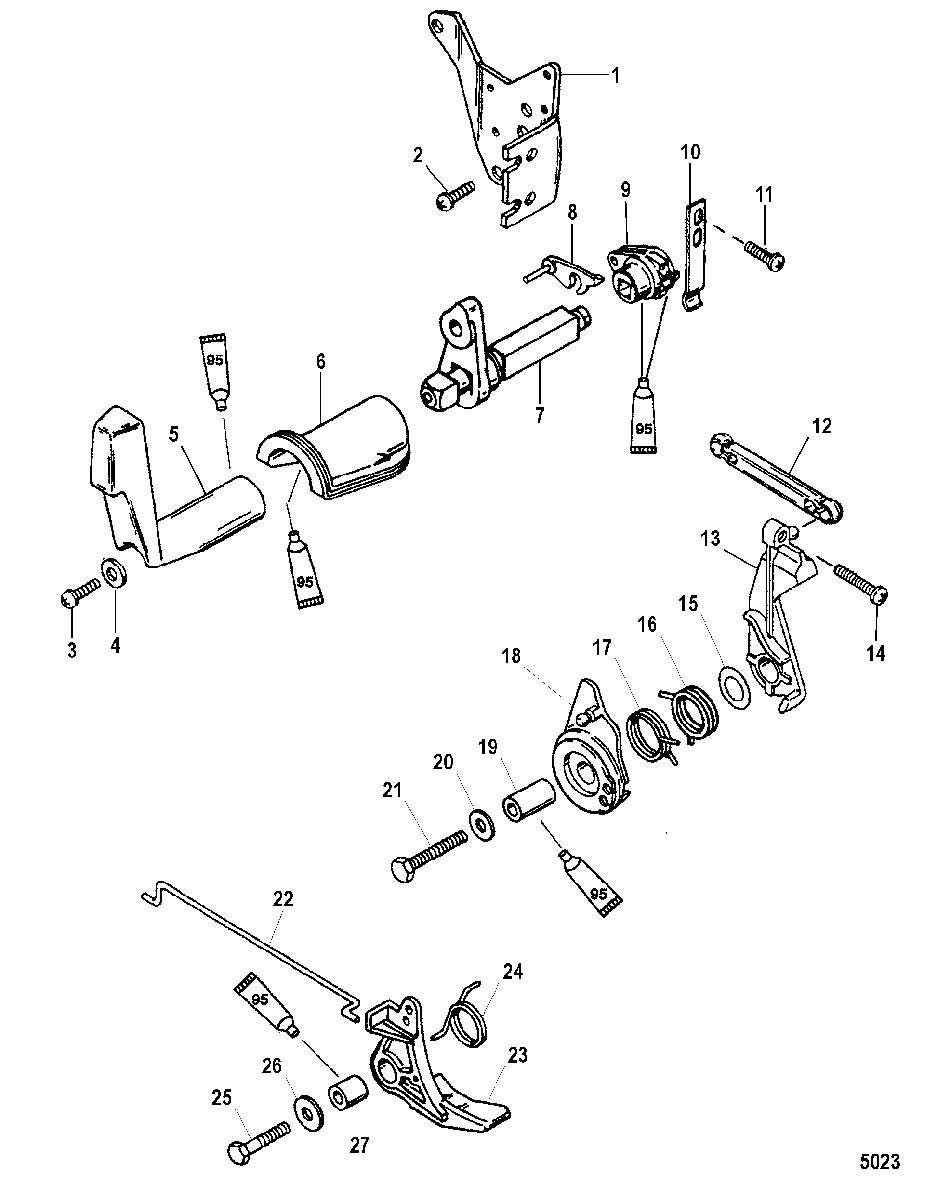

Throttle and Shift Linkage(Side Shift) для Mercury - 10 SEA PRO 9792200 THRU 0P016999
-
№АртикулНазвание
-
1421811 BRACKET, CableBRACKET, Cable
-
210-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
310-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
412-4002314 WASHERWASHER
-
5421571 SHIFT HANDLESHIFT HANDLE
-
644459001 GROMMETGROMMET
-
78155501 SHIFT SHAFTSHIFT SHAFT
-
842156 LEVERLEVER
-
942153 LEVERLEVER
-
1024-39627 SPRINGSPRING
-
1110-400011 SCREW, (M5 x 8)SCREW, (M5 x 8)
-
12421671 TIMING LINKTIMING LINK
-
13421631 LEVER, ControlLEVER, Control
-
1410-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1513-69708 WAVE WASHERWAVE WASHER
-
1624-42164 SPRINGSPRING
-
1724-13676 SPRINGSPRING
-
18421662 ACTUATORACTUATOR
-
1923-421621 BUSHINGBUSHING
-
2012-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2242161 LINK INTERLOCKLINK INTERLOCK
-
23421592 LEVERLEVER
-
2424-42160 SPRINGSPRING
-
2510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2612-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2723-421581 BUSHINGBUSHING
