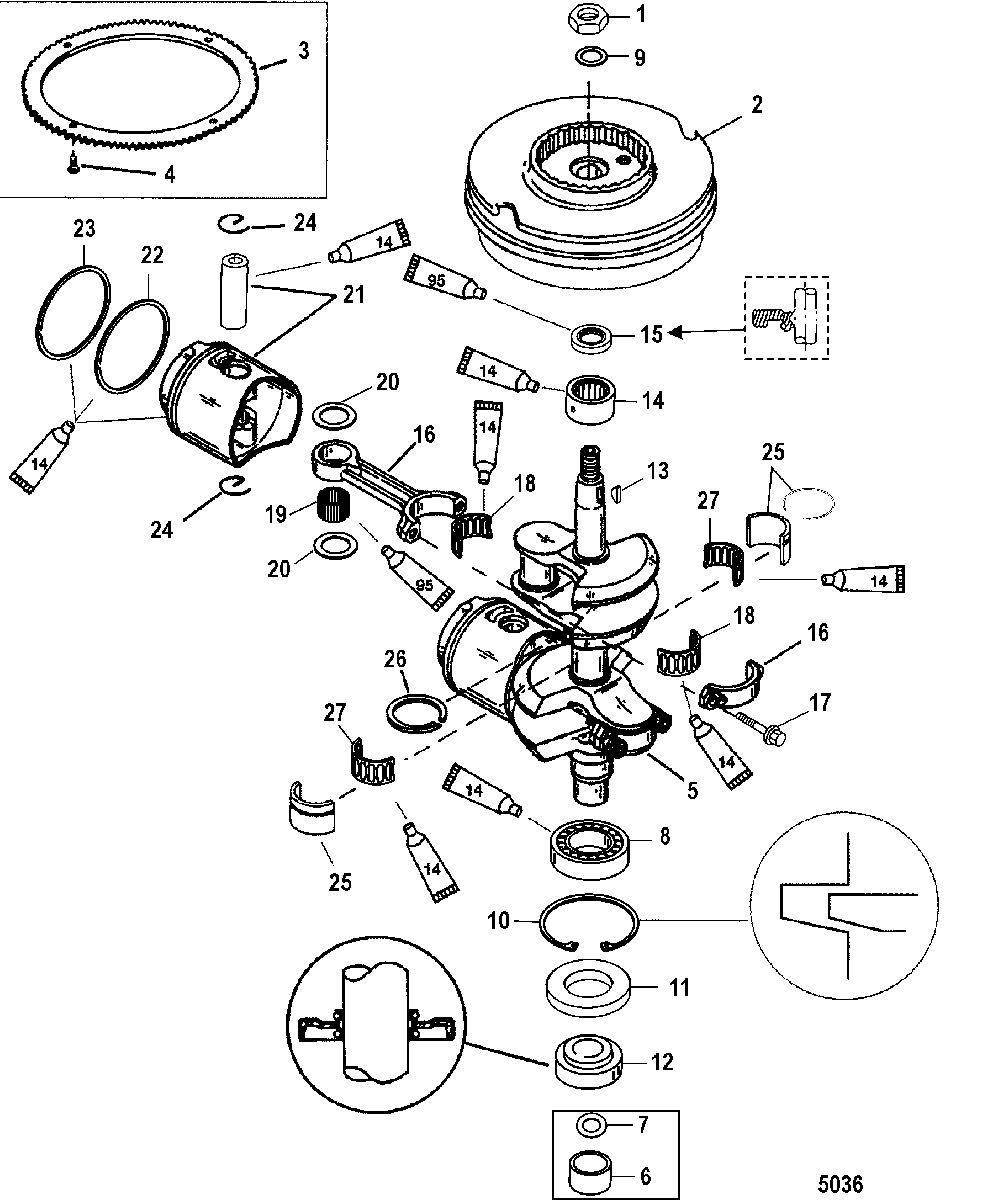

Crankshaft(Pistons and Flywheel) для Mercury - 10 SEA PRO 0P325500 & Up
-
№АртикулНазвание
-
111-818591 NUT, (M14)NUT, (M14)
-
2260-859231T18 FLYWHEEL ASSEMBLY
(10/15 Viking)FLYWHEEL ASSEMBLY
(10/15 Viking) -
2260-859231T17 FLYWHEEL
(Seapro/Marathon)FLYWHEEL
(Seapro/Marathon) -
343-99301 RING GEAR
(Electric)RING GEAR
(Electric) -
410-88190313 SCREW, (M5 x 13)
(Electric)SCREW, (M5 x 13)
(Electric) -
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SLEEVESLEEVE
-
7NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
830-41341 BEARING, BallBEARING, Ball
-
912-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
-
1053-42132 RING, RetainingRING, Retaining
-
1112-13031 WASHERWASHER
-
1226-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1328-20094 KEY, WoodruffKEY, Woodruff
-
1431-878158 BEARING, RollerBEARING, Roller
-
1526-125671 SEAL, Oil - UpperSEAL, Oil - Upper
-
16637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1710-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1831-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1929-42186 BEARING, NeedleBEARING, Needle
-
2012-8M0012297 BEARING, ThrustBEARING, Thrust
-
21784-9747T2 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
21784-9747A4 PISTON ASSEMBLY
(.015 Oversize)PISTON ASSEMBLY
(.015 Oversize) -
2239-18212A4 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
2239-18212A1 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
23NSS NOT SOLD SEPARATE, Piston Ring - TopNOT SOLD SEPARATE, Piston Ring - Top
-
2440-422021 LOCK RINGLOCK RING
-
2517794A1 BEARINGBEARING
-
2626-818901 SEALSEAL
-
2731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
-19072T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
