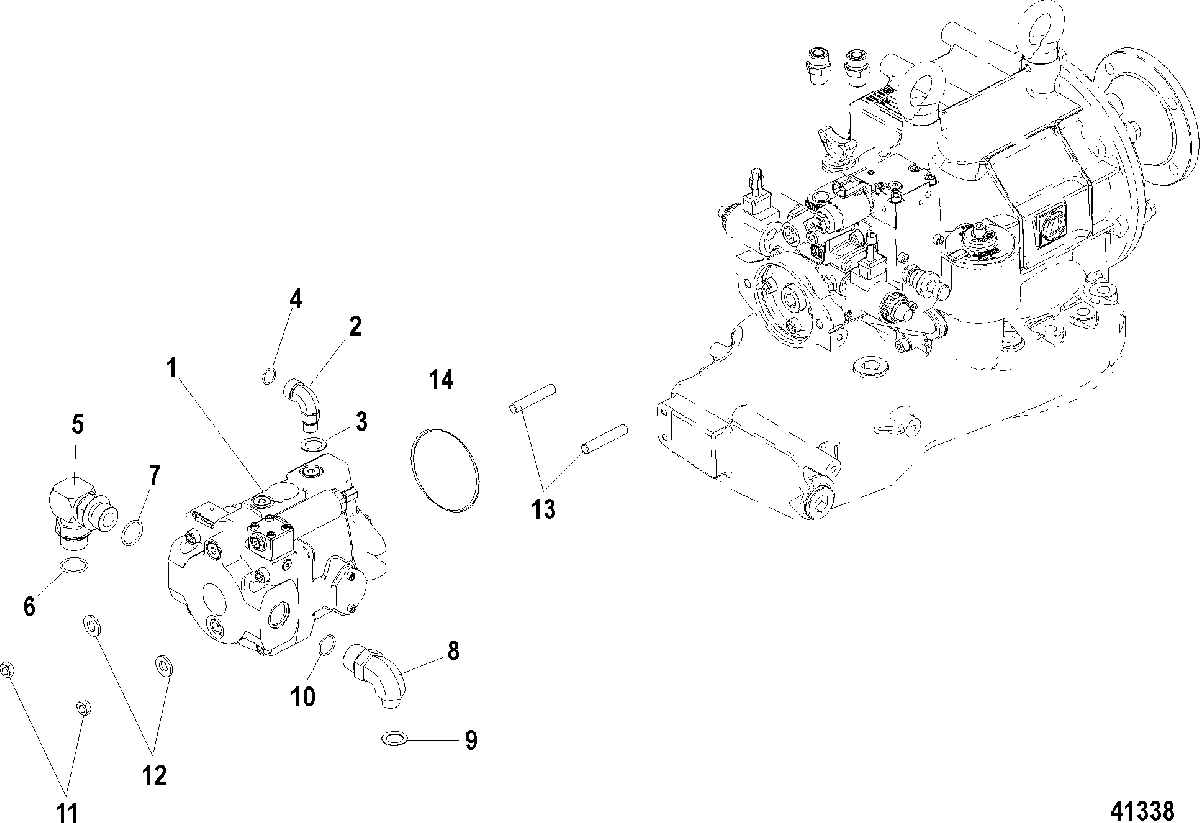

Hydraulic Pump, Primary для Mercruiser - ZEUS 3000 0M968893 THRU 0M968955

  • №
    Артикул
    Название
  • 1
    8M0124037 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 2
    22-8M0039094 FITTING, 90 Degree (.365 SAE x .50 ORFS)
    FITTING, 90 Degree (.365 SAE x .50 ORFS)
  • 3
    25-8M0047401 O-RING, (.468 X .078)
    O-RING, (.468 X .078)
  • 4
    25-45253 O-RING
    O-RING
  • 5
    22-8M0040169 FITTING, 90 Degree (.75 SAE x .75 SAEMA)
    FITTING, 90 Degree (.75 SAE x .75 SAEMA)
  • 6
    25-8M0047403 O-RING
    O-RING
  • 7
    25-8M0047403 O-RING
    O-RING
  • 8
    22-8M0039062 FITTING, 90 Degree (.75 SAE x .375 ORFS)
    FITTING, 90 Degree (.75 SAE x .375 ORFS)
  • 9
    25-8M0047399 O-RING
    O-RING
  • 10
    25-8M0047403 O-RING
    O-RING
  • 11
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 12
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 13
    16-820640 STUD, (M10 x 55)
    STUD, (M10 x 55)
  • 14
    26-879312020 O-RING
    O-RING
