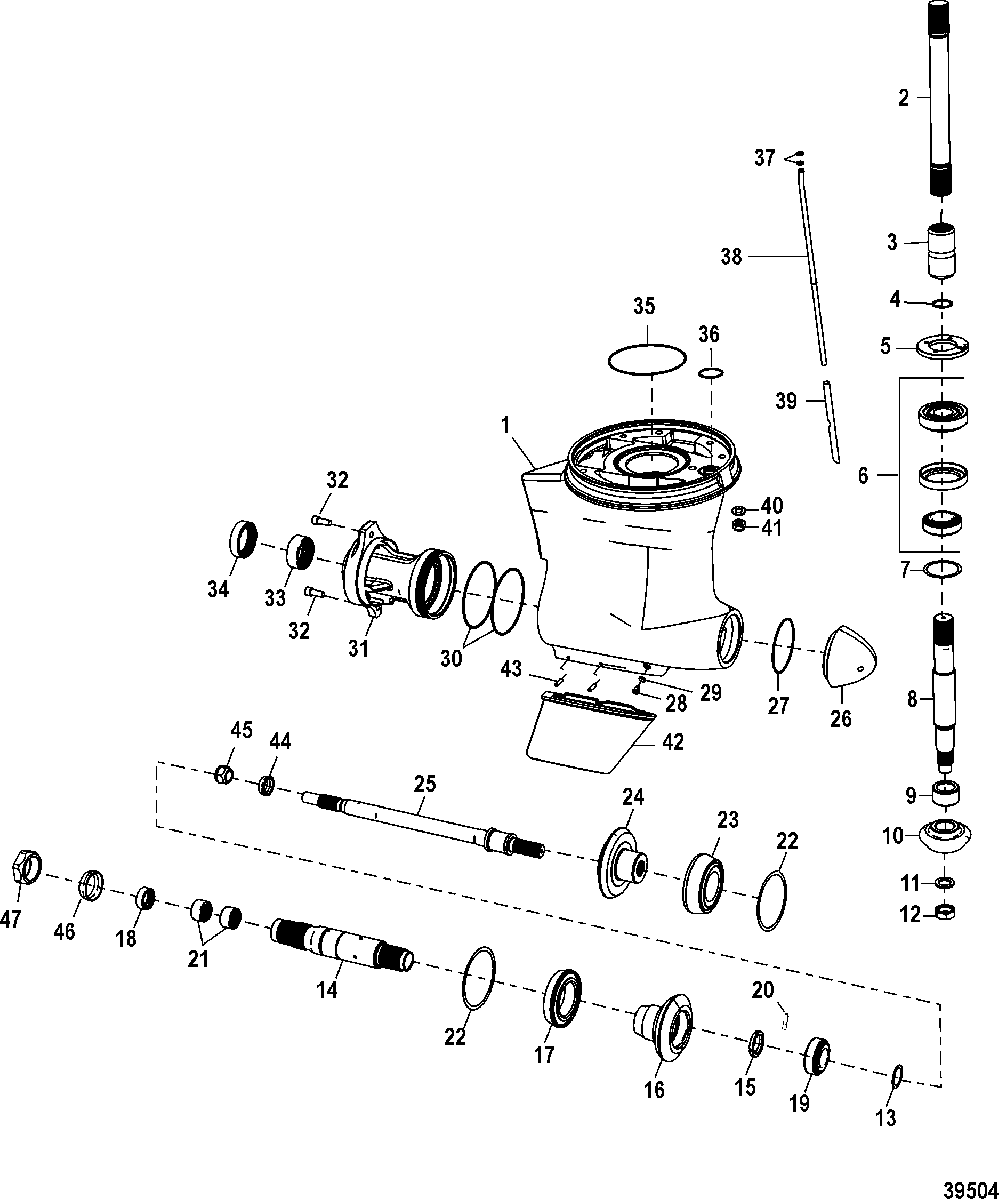

Gear Housing, Design-I (0M963534 and Below) для Mercruiser - ZEUS 3000 0M968853 THRU 0M968885
-
№АртикулНазвание
-
-879345T44 GEARCASE ASSEMBLY, CompleteGEARCASE ASSEMBLY, Complete
-
1879345T45 GEARCASE, BasicGEARCASE, Basic
-
245-879345T48 SHAFTSHAFT
-
38M8021038 COUPLERCOUPLER
-
453-38476 RING, RetainingRING, Retaining
-
511-879148T06 NUTNUT
-
6879148T21 BEARING ASSEMBLY, With SpacerBEARING ASSEMBLY, With Spacer
-
715-36178A02 SHIM SETSHIM SET
-
8879345T47 DRIVESHAFTDRIVESHAFT
-
931-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
10NSS NOT SOLD SEPARATE, Pinion Gear
See Bulletin MC 2012-11NOT SOLD SEPARATE, Pinion Gear
See Bulletin MC 2012-11 -
1123-8M0007721 WASHERWASHER
-
1211-8M0022754 NUT, (1.00-14)NUT, (1.00-14)
-
1315-879148A06 SHIM SETSHIM SET
-
1444-8M0075212 REPAIR KIT, PROP SHAFT/GEAR SET
See Bulletin MC 2012-11REPAIR KIT, PROP SHAFT/GEAR SET
See Bulletin MC 2012-11 -
1511-898935 NUTNUT
-
16NSS NOT SOLD SEPARATE, Reverse Gear
See Bulletin MC 2012-11NOT SOLD SEPARATE, Reverse Gear
See Bulletin MC 2012-11 -
1731-879148T02 BEARING ASSEMBLYBEARING ASSEMBLY
-
1826-8M0033407 SEALSEAL
-
1931-879148T04 BEARING ASSEMBLYBEARING ASSEMBLY
-
2014-8M0029358 TAB, LockingTAB, Locking
-
2131-57410 BEARING, RollerBEARING, Roller
-
2215-899815A01 SHIM SETSHIM SET
-
2331-879148T03 BEARING ASSEMBLYBEARING ASSEMBLY
-
24NSS NOT SOLD SEPARATE, Forward Gear
See Bulletin MC 2012-11NOT SOLD SEPARATE, Forward Gear
See Bulletin MC 2012-11 -
2544-879148T17 SHAFT
See Bulletin MC 2012-11SHAFT
See Bulletin MC 2012-11 -
26879345T46 NOSENOSE
-
2725-8M0007618 O RING, (107.62 x 2.62)O RING, (107.62 x 2.62)
-
2822-8M0058389 PLUG, DrainPLUG, Drain
-
2926-830749 SEALSEAL
-
3025-87159 O RINGO RING
-
318M0058357 CARRIER, BearingCARRIER, Bearing
-
3210-8M0010988 SCREW, (M12 x 30)SCREW, (M12 x 30)
-
3331-805079T BEARING, RollerBEARING, Roller
-
3426-861694 SEAL, OilSEAL, Oil
-
3525-8M0007558 O RING, (152.07 x 2.62)O RING, (152.07 x 2.62)
-
3625-891935 O-RINGO-RING
-
3725-8M0024744 O RING, (.296 x .139)O RING, (.296 x .139)
-
3832-8M0024745 TUBETUBE
-
398M0025395 GUIDEGUIDE
-
4012-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
4111-896895 NUT, (M12)NUT, (M12)
-
428M0072969 SKEGSKEG
-
4317-8M0007579 PINPIN
-
44805101T THRUST HUBTHRUST HUB
-
4511-862907 PROP NUTPROP NUT
-
468M0119410 PROP NUT KITPROP NUT KIT
-
4711-8M0105210 PROP NUTPROP NUT
