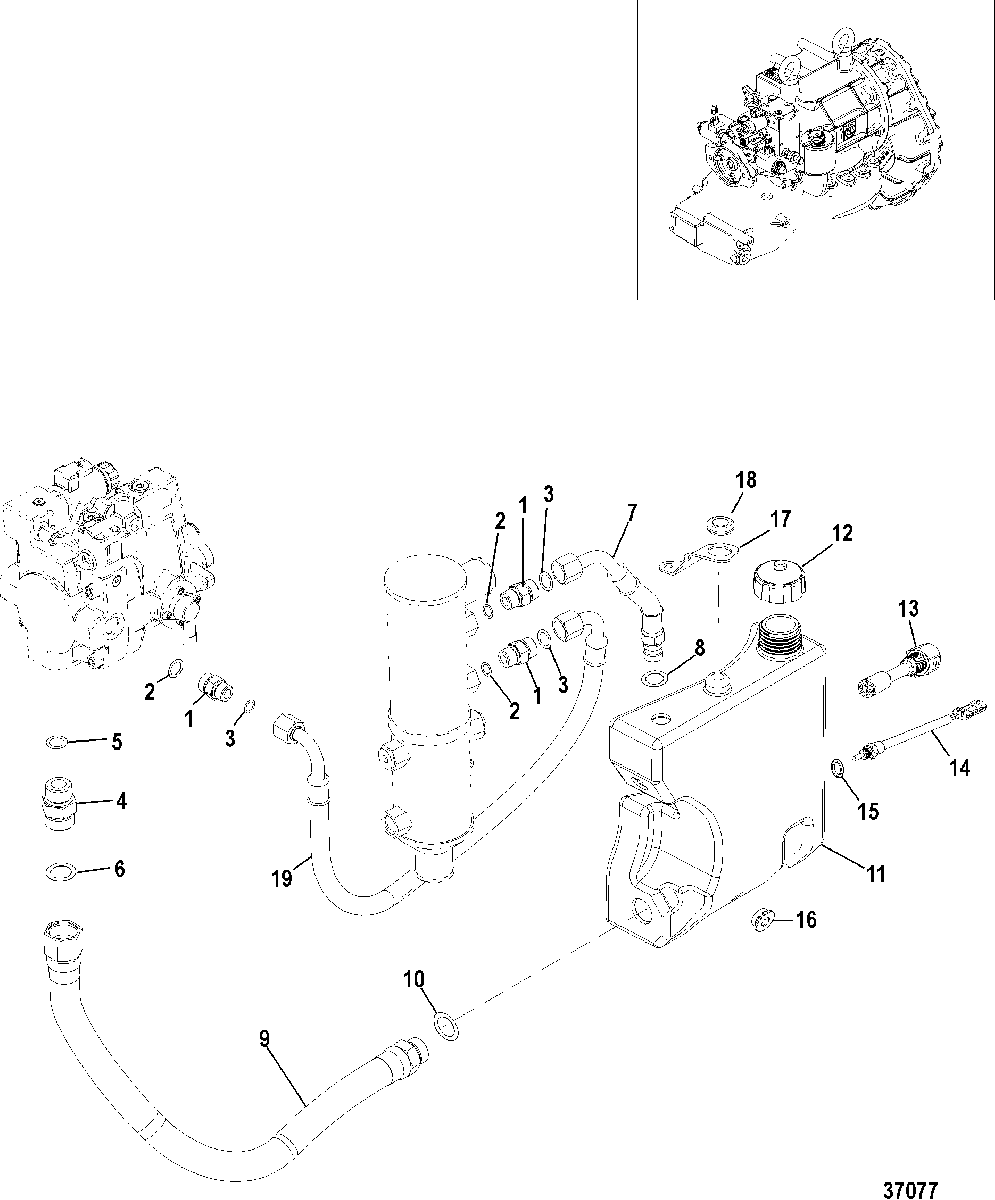

Hydraulic System, Starboard для Mercruiser - ZEUS 3000 0M957858 THRU 0M962470
-
№АртикулНазвание
-
122-8M0021781 FITTINGFITTING
-
2NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
3NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
422-8M0033231 FITTING, (Stainless Steel)FITTING, (Stainless Steel)
-
5NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
6NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
732-8M0049753 HOSEHOSE
-
8NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
932-8M0007668 HOSEHOSE
-
10NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
118M0123978 TANK, Hydraulic Oil
Design ITANK, Hydraulic Oil
Design I -
1219-8M0026333 CAP
Design ICAP
Design I -
118M0123978 RESERVOIR TANK
Design IIRESERVOIR TANK
Design II -
128M0123978 RESERVOIR CAP
Design IIRESERVOIR CAP
Design II -
118M0123978 RESERVOIR ASSEMBLY
Design IIIRESERVOIR ASSEMBLY
Design III -
1219-8M6001367 RESERVOIR CAP
Design IIIRESERVOIR CAP
Design III -
NS35-8M0037964 STRAINER
Design IIISTRAINER
Design III -
138M0026573 SWITCHSWITCH
-
148M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1525-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1619-8M0022463 PLUGPLUG
-
178M0007661 BRACKETBRACKET
-
1825-8M0007663 GROMMETGROMMET
-
1932-8M0021789 HOSEHOSE
