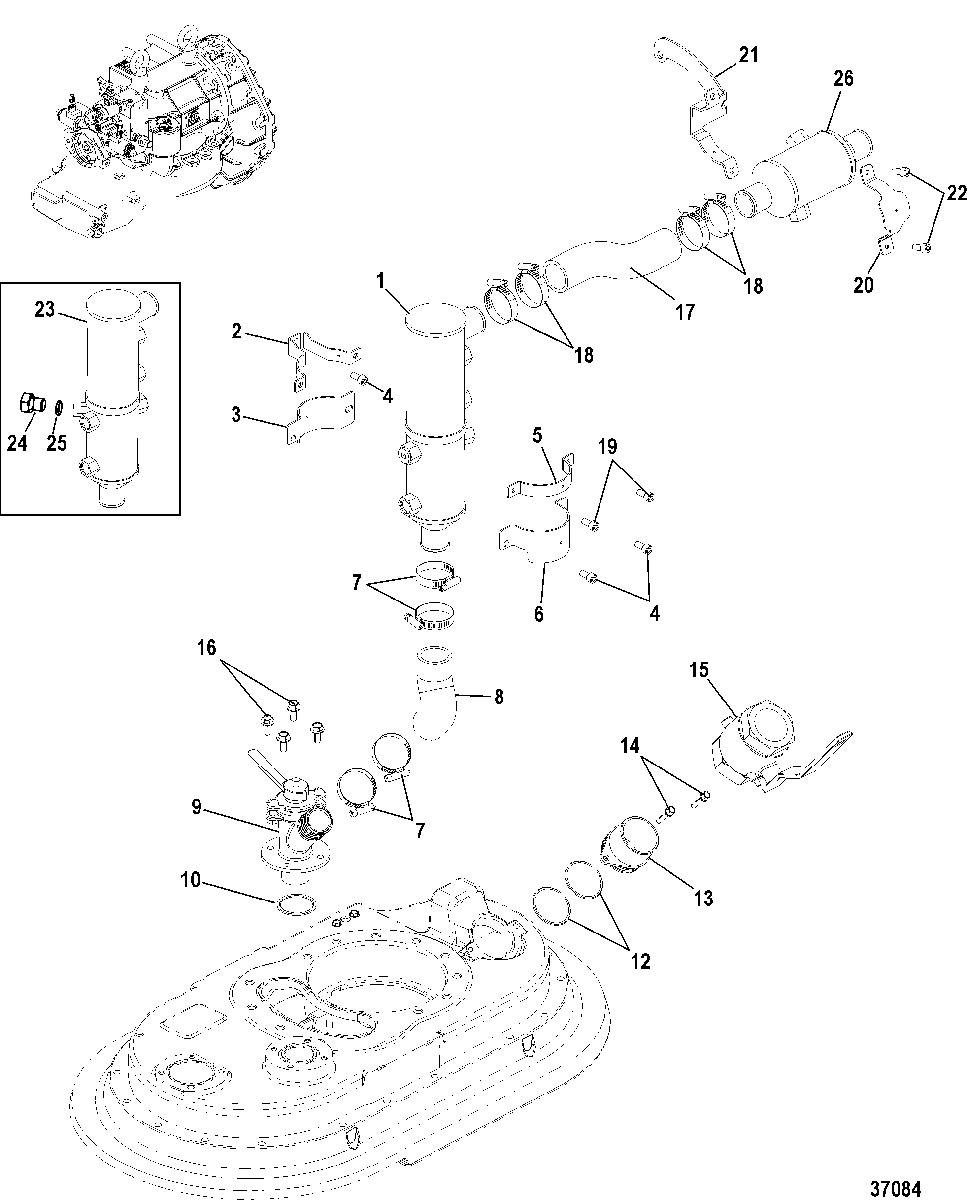

Cooling System(With Drop Box) для Mercruiser - ZEUS 3000 0M957858 THRU 0M962470
-
№АртикулНазвание
-
18M0046594 COOLER, Oil
(Design II)(Use without Plug)COOLER, Oil
(Design II)(Use without Plug) -
28M0007715 BRACKETBRACKET
-
38M0007713 BRACKETBRACKET
-
410-4008916 SCREW, (M8 x 16) Stainless SteelSCREW, (M8 x 16) Stainless Steel
-
58M0007716 BRACKETBRACKET
-
68M0007714 BRACKETBRACKET
-
754-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
832-8M0007711 HOSEHOSE
-
98M0007538 SEACOCK DUMPSEACOCK DUMP
-
1025-864295 O-RING, (2.05 x .103)O-RING, (2.05 x .103)
-
1119-8M0025635 PLUGPLUG
-
1225-822276 O-RING, (2.237 x .103)O-RING, (2.237 x .103)
-
1322-8M0007539 ADAPTERADAPTER
-
1410-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
158M0007542 SEACOCKSEACOCK
-
1610-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1732-8M0025147 HOSEHOSE
-
1854-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
1910-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
208M0025162 CLAMPCLAMP
-
218M0040165 BRACKETBRACKET
-
2210-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
238M0046594 COOLER, Oil
(Design I)(Use with Plug)COOLER, Oil
(Design I)(Use with Plug) -
2422-8591001 PLUG ASSEMBLY, (M10 x 1.5) Brass
(Use with Design I Oil Cooler)PLUG ASSEMBLY, (M10 x 1.5) Brass
(Use with Design I Oil Cooler) -
2525-627021 O-RING, (.301 x .070)
(Use with Design I Oil Cooler)O-RING, (.301 x .070)
(Use with Design I Oil Cooler) -
26879148T42 COOLERCOOLER
-
NS37-8M0037747 DECAL, No StepDECAL, No Step
