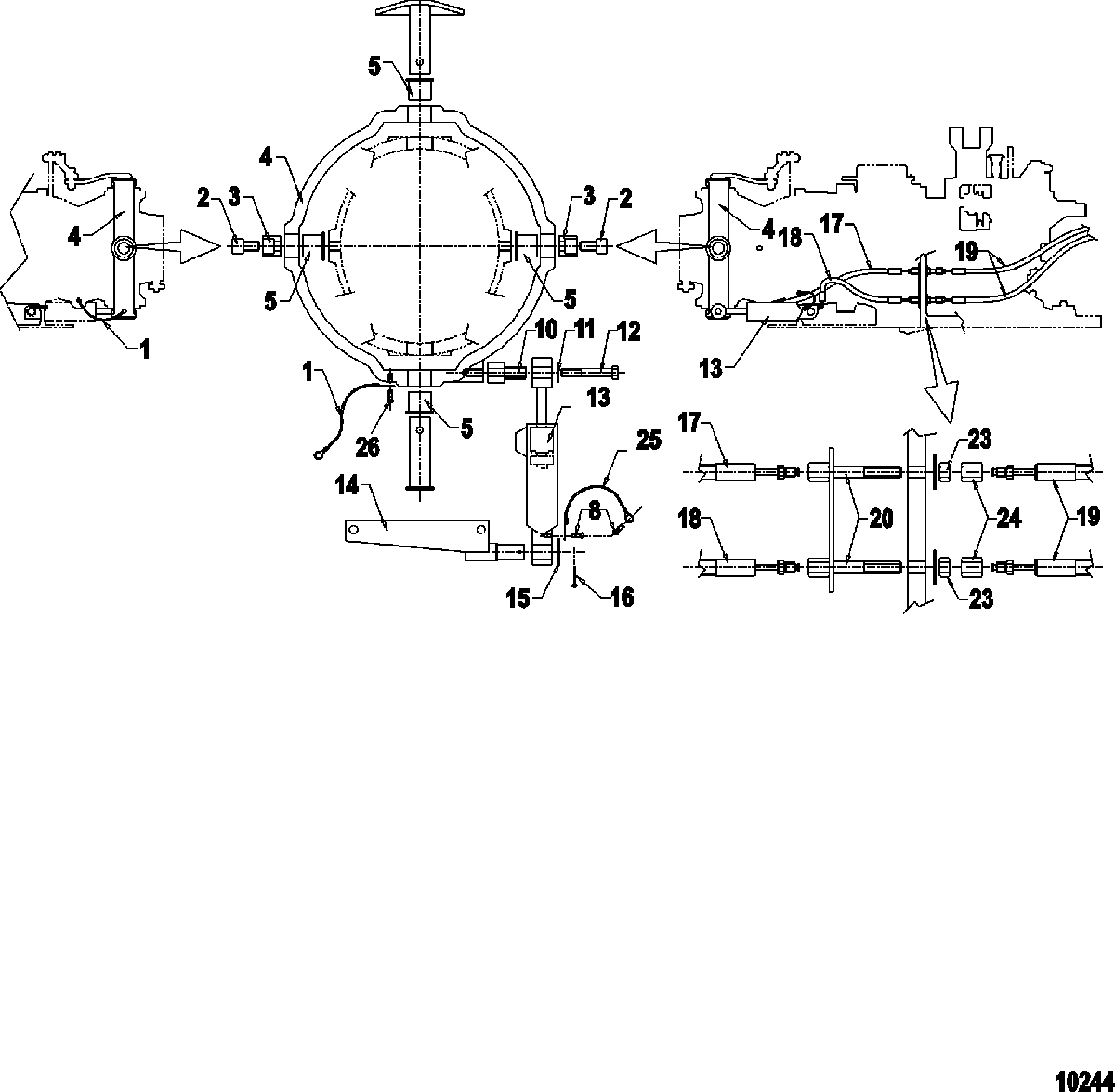

Trim System для Mercruiser - JETDRIVE 2004 1D000000 THRU 1D999999
-
№АртикулНазвание
-
-886964 TRIM KITTRIM KIT
-
184-896723A01 BONDING WIREBONDING WIRE
-
210-887306 SCREW, (M12 x 20)SCREW, (M12 x 20)
-
317-886966 PIN, PivotPIN, Pivot
-
4886965 TRIM RINGTRIM RING
-
523-887276 BUSHING, FlangedBUSHING, Flanged
-
810-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
1017-886967 CYLINDER PIVOT, PinCYLINDER PIVOT, Pin
-
1112-887257 WASHER, (M12)WASHER, (M12)
-
1210-887307 BOLT, (M10 x 70)BOLT, (M10 x 70)
-
13819365A2 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
14886968 CYLINDER MOUNTCYLINDER MOUNT
-
1512-887308 WASHER, (M16)WASHER, (M16)
-
1618-886977 PIN, Split (M3.2 x 32)PIN, Split (M3.2 x 32)
-
1732-886971 HOSE, HydraulicHOSE, Hydraulic
-
1832-886970 HOSE, HydraulicHOSE, Hydraulic
-
1932-886974 HOSE ASSEMBLY, Hydraulic - InboardHOSE ASSEMBLY, Hydraulic - Inboard
-
2022-886972 FITTING, BulkheadFITTING, Bulkhead
-
2311-887285 NUT, (.375)NUT, (.375)
-
2422-886973 FLARE DOUBLE UNIION, (.188)FLARE DOUBLE UNIION, (.188)
-
2584-886999 CABLE ASSEMBLY, Bonding (140 mm M5)CABLE ASSEMBLY, Bonding (140 mm M5)
-
2610-887310 SCREW, (.188 x .500)SCREW, (.188 x .500)
-
NS859725T02 PUMP/MOTOR ASSEMBLYPUMP/MOTOR ASSEMBLY
-
NS88-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
NS54-55098 J CLIPJ CLIP
-
NS12-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
NS11-13855A1 NUT/SCREW KITNUT/SCREW KIT
-
NS84-886994 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
NS882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
