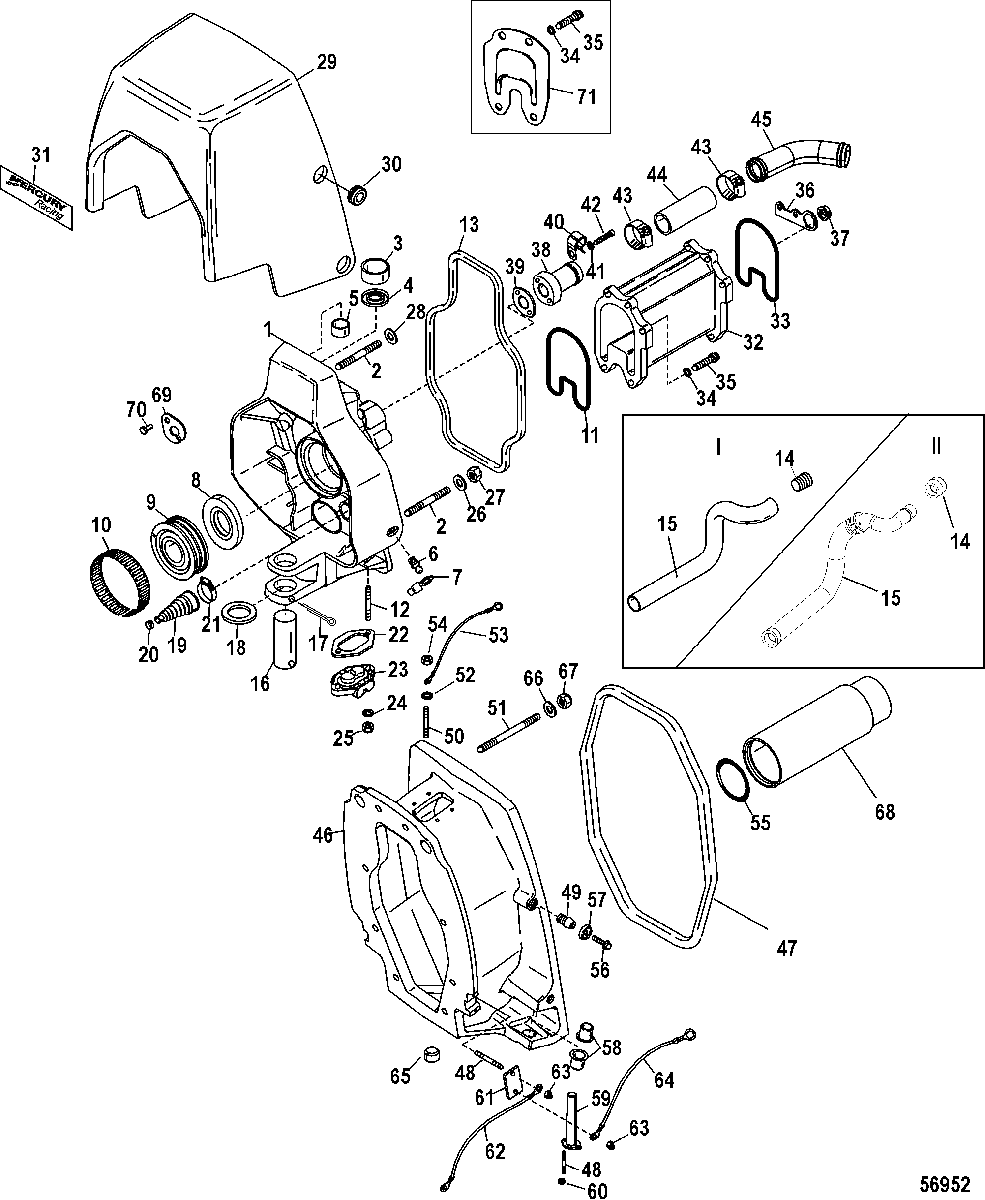

Gimbal Housing(Integrated Transom) для Mercruiser - BRAVO XR ONE 0W240000 & Up

  • №
    Артикул
    Название
  • 1
    8M0062528 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 2
    16-57984 STUD, (.437-14/.437-20 x 2.380)
    STUD, (.437-14/.437-20 x 2.380)
  • 3
    23-983571 BUSHING, Lower
    BUSHING, Lower
  • 4
    26-8M2005029 SEAL, Oil
    SEAL, Oil
  • 5
    23-98356 BUSHING, Upper
    BUSHING, Upper
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    19-77633Q LUBRICAP
    LUBRICAP
  • 8
    26-88416 SEAL, Oil
    SEAL, Oil
  • 9
    30-879194A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    61075 TOLERANCE RING
    TOLERANCE RING
  • 11
    41802 SEAL, Rubber
    SEAL, Rubber
  • 12
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 13
    43713 SEAL
    SEAL
  • 14
    41674T INSERT
    Design I
    INSERT
    Design I
  • 14
    23-8M0057042 INSERT
    Design II
    INSERT
    Design II
  • 15
    32-8M0090859 HOSE
    Design I
    HOSE
    Design I
  • 15
    8M0062102 HOSE
    Design II
    HOSE
    Design II
  • 16
    17-8M0073409 SWIVEL PIN, Lower
    SWIVEL PIN, Lower
  • 17
    18-54929 COTTER PIN
    COTTER PIN
  • 18
    12-32518 WASHER
    WASHER
  • 19
    74639A2 BELLOWS ASSEMBLY, Shift Cable
    BELLOWS ASSEMBLY, Shift Cable
  • 20
    54-8M0090424 CLAMP
    CLAMP
  • 21
    54-815504320 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 22
    27-988231 GASKET
    GASKET
  • 23
    98825A13 COVER KIT
    COVER KIT
  • 24
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 25
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 27
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 28
    12-840848 WASHER
    WASHER
  • 29
    8M0056176 COWL ASSEMBLY, Transom
    COWL ASSEMBLY, Transom
  • 30
    25-840840 GROMMET
    GROMMET
  • 31
    37-840359 DECAL, Mercury Racing
    DECAL, Mercury Racing
  • 32
    840693A2 PLATE KIT, Exhaust Extension
    SN# 0M962899 & Below
    PLATE KIT, Exhaust Extension
    SN# 0M962899 & Below
  • 33
    41802 SEAL, Rubber
    SN# 0M962899 & Below
    SEAL, Rubber
    SN# 0M962899 & Below
  • 34
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 35
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 36
    840842 BRACKET
    BRACKET
  • 37
    23-840847 BUSHING, Snap
    BUSHING, Snap
  • 38
    22-8M0080097 CONNECTOR
    CONNECTOR
  • 39
    27-8M0109475 GASKET
    GASKET
  • 40
    54-642351 J CLIP
    Design I only
    J CLIP
    Design I only
  • 41
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 42
    10-816742 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 43
    54-180766 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 44
    32-8M0062665 HOSE, (48.00 Inches Bulk) (5.00 Inches)
    HOSE, (48.00 Inches Bulk) (5.00 Inches)
  • 45
    22-840831 TUBE, (60 Degree)
    TUBE, (60 Degree)
  • 46
    840496A3 BOX ASSEMBLY, Transom
    BOX ASSEMBLY, Transom
  • 47
    437131 SEAL
    SEAL
  • 48
    16-846345 STUD, (#10-32 x .750)
    STUD, (#10-32 x .750)
  • 49
    16-8M0034447 STUD
    STUD
  • 50
    16-728091 STUD, (.250-20/.250-28 x 1.620)
    STUD, (.250-20/.250-28 x 1.620)
  • 50
    16-843125 STUD, (.250-20 x 2.02), Bonding Strap
    STUD, (.250-20 x 2.02), Bonding Strap
  • 51
    16-866562 STUD, (.437-20 x 4.750) Stainless Steel
    STUD, (.437-20 x 4.750) Stainless Steel
  • 51
    16-866563 STUD, (.437-20 x 4.250) Stainless Steel
    STUD, (.437-20 x 4.250) Stainless Steel
  • 52
    13-93702 WASHER, (.250 External Star), Bonding Strap Stud
    WASHER, (.250 External Star), Bonding Strap Stud
  • 53
    88238A20 CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
    CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
  • 54
    11-8267098 NUT, (.250-20) Stainless Steel, Bonding Strap Stud
    NUT, (.250-20) Stainless Steel, Bonding Strap Stud
  • 55
    25-94926 O-RING, (2.489 x .070)
    O-RING, (2.489 x .070)
  • 56
    10-901921 SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch
    SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch
  • 57
    12-840841 WASHER
    WASHER
  • 58
    23-8159501 BUSHING
    BUSHING
  • 59
    840739 PIN
    PIN
  • 60
    11-8267096 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 61
    840801 PLATE
    PLATE
  • 62
    88238A7 CABLE ASSEMBLY, Ground Strap (3.160 Inches)
    CABLE ASSEMBLY, Ground Strap (3.160 Inches)
  • 63
    11-8267096 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 64
    88238A20 CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
    CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
  • 65
    22-35052 PLUG, Pipe (.250-18 x .375), Pipe
    PLUG, Pipe (.250-18 x .375), Pipe
  • 66
    12-34567 WASHER
    WASHER
  • 67
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 68
    840689T TUBE, Extension
    TUBE, Extension
  • 69
    54-12078 CLAMP
    CLAMP
  • 70
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 71
    861776A2 PLATE KIT
    SN# 0M962900 & Up
    PLATE KIT
    SN# 0M962900 & Up
