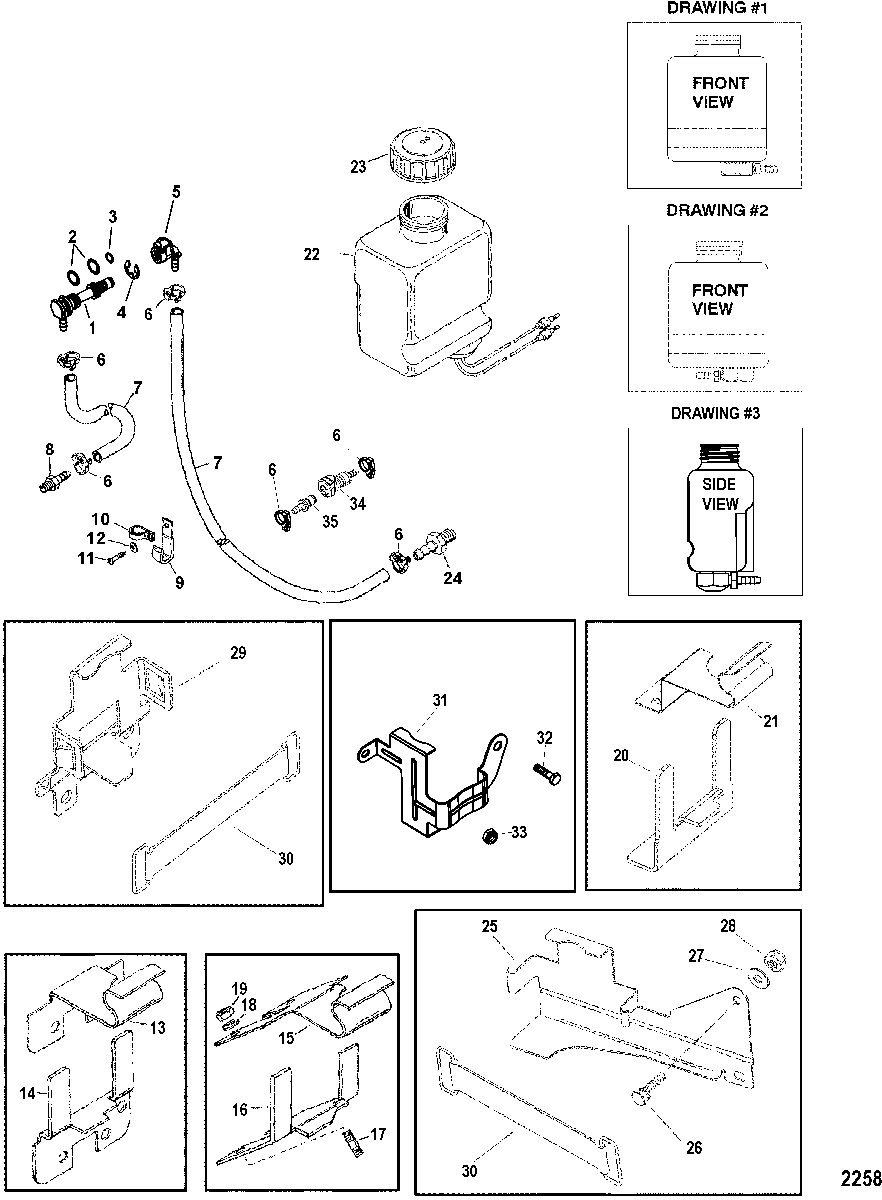

OIL RESERVOIR COMPONENTS для Mercruiser - BRAVO ONE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
122-861150T02 FITTING ASSEMBLYFITTING ASSEMBLY
-
225-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
453-87843 E RINGE RING
-
522-861163 QUICK CONNECTOR, (90 Degree)QUICK CONNECTOR, (90 Degree)
-
654-415825 CLAMP, NylonCLAMP, Nylon
-
732-8M0040618 HOSE, (54.00 Inches Bulk) (Cut to 9.5 Inches and 36 Inches)HOSE, (54.00 Inches Bulk) (Cut to 9.5 Inches and 36 Inches)
-
822-16739 CONNECTORCONNECTOR
-
954-642351 J CLIPJ CLIP
-
1054-23567 CLIPCLIP
-
1110-60605 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
128M0084613 C WASHERC WASHER
-
13860065A1 BRACKET, Clip, Clip - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET, Clip, Clip - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
14860065A1 BRACKET KIT, Oil Bottle - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET KIT, Oil Bottle - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
15806292T1 BRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
16807025T BRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
1716-8M2004610 STUD, (.375-16 x 2.130)
(4.3LX/5.7L/5.7LX) (CARB)STUD, (.375-16 x 2.130)
(4.3LX/5.7L/5.7LX) (CARB) -
1812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1911-32219 NUT, (.375-16)NUT, (.375-16)
-
20806649T BRACKET (262 MAG. EFI)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET (262 MAG. EFI)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
21806650T BRACKET (5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS)BRACKET (5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI)
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) -
228M0075708 MONITOR ASSEMBLY, Oil
(FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1)MONITOR ASSEMBLY, Oil
(FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1) -
228M0075709 RESERVOIR
(FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2)RESERVOIR
(FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2) -
228M0075710 RESERVOIR
(FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3)RESERVOIR
(FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3) -
2336-8067271 CAP, Drive Lube MonitorCAP, Drive Lube Monitor
-
2422-808624 CONNECTORCONNECTOR
-
25807839T1 BRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS 4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFIBRACKET
(SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS 4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI -
2610-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI)SCREW AND LOCKWASHER, (.250-20 x .625)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) -
2712-69057 WASHER, (.281 x .734 x .063)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI)WASHER, (.281 x .734 x .063)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) -
2811-8267088 NUT, (.250-20)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI)NUT, (.250-20)
(4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) -
-806054A1 RELOCATION KIT, Oil ReservoirRELOCATION KIT, Oil Reservoir
-
29860065A1 BRACKET KIT, Oil Bottle
(SEE NOTE) (5.7L/5.7LX/350 MAGNUM) (CARB AND EFI) (3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502)BRACKET KIT, Oil Bottle
(SEE NOTE) (5.7L/5.7LX/350 MAGNUM) (CARB AND EFI) (3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502) -
30808023T STRAP, BracketSTRAP, Bracket
-
31865175T BRACKET
(4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION)BRACKET
(4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION) -
3210-828552 SCREW, (.375-16 x .500)SCREW, (.375-16 x .500)
-
3311-8267098 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
3422-865379 CONNECTOR, Female, Quick ConnectCONNECTOR, Female, Quick Connect
-
3522-865191 FITTING, Male, Quick ConnectFITTING, Male, Quick Connect
