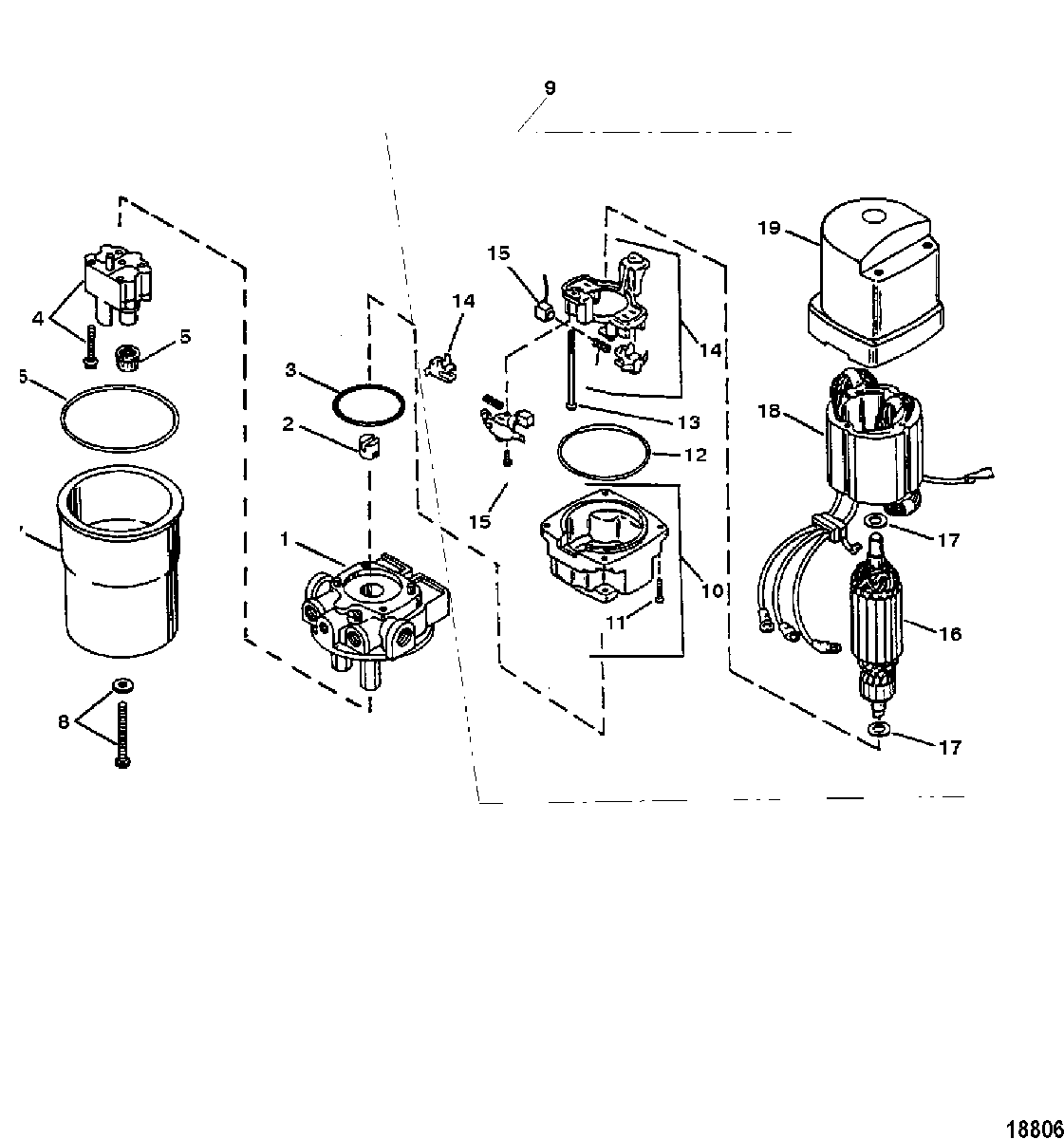

HYDRAULIC PUMP ASSEMBLY(III-IV-V) (OILDYNE) для Mercruiser - ALPHA ONE SS 1986-1989 ALL THRU none
-
№АртикулНазвание
-
-8M0051203 PUMP ASSEMBLY, Hydraulic
(OILDYNE)PUMP ASSEMBLY, Hydraulic
(OILDYNE) -
18M0084543 ADAPTORADAPTOR
-
2803852 COUPLINGCOUPLING
-
325-89498 O-RING, Motor EndO-RING, Motor End
-
4811492T PUMP (Includes Screws)PUMP (Includes Screws)
-
535-89496 FILTERFILTER
-
625-89497 O-RING, Reservoir EndO-RING, Reservoir End
-
741219T RESERVOIRRESERVOIR
-
810-811493 SCREW KITSCREW KIT
-
9891736T MOTORMOTOR
-
10891736T END CAP ASSEMBLY (With Bearing)END CAP ASSEMBLY (With Bearing)
-
11891736T SCREWSCREW
-
12891736T O-RINGO-RING
-
13891736T SCREWSCREW
-
14891736T HOLDER KIT, BrushHOLDER KIT, Brush
-
15891736T BRUSH KITBRUSH KIT
-
16891736T ARMATUREARMATURE
-
17891736T WASHER, ThrustWASHER, Thrust
-
18891736T FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
19891736T COVER ASSEMBLY (With Bearing)COVER ASSEMBLY (With Bearing)
-
NS812498A1 VALVE KIT, Relief, Pressure ReliefVALVE KIT, Relief, Pressure Relief
