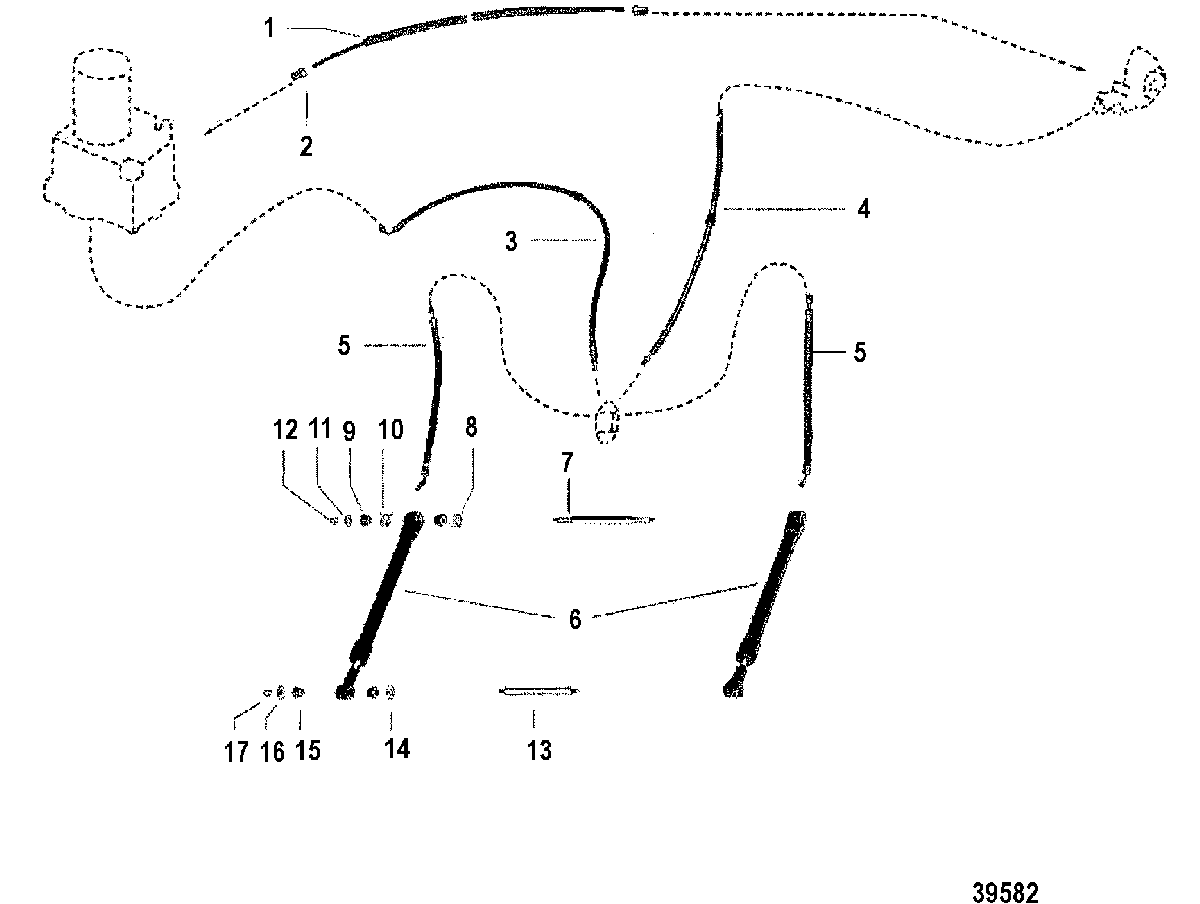

TRIM CYLINDERS AND HYDRAULIC HOSES(INTERNAL LINES) для Mercruiser - 260 1978-1982 4898730 THRU 6225576

  • №
    Артикул
    Название
  • 1
    32-52951A1 HOSE, HYDRAULIC PUMP TO VALVE
    (IN-LINE ENGINES)
    HOSE, HYDRAULIC PUMP TO VALVE
    (IN-LINE ENGINES)
  • 1
    32-8M0111655 TUBING, HYDRAULIC PUMP TO VALVE
    (V-8 ENGINES)
    TUBING, HYDRAULIC PUMP TO VALVE
    (V-8 ENGINES)
  • 2
    22-49718 NUT, COMPRESSION-HYDRAULIC TUBE ATTACHING
    NUT, COMPRESSION-HYDRAULIC TUBE ATTACHING
  • 3
    32-55816 HOSE, HYDRAULIC-CONNECTOR TO PUMP
    (IN-LINE ENGINES)
    HOSE, HYDRAULIC-CONNECTOR TO PUMP
    (IN-LINE ENGINES)
  • 3
    32-59841 HOSE, HYDRAULIC-CONNECTOR TO PUMP (44")
    (V-8 ENGINES)
    HOSE, HYDRAULIC-CONNECTOR TO PUMP (44")
    (V-8 ENGINES)
  • 4
    32-59842 HOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVE (29 1/2")
    HOSE, HYDRAULIC-CONNECTOR TO REVERSE VALVE (29 1/2")
  • 5
    32-86036Q HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")
    HOSE, HYDRAULIC-CONNECTOR TO TRIM CYLINDER (12 1/2")
  • 6
    45706A14 TRIM CYLINDER ASSEMBLY, COMPLETE
    TRIM CYLINDER ASSEMBLY, COMPLETE
  • -
    45522A3 REPAIR KIT, Pivot End, TRIM CYLINDER
    REPAIR KIT, Pivot End, TRIM CYLINDER
  • -
    77442A1 REPAIR KIT, Outer Tube, TRIM CYLINDER
    REPAIR KIT, Outer Tube, TRIM CYLINDER
  • -
    25-60342A2 O-RING KIT, TRIM CYLINDER
    O-RING KIT, TRIM CYLINDER
  • 7
    17-45735 PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")
    PIN, Front Anchor, TRIM CYLINDER TO GIMBAL RING (10 11/32")
  • 8
    12-45737 WASHER, FRONT ANCHOR PIN
    WASHER, FRONT ANCHOR PIN
  • 9
    23-89574 BUSHING, RUBBER-FRONT ANCHOR PIN
    BUSHING, RUBBER-FRONT ANCHOR PIN
  • 10
    24-46312 SPRING, FRONT ANCHOR PIN
    SPRING, FRONT ANCHOR PIN
  • 11
    12-46765 WASHER, (.390 x 1.50 x .120), FRONT ANCHOR PIN
    WASHER, (.390 x 1.50 x .120), FRONT ANCHOR PIN
  • 12
    11-82671013 NUT, (.375-24), FRONT ANCHOR PIN
    NUT, (.375-24), FRONT ANCHOR PIN
  • 13
    17-45738 PIN, REAR ANCHOR-TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")
    PIN, REAR ANCHOR-TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")
  • 14
    12-45737 WASHER, REAR ANCHOR PIN
    WASHER, REAR ANCHOR PIN
  • 15
    23-89574 BUSHING, RUBBER-REAR ANCHOR PIN
    BUSHING, RUBBER-REAR ANCHOR PIN
  • 16
    12-46765 WASHER, (.390 x 1.50 x .120), REAR ANCHOR PIN
    WASHER, (.390 x 1.50 x .120), REAR ANCHOR PIN
  • 17
    11-82671013 NUT, (.375-24), REAR ANCHOR PIN
    NUT, (.375-24), REAR ANCHOR PIN
  • --
    24-86687A1 SPRING/CONTINUINTY KIT
    SPRING/CONTINUINTY KIT
