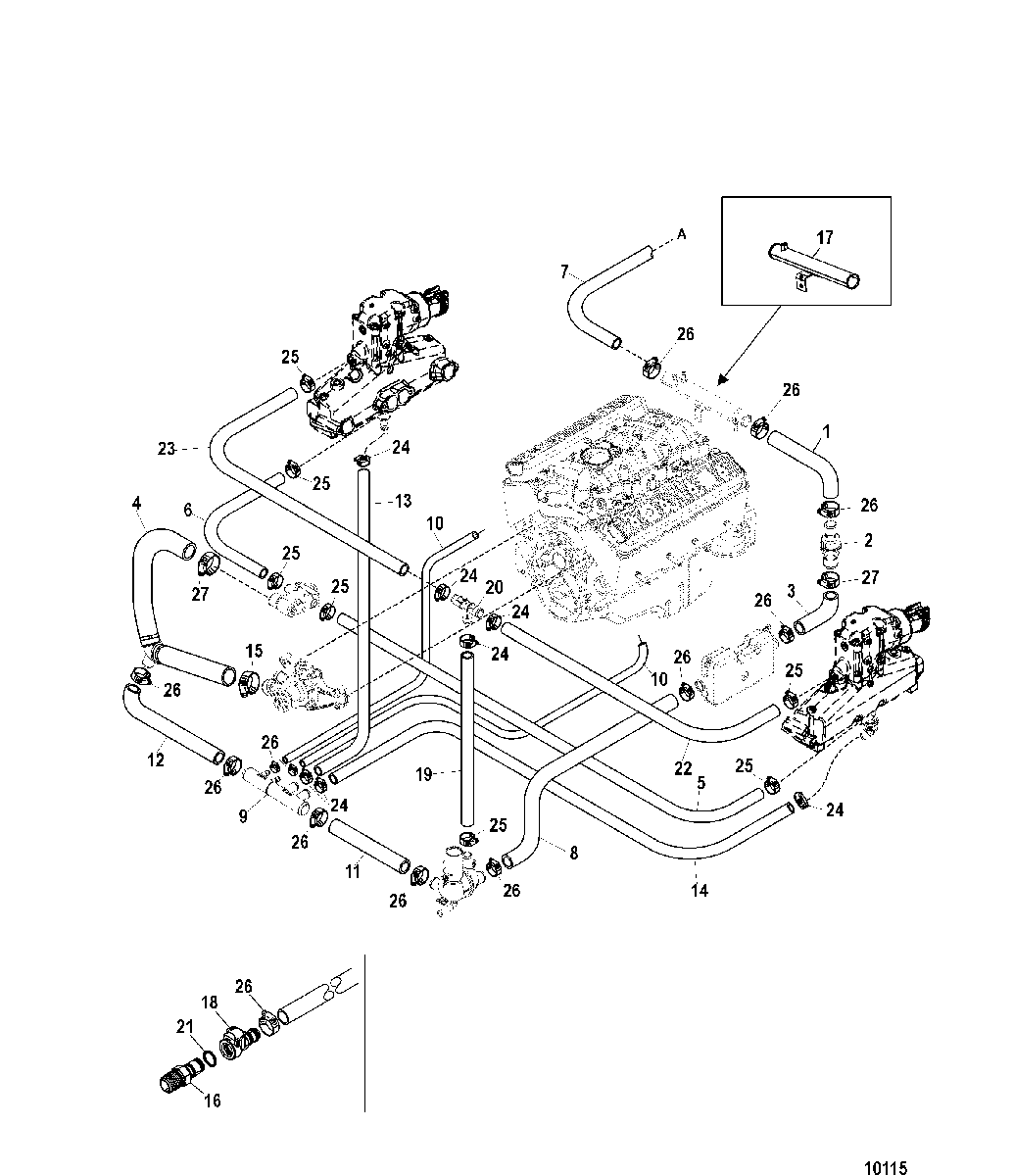

Standard Cooling System (ALPHA)(Single and 3 Point Drain) для Mercruiser - MX 6.2L MPI HORIZON BRAVO 0W060000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Power Steering Cooler to Check Valve
    HOSE, Power Steering Cooler to Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863623 HOSE, Check Valve to Fuel Cooler
    HOSE, Check Valve to Fuel Cooler
  • 4
    32-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
    HOSE ASSEMBLY, Thermostat Housing to Circulating Pump
  • 5
    32-863458 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 6
    32-863459 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 7
    32-807661 HOSE, Transom Assembly to Power Steering Cooler
    (Alpha)
    HOSE, Transom Assembly to Power Steering Cooler
    (Alpha)
  • 8
    32-863670 HOSE, Fuel Cooler to Water Distribution Housing
    HOSE, Fuel Cooler to Water Distribution Housing
  • 9
    22-864621A1 FITTING ASSEMBLY, Lower Distribution
    FITTING ASSEMBLY, Lower Distribution
  • 10
    32-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
    (Port-23 Inches) (Starboard 17 Inches)
    HOSE, Cylinder Block Drain to Distribution Fitting
    (Port-23 Inches) (Starboard 17 Inches)
  • 11
    32-863490 HOSE, Water Drain Accumulator to Distribution Fitting
    HOSE, Water Drain Accumulator to Distribution Fitting
  • 12
    32-863491 HOSE, Distribution Fitting to "Y" Fitting
    HOSE, Distribution Fitting to "Y" Fitting
  • 13
    32-8M0062634 HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
    (Cut to 22 Inch Length)
    HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting
    (Cut to 22 Inch Length)
  • 14
    32-8M0062634 HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
    (Cut to 31 Inch Length)
    HOSE, (44.00 Inches Bulk), Port Manifold to Distribution Fitting
    (Cut to 31 Inch Length)
  • 15
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 16
    22-862603 FITTING, Male Quick Connector, Threaded
    FITTING, Male Quick Connector, Threaded
  • 17
    863841T TUBE, Water, Brass
    (Compact Hydraulic Steering)
    TUBE, Water, Brass
    (Compact Hydraulic Steering)
  • 18
    22-862225 FITTING, Pushlock
    FITTING, Pushlock
  • 19
    32-863465 HOSE, Drain Accumulator to Tee Fitting
    HOSE, Drain Accumulator to Tee Fitting
  • 20
    22-8M0065823 FITTING ASSEMBLY
    (Alpha Only)
    FITTING ASSEMBLY
    (Alpha Only)
  • NS
    22-8M0065823 BUSHING, Orifice
    (Alpha Only)
    BUSHING, Orifice
    (Alpha Only)
  • NS
    22-8M0065823 O-RING
    (Alpha Only)
    O-RING
    (Alpha Only)
  • 21
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 22
    32-864560 HOSE, Tee Fitting to Port Elbow
    (Non Riser and 3 Inch Warm Riser)
    HOSE, Tee Fitting to Port Elbow
    (Non Riser and 3 Inch Warm Riser)
  • 22
    32-864965 HOSE, Tee Fitting to Port Elbow
    (6 Inch Warm Riser)
    HOSE, Tee Fitting to Port Elbow
    (6 Inch Warm Riser)
  • 23
    32-864561 HOSE, Tee Fitting to Starboard Elbow
    (Non Riser and 3 Inch Warm Riser
    HOSE, Tee Fitting to Starboard Elbow
    (Non Riser and 3 Inch Warm Riser
  • 23
    32-864966 HOSE, Tee Fitting to Starboard Elbow
    (6 Inch Warm Riser)
    HOSE, Tee Fitting to Starboard Elbow
    (6 Inch Warm Riser)
  • 24
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 25
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 26
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 27
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
