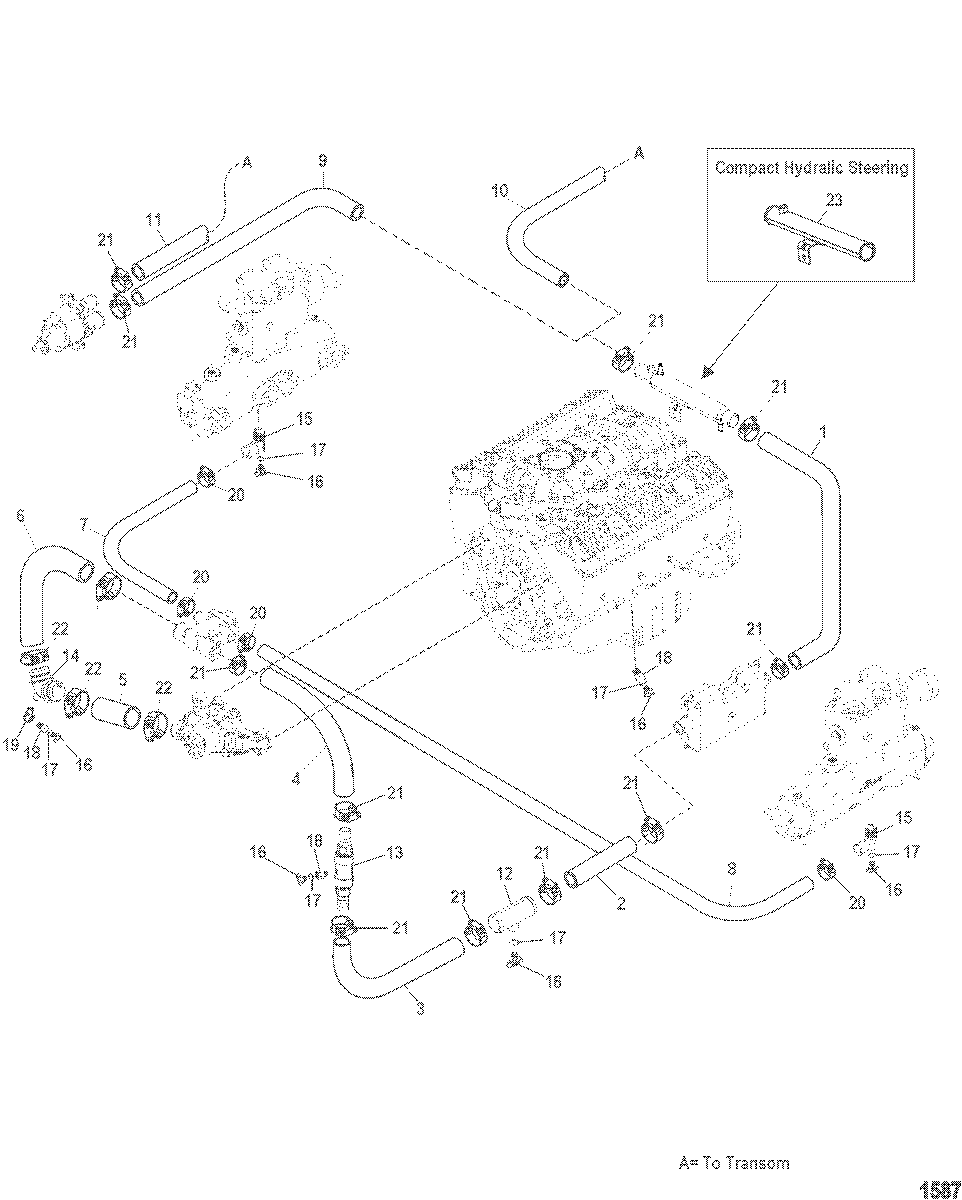

Standard Cooling System(Multi Point Drain) для Mercruiser - MX 6.2L MPI HORIZON BRAVO 0M300000 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    32-8600891 HOSE, Molded
    HOSE, Molded
  • 2
    32-866331 HOSE, (4.00 Inches), Fuel Cooler To Drain Fitting
    (Cut To Length)
    HOSE, (4.00 Inches), Fuel Cooler To Drain Fitting
    (Cut To Length)
  • 3
    32-864578 HOSE, Drain Fitting To Check Valve
    HOSE, Drain Fitting To Check Valve
  • 4
    32-864579 HOSE, Check Valve To Thermostat Housing
    HOSE, Check Valve To Thermostat Housing
  • 5
    32-842413 HOSE, Circulating Pump To Drain Elbow
    HOSE, Circulating Pump To Drain Elbow
  • 6
    32-864703 HOSE, Drain Elbow To Thermostat Housing
    HOSE, Drain Elbow To Thermostat Housing
  • 7
    32-863459 HOSE, Thermostat Housing To Starboard Manifold
    HOSE, Thermostat Housing To Starboard Manifold
  • 8
    32-863458 HOSE, Thermostat Housing To Port Manifold
    HOSE, Thermostat Housing To Port Manifold
  • 9
    32-8080441 HOSE, Molded, Sea Pump To Power Steering Cooler
    (Bravo)
    HOSE, Molded, Sea Pump To Power Steering Cooler
    (Bravo)
  • 10
    32-807661 HOSE, Transom To Power Steering Cooler
    (Alpha)
    HOSE, Transom To Power Steering Cooler
    (Alpha)
  • 11
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump To Drive
    (Bravo)
    HOSE, (96.00 Inches Bulk), Sea Water Pump To Drive
    (Bravo)
  • 12
    861505 FITTING, Drain Tee
    FITTING, Drain Tee
  • 13
    21-862271A1 CHECK VALVE
    CHECK VALVE
  • 14
    8615871 ELBOW, Drain
    ELBOW, Drain
  • 15
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 16
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Fitting
    PLUG KIT, (.500-13) Royal Blue, Fitting
  • 17
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 18
    22-860088 BUSHING
    BUSHING
  • 19
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 20
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 21
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 22
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 23
    863841T TUBE, Water, Brass
    (Compact Hydralic Steering)
    TUBE, Water, Brass
    (Compact Hydralic Steering)
