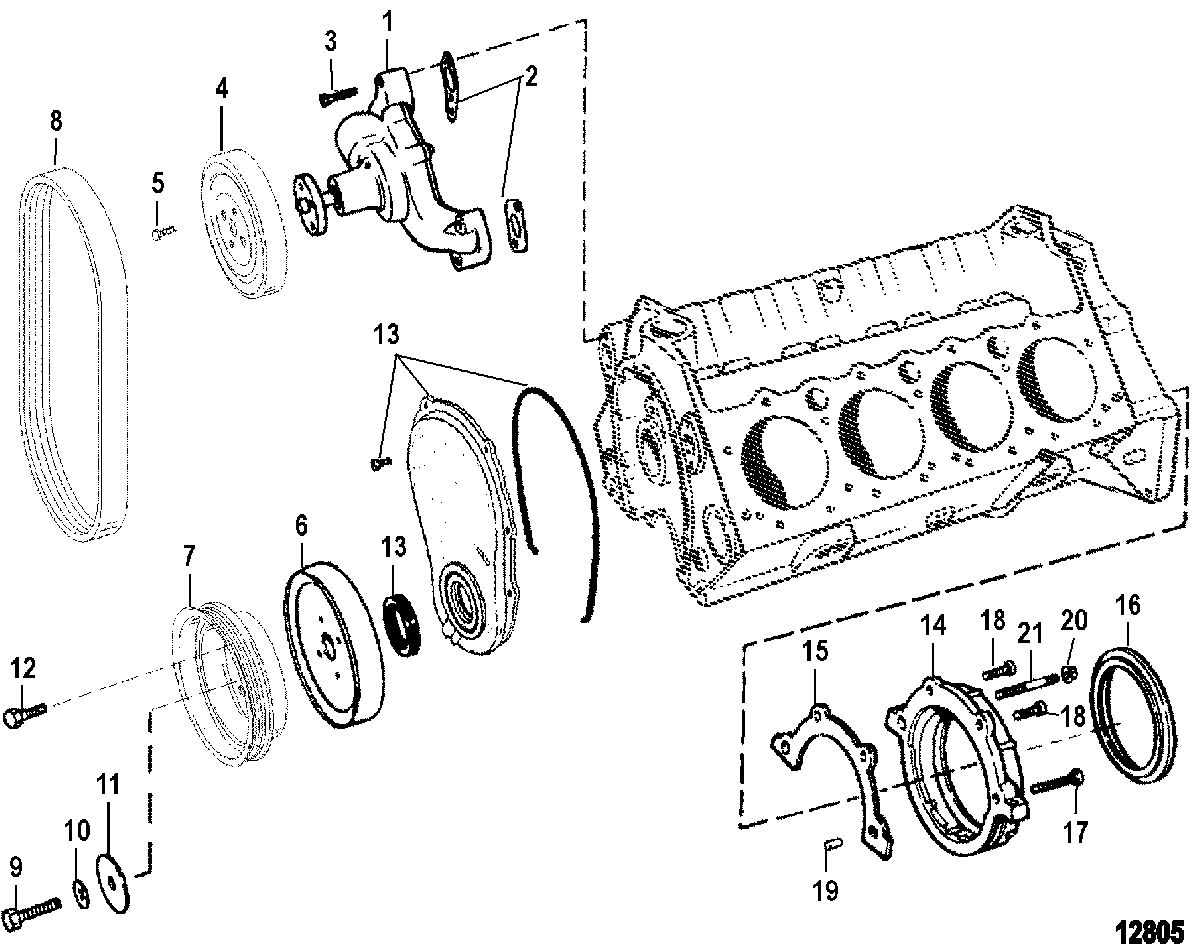

Water Pump And Front Cover для Mercruiser - MX 6.2L MPI BRAVO 0L680003 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    27-34897 GASKET
    GASKET
  • 3
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 3
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 4
    807729T PULLEY
    PULLEY
  • 5
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 6
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 7
    807730T PULLEY
    PULLEY
  • 8
    57-865615Q03 BELT, Serpentine
    (Standard Cooling) (Bravo Engines)
    BELT, Serpentine
    (Standard Cooling) (Bravo Engines)
  • 8
    57-861049Q BELT, Serpentine
    (Closed Cooling)
    BELT, Serpentine
    (Closed Cooling)
  • 9
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 10
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    12-71458 WASHER
    WASHER
  • 12
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 13
    835005 COVER ASSEMBLY, Timing, Block Code 2MH
    (Screws-Grommets-Oil Seal And Gasket Are Not Sold Seperately.)
    COVER ASSEMBLY, Timing, Block Code 2MH
    (Screws-Grommets-Oil Seal And Gasket Are Not Sold Seperately.)
  • 13
    863396001 TIMING COVER ASSEMBLY, Block code 2MN
    (Screws-Grommets-Oil Seal And Gasket Are Not Sold Seperately.)
    TIMING COVER ASSEMBLY, Block code 2MN
    (Screws-Grommets-Oil Seal And Gasket Are Not Sold Seperately.)
  • 14
    852940 HOUSING ASSEMBLY, With Studs, Oil Seal (Rear)
    HOUSING ASSEMBLY, With Studs, Oil Seal (Rear)
  • 15
    27-881715 GASKET
    GASKET
  • 16
    26-852941 SEAL, Oil (Rear)
    SEAL, Oil (Rear)
  • 17
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 18
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 19
    17-14263 PIN, Dowel
    PIN, Dowel
  • 20
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
