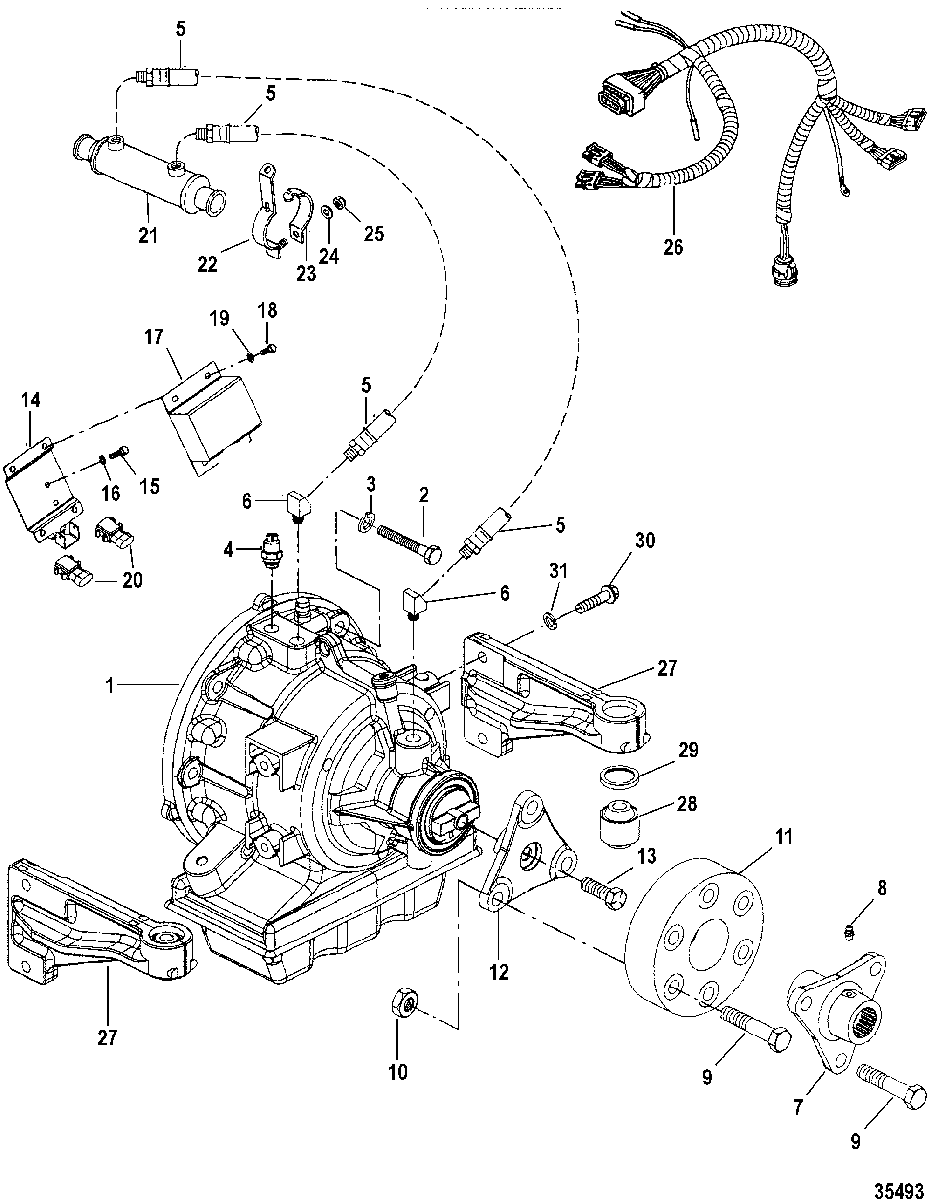

BLACKTRAC TRANSMISSION для Mercruiser - 5.7L EFI GM 350 V-8 1998 0L010035 THRU 0L339999

  • №
    Артикул
    Название
  • 1
    3600-808065A5 TRANSMISSION
    TRANSMISSION
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 2
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 5
    32-475166 HOSE ASSEMBLY, (30.00 Inches)
    HOSE ASSEMBLY, (30.00 Inches)
  • 6
    22-63835 ELBOW, 45 Degree
    ELBOW, 45 Degree
  • 7
    860292A2 FLANGE ASSEMBLY, Input
    FLANGE ASSEMBLY, Input
  • 8
    22-74036 FITTING, Grease
    FITTING, Grease
  • 9
    10-860290 SCREW (M14 X 70)
    SCREW (M14 X 70)
  • 10
    11-860006 NUT (M14)
    NUT (M14)
  • 11
    860293 COUPLER
    COUPLER
  • 12
    860291A1 FLANGE ASSEMBLY, Output
    FLANGE ASSEMBLY, Output
  • 13
    10-861021 SCREW
    SCREW
  • 14
    861018 BRACKET ASSEMBLY, TCM
    BRACKET ASSEMBLY, TCM
  • 15
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 17
    860443T MODULE, Transmission Control
    MODULE, Transmission Control
  • 18
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 19
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 20
    8M0054726 SENSOR, MAP
    SENSOR, MAP
  • 21
    861019T COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 22
    807402T1 BRACKET, Transmission Cooler
    BRACKET, Transmission Cooler
  • 23
    807445T CLAMP
    CLAMP
  • 24
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 25
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 26
    84-861472A3 HARNESS ASSEMBLY, Transmission
    HARNESS ASSEMBLY, Transmission
  • 27
    860294A3 BRACKET ASSEMBLY, Transmission Support
    BRACKET ASSEMBLY, Transmission Support
  • 28
    865330A02 MOUNT
    MOUNT
  • 29
    23-99322 SPACER
    SPACER
  • 30
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 31
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • -
    67-808877 SWITCH, Rocker (HIGH GEAR LOCK)
    SWITCH, Rocker (HIGH GEAR LOCK)
  • -
    84-861521A2 HARNESS ASSEMBLY (30 FT.)
    HARNESS ASSEMBLY (30 FT.)
