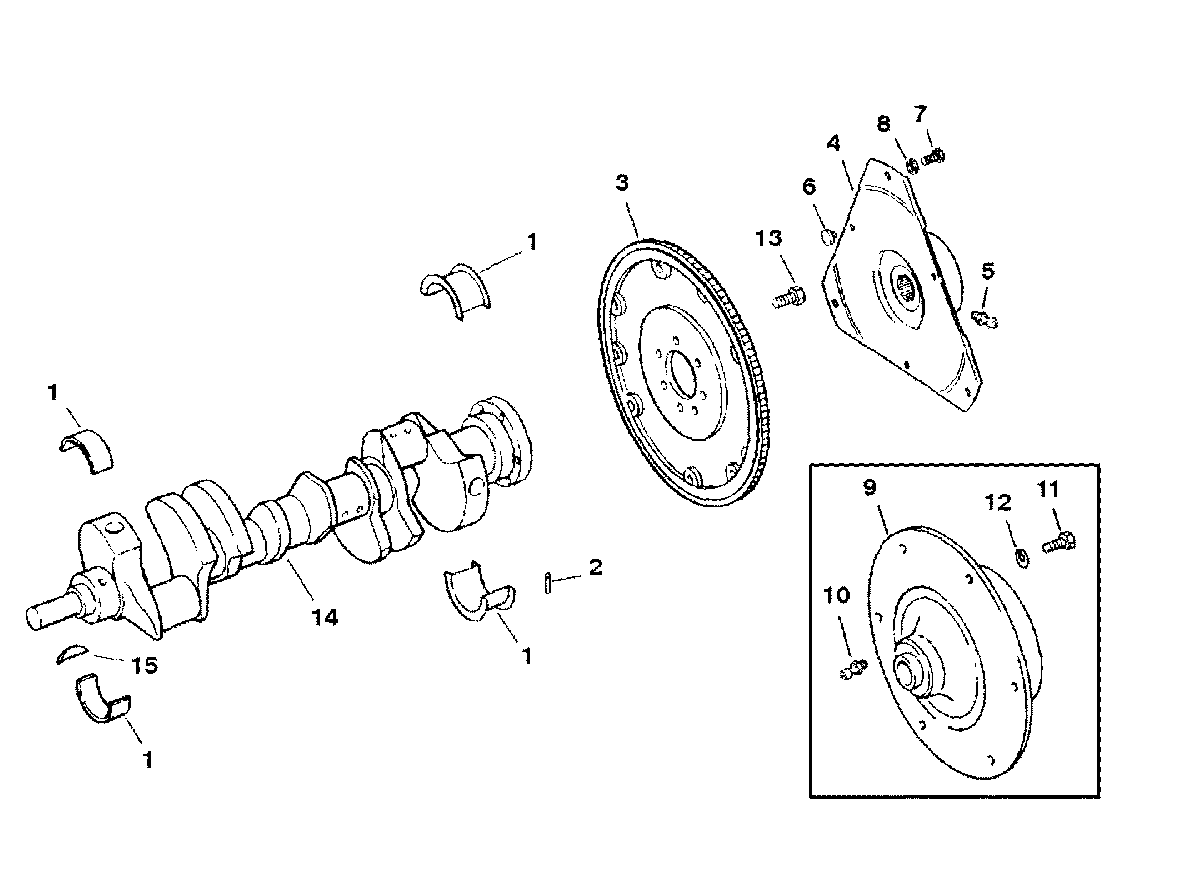

CRANKSHAFT AND FLYWHEEL для Mercruiser - 5.7L EFI (GEN+) REPOWER PLUS GM 350 V-8 ALL

  • №
    Артикул
    Название
  • 1
    23-818465 BEARING SET (STANDARD)
    BEARING SET (STANDARD)
  • 1
    23-818466 BEARING SET (.001 U.S.)
    BEARING SET (.001 U.S.)
  • 1
    23-818467 BEARING SET (.010 U.S.)
    BEARING SET (.010 U.S.)
  • 1
    23-818468 BEARING SET (.020 U.S.)
    BEARING SET (.020 U.S.)
  • 2
    17-43504 PIN-DOWEL (1/4 IN.)
    PIN-DOWEL (1/4 IN.)
  • 3
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 4
    18643A5 COUPLING
    350 MAGNUM ALPHA
    COUPLING
    350 MAGNUM ALPHA
  • 5
    22-74036 FITTING-GREASE
    350 MAGNUM ALPHA
    FITTING-GREASE
    350 MAGNUM ALPHA
  • 6
    18644 RUBBER BUMPER
    350 MAGNUM ALPHA
    RUBBER BUMPER
    350 MAGNUM ALPHA
  • 7
    10-14883 SCREW (3/8-16 X 1-1/8 IN.)
    350 MAGNUM ALPHA
    SCREW (3/8-16 X 1-1/8 IN.)
    350 MAGNUM ALPHA
  • 8
    12-13510 WASHER
    350 MAGNUM ALPHA
    WASHER
    350 MAGNUM ALPHA
  • 9
    8M0098795 COUPLING ASSEMBLY
    5.7LX BRAVO
    COUPLING ASSEMBLY
    5.7LX BRAVO
  • 10
    22-49099 FITTING-GREASE
    5.7LX BRAVO
    FITTING-GREASE
    5.7LX BRAVO
  • 11
    10-14883 SCREW (3/8-16 X 1-1/8 IN.)
    5.7LX BRAVO
    SCREW (3/8-16 X 1-1/8 IN.)
    5.7LX BRAVO
  • 12
    12-20572 WASHER
    5.7LX BRAVO
    WASHER
    5.7LX BRAVO
  • 13
    10-845757 SCREW (7/16-20 X 1 IN.)
    SCREW (7/16-20 X 1 IN.)
  • 14
    429-8M0054508 CRANKSHAFT
    CRANKSHAFT
  • 15
    28-34466 KEY
    KEY
