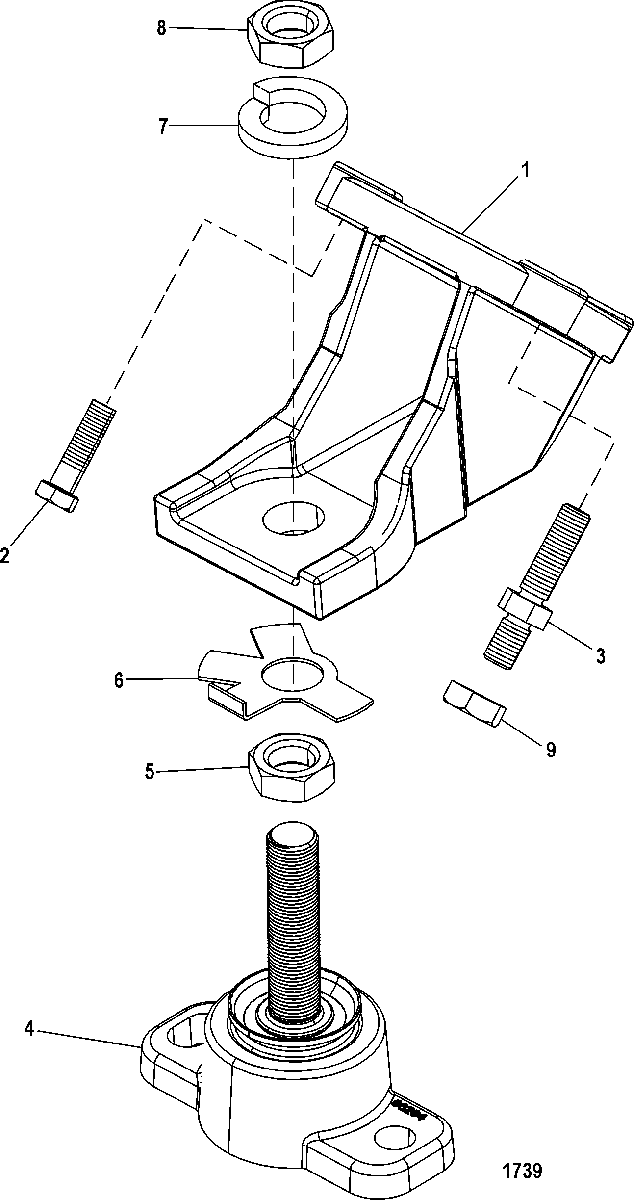

Engine Mounts для Mercruiser - 5.7L CARB ALPHA/BRAVO 0W300755 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, Mount
    BRACKET, Mount
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 4
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 6
    14-12657 TAB WASHER, Tab
    TAB WASHER, Tab
  • 7
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 8
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 9
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
