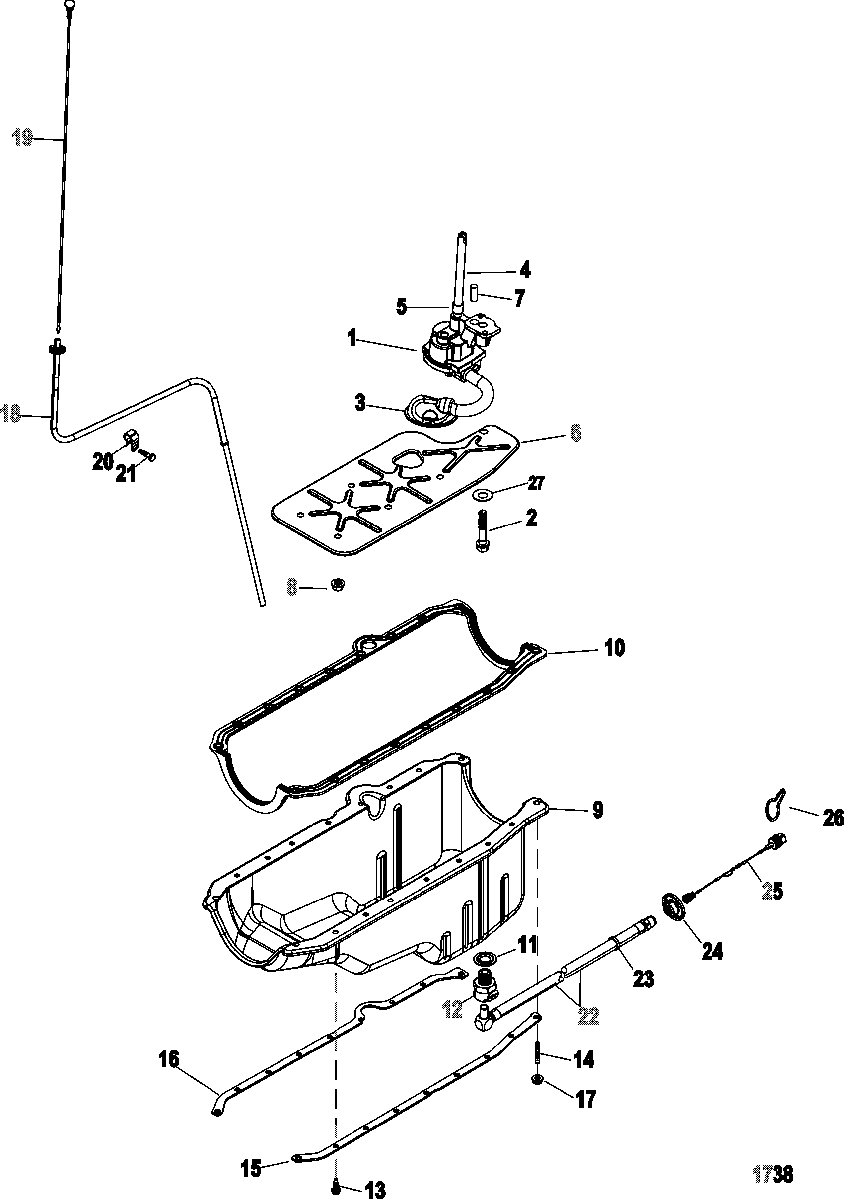

Oil Pan and Oil Pump для Mercruiser - 5.7L CARB ALPHA/BRAVO 0M600000 THRU 0W300754

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    809909 SCREEN, Oil Pump Pick Up
    SCREEN, Oil Pump Pick Up
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    986021 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 7
    17-843378 PIN, Dowel (1/4 In. Diameter), Alignment,Oil Pump
    PIN, Dowel (1/4 In. Diameter), Alignment,Oil Pump
  • 8
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 9
    809910 PAN, Oil
    PAN, Oil
  • 10
    27-138651 GASKET, Oil Pan
    GASKET, Oil Pan
  • 11
    27-8M0077608 GASKET, Drain Screw
    GASKET, Drain Screw
  • 12
    22-862811 FITTING, Female Quick Connect
    (Design I - With Quick Connect Hose Assembly) SN# 0M642774 & Below
    FITTING, Female Quick Connect
    (Design I - With Quick Connect Hose Assembly) SN# 0M642774 & Below
  • 13
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 14
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 15
    14257 REINFORCEMENT
    (Port)
    REINFORCEMENT
    (Port)
  • 16
    14256 REINFORCEMENT
    (Starboard)
    REINFORCEMENT
    (Starboard)
  • 17
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 18
    862704A4 TUBE, Dipstick
    TUBE, Dipstick
  • 19
    861942T9 DIPSTICK, Oil Level
    DIPSTICK, Oil Level
  • 20
    54-805625 CLIP, Dipsitck Tube
    CLIP, Dipsitck Tube
  • 21
    10-8M0040582 SCREW, (.250-20 x .563)
    SCREW, (.250-20 x .563)
  • 22
    32-805505A4 HOSE, Oil Drain
    (Design I - With Quick Connect Hose Assembly) SN# 0M642774 & Below
    HOSE, Oil Drain
    (Design I - With Quick Connect Hose Assembly) SN# 0M642774 & Below
  • 22
    32-865281 HOSE, Oil Drain
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M642775 & Up
    HOSE, Oil Drain
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M642775 & Up
  • 22
    32-865280 HOSE, Oil Drain (Jackshaft Models)
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M642775 & Up
    HOSE, Oil Drain (Jackshaft Models)
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M642775 & Up
  • 23
    54-863481 CLAMP, Ty Strap
    CLAMP, Ty Strap
  • 24
    862777 FLANGE, Drain
    FLANGE, Drain
  • 25
    862827 TETHER ASSEMBLY
    TETHER ASSEMBLY
  • 26
    54-805524 CLIP
    CLIP
  • 27
    12-27339 WASHER
    WASHER
  • -
    8M0088396 LONGBLOCK ASSEMBLY
    (5.0L)
    LONGBLOCK ASSEMBLY
    (5.0L)
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    (5.7L)
    LONGBLOCK ASSEMBLY
    (5.7L)
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
