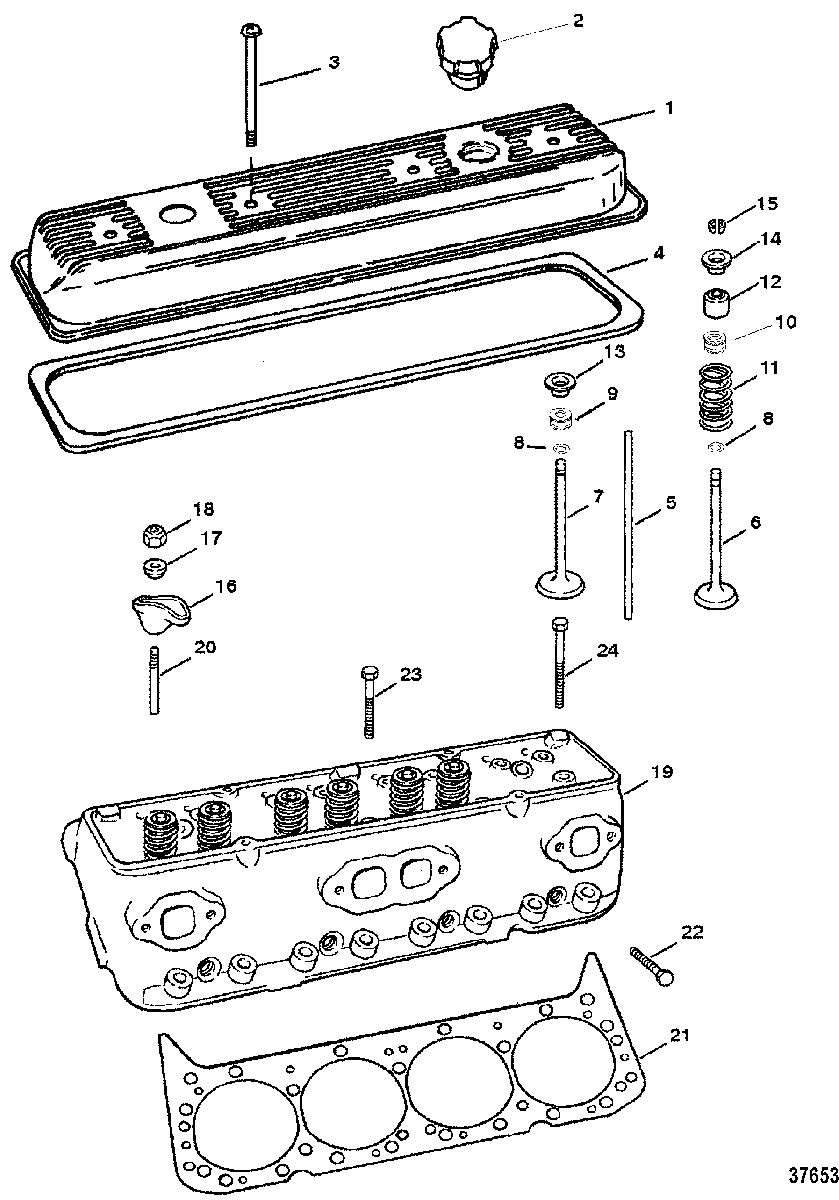

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    COVER, Rocker
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    99948 PUSH ROD
    USE WITH FLAT LIFTER
    PUSH ROD
    USE WITH FLAT LIFTER
  • 5
    173391 PUSH ROD
    USE WITH ROLLER LIFTER
    PUSH ROD
    USE WITH ROLLER LIFTER
  • 6
    850095 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 6
    850096 VALVE, Exhaust
    (.015 O.S.)
    VALVE, Exhaust
    (.015 O.S.)
  • 7
    97661 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 7
    97662 VALVE, Intake
    (.015 O.S.)
    VALVE, Intake
    (.015 O.S.)
  • 8
    26-34217 SEAL
    (INTAKE AND EXHAUST)
    SEAL
    (INTAKE AND EXHAUST)
  • 9
    26-8M0050563 SEAL
    (INTAKE)
    SEAL
    (INTAKE)
  • 10
    26-852936 SEAL
    (EXHAUST)
    SEAL
    (EXHAUST)
  • 11
    24-48347 SPRING
    SPRING
  • 12
    34518001 SHIELD
    SHIELD
  • 13
    48348 CAP
    (INTAKE)
    CAP
    (INTAKE)
  • 14
    11965 ROTATOR
    (EXHAUST)
    ROTATOR
    (EXHAUST)
  • 15
    28-547971 KEY
    KEY
  • 16
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 17
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 18
    11-34516 NUT
    NUT
  • 19
    938-883490R1 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 20
    16-34522 STUD
    (.003 O.S.)
    STUD
    (.003 O.S.)
  • 20
    16-34521 STUD
    (.013 O.S.)
    STUD
    (.013 O.S.)
  • 21
    27-75611001 GASKET
    GASKET
  • 22
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 23
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 24
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
