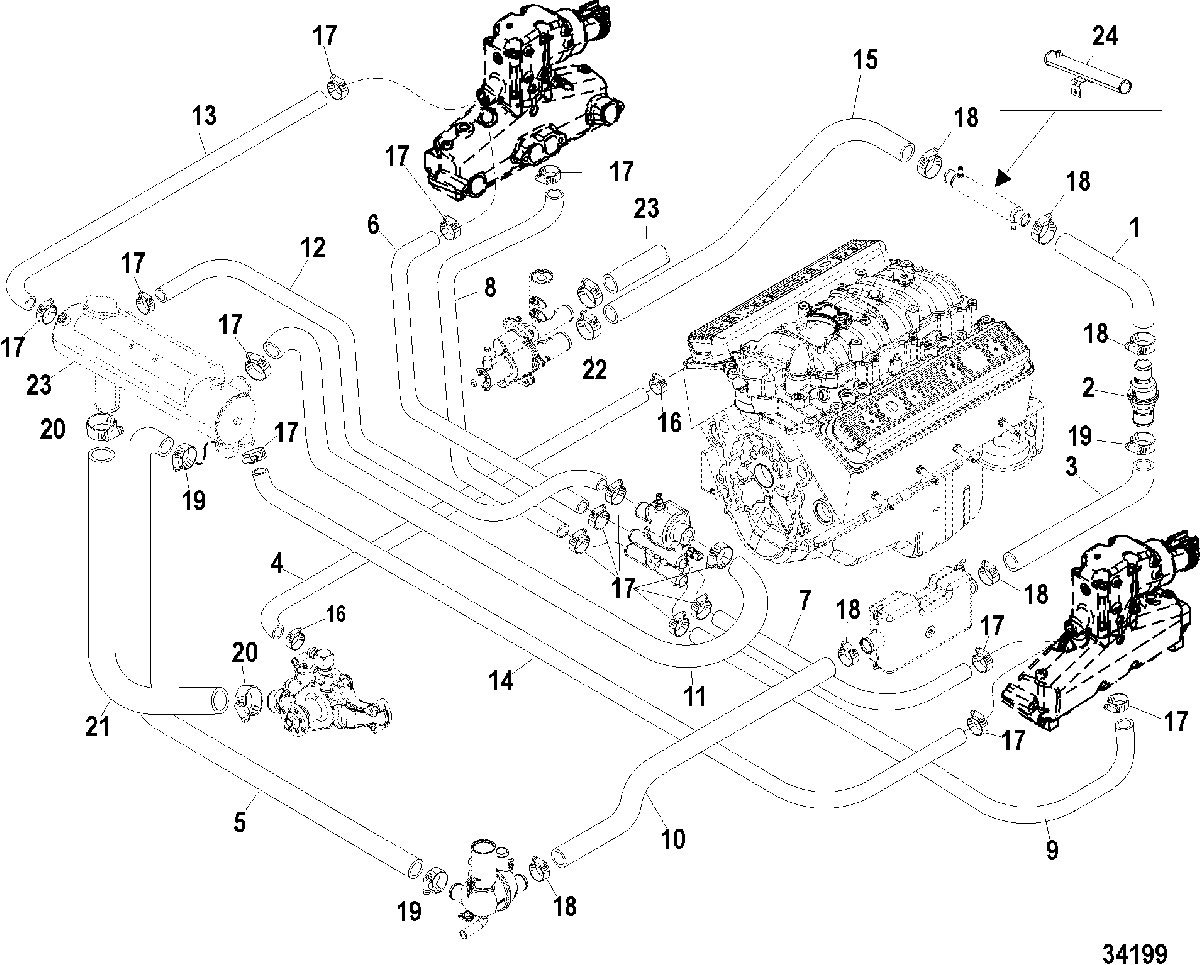

Closed Cooling System, ALPHA для Mercruiser - 5.0L MPI ALPHA/BRAVO 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Power Steering to Check Valve
    HOSE, Power Steering to Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863623 HOSE, Check Valve to Fuel Cooler
    HOSE, Check Valve to Fuel Cooler
  • 4
    32-864551 HOSE, Intake Bypass to Circulating Pump
    HOSE, Intake Bypass to Circulating Pump
  • 5
    32-864431 HOSE, Distribution Fitting to Heat Exchanger
    HOSE, Distribution Fitting to Heat Exchanger
  • 6
    32-864539 HOSE, Thermostat Housing to Upper Manifold
    Starboard, Non- Riser
    HOSE, Thermostat Housing to Upper Manifold
    Starboard, Non- Riser
  • 6
    32-864956 HOSE, Thermostat Housing to Upper Manifold
    Starboard (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
    HOSE, Thermostat Housing to Upper Manifold
    Starboard (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
  • 7
    32-864552 HOSE, Thermostat Housing to Upper Manifold
    Port, Non-Riser
    HOSE, Thermostat Housing to Upper Manifold
    Port, Non-Riser
  • 7
    32-864954 HOSE, Thermostat Housing to Upper Manifold
    Port (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
    HOSE, Thermostat Housing to Upper Manifold
    Port (1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
  • 8
    32-864509 HOSE, Thermostat Housing to Lower Manifold
    Starboard
    HOSE, Thermostat Housing to Lower Manifold
    Starboard
  • 9
    32-864508 HOSE, Thermostat Housing to Lower Manifold
    Port
    HOSE, Thermostat Housing to Lower Manifold
    Port
  • 10
    32-863670 HOSE, Fuel Cooler to Accumulator Housing
    HOSE, Fuel Cooler to Accumulator Housing
  • 11
    32-864506 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 12
    32-864507 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 13
    32-8M2005027 HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
  • 13
    32-864955 HOSE, Heat Exchanger to Starboard Elbow
    (4.7 Inch and 6 Inch Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (4.7 Inch and 6 Inch Riser)
  • 14
    32-864726 HOSE, Heat Exchanger to Port Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
    HOSE, Heat Exchanger to Port Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
  • 14
    32-864953 HOSE, Heat Exchanger to Port Elbow
    (4.7 Inch and 6 Inch Riser)
    HOSE, Heat Exchanger to Port Elbow
    (4.7 Inch and 6 Inch Riser)
  • 15
    32-863611 HOSE, Sea Pump to Power Steering Cooler
    HOSE, Sea Pump to Power Steering Cooler
  • 16
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 18
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 19
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 21
    32-864886 HOSE, Heat Exchanger to Circulating Pump
    HOSE, Heat Exchanger to Circulating Pump
  • 22
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 23
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up
  • 24
    863841T TUBE, Water, Brass
    Compact Hydralic Steering
    TUBE, Water, Brass
    Compact Hydralic Steering
