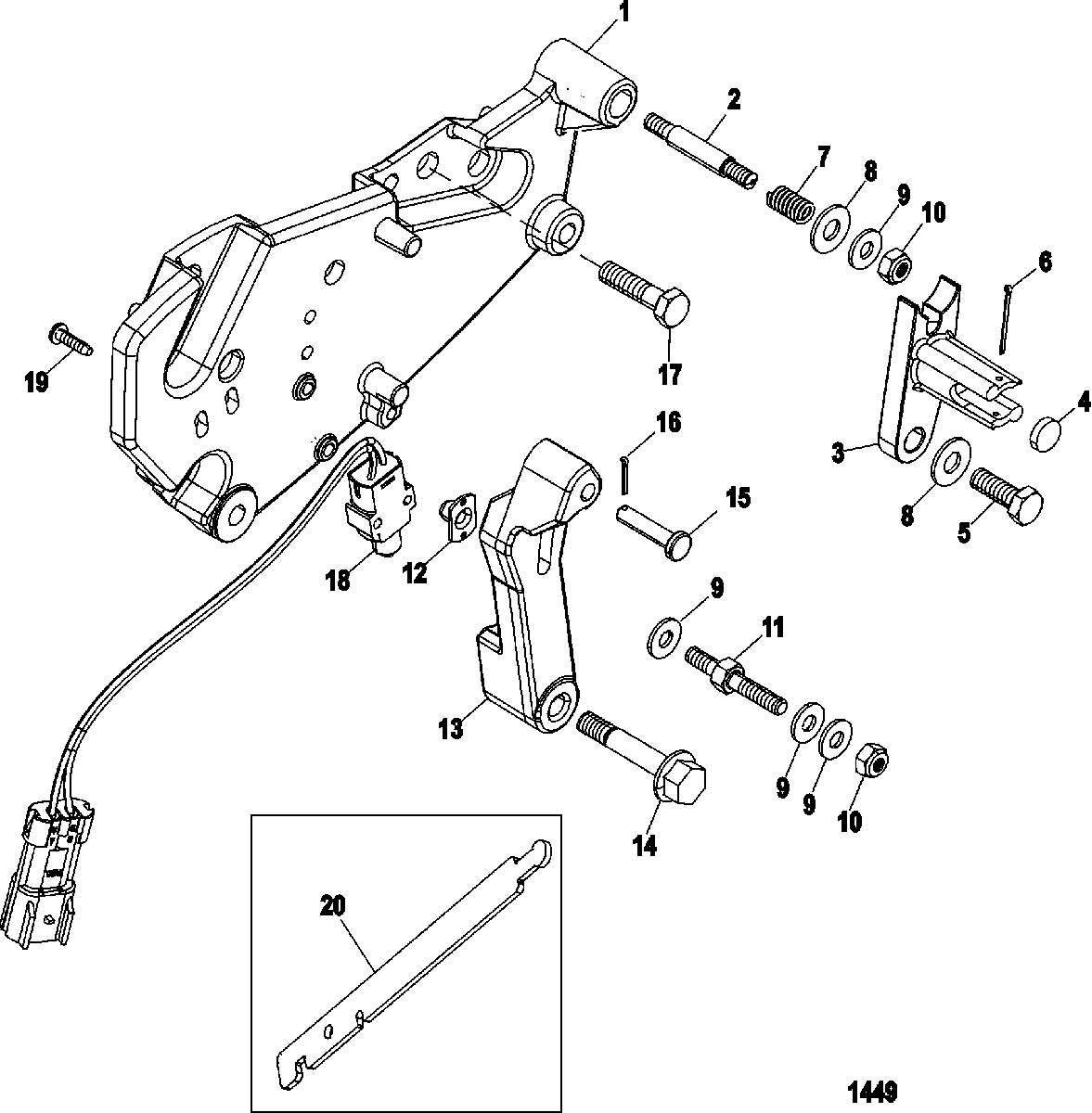

Shift Bracket(BRAVO)(SN-0M659999 and Below) для Mercruiser - 5.0L MPI ALPHA/BRAVO 0M600000 THRU 0W059999
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
216-865154A02 STUD, (.250-20/.250-28 x 2.120)STUD, (.250-20/.250-28 x 2.120)
-
3865434A02 RETAINERRETAINER
-
423-98828 SPACERSPACER
-
510-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1011-8267119 NUT, (.250-28)NUT, (.250-28)
-
1116-865393A02 STUD, (.250-28 x 1.90)STUD, (.250-28 x 1.90)
-
1211-63341 TEE NUTTEE NUT
-
13863911A12 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1410-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1517-68402 PIN, (.250 x 1.13), ClevisPIN, (.250 x 1.13), Clevis
-
1618-210711 COTTER PINCOTTER PIN
-
1710-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
1887-8M0052936 SWITCH ASSEMBLY, Gear IndicationSWITCH ASSEMBLY, Gear Indication
-
1910-88904 SCREW, (#8-18 x .620)SCREW, (#8-18 x .620)
-
2091-12427T TOOL, Shift AdjustTOOL, Shift Adjust
