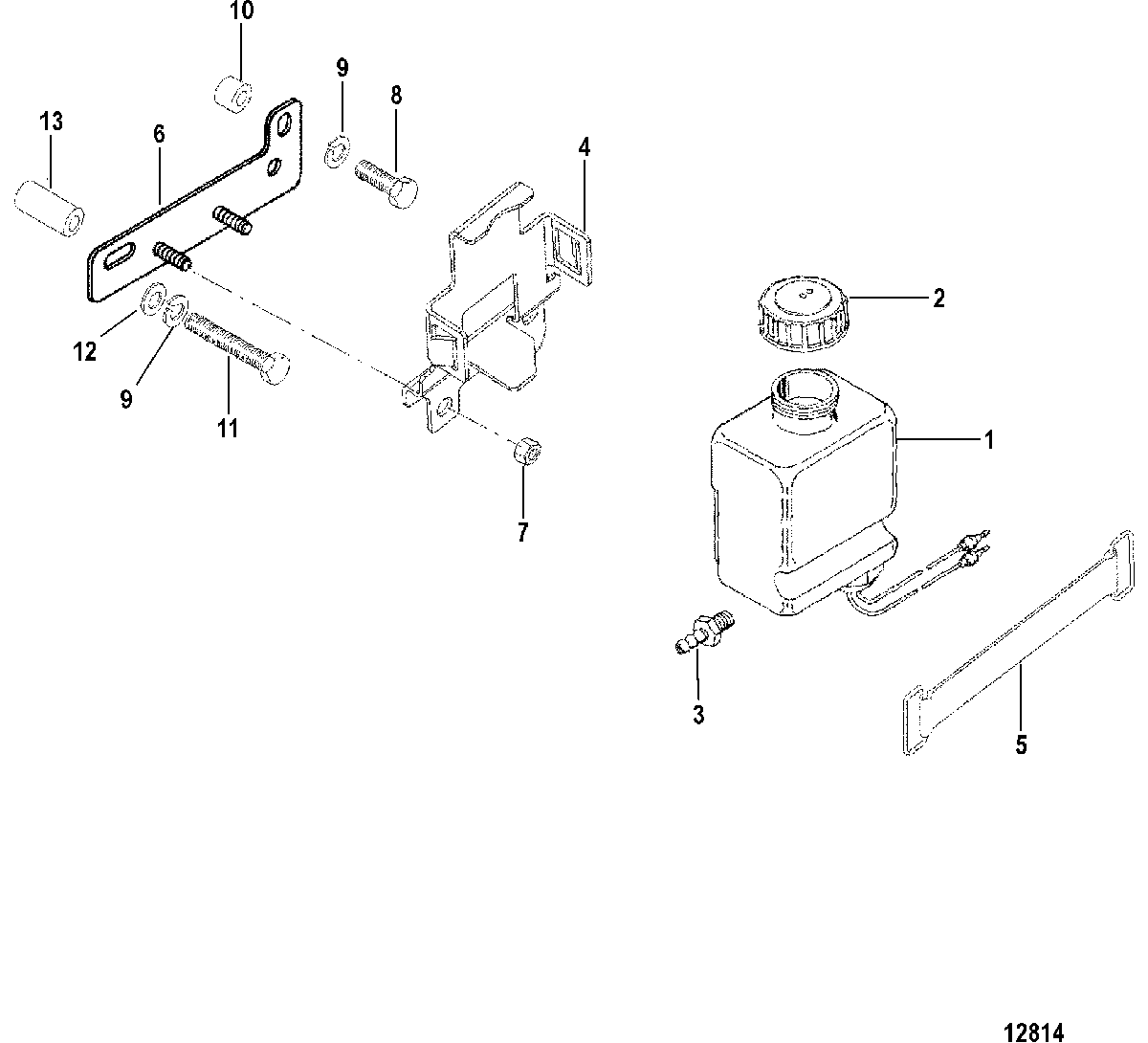

OIL RESERVOIR BOTTLE AND BRACKET для Mercruiser - 5.0L EFI GM 305 V-8 1998 0L012052 THRU 0L339999

  • №
    Артикул
    Название
  • 1
    8M0075709 RESERVOIR
    RESERVOIR
  • 2
    36-8067271 CAP, Drive Lube Monitor, Oil Bottle
    CAP, Drive Lube Monitor, Oil Bottle
  • 3
    22-808624 CONNECTOR
    CONNECTOR
  • 4
    860065A1 BRACKET KIT, Oil Bottle
    BRACKET KIT, Oil Bottle
  • 5
    808023T STRAP, Bracket
    STRAP, Bracket
  • 6
    805367T BRACKET
    BRACKET
  • 7
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 8
    10-37612 SCREW, (.375-16 x 1.250)
    STANDARD COOLING
    SCREW, (.375-16 x 1.250)
    STANDARD COOLING
  • 9
    13-35048 LOCKWASHER, (.375)
    STANDARD COOLING
    LOCKWASHER, (.375)
    STANDARD COOLING
  • 10
    23-91034 SPACER, (.380 x 1.00 x .530)
    STANDARD COOLING
    SPACER, (.380 x 1.00 x .530)
    STANDARD COOLING
  • 11
    10-26486 SCREW, (.375-16 x 2.375)
    STANDARD COOLING
    SCREW, (.375-16 x 2.375)
    STANDARD COOLING
  • 12
    12-20553 WASHER, (.406 x .734 x .063)
    STANDARD COOLING
    WASHER, (.406 x .734 x .063)
    STANDARD COOLING
  • 13
    23-15895 SPACER, (.38 x 1.00 x 1.44)
    STANDARD COOLING
    SPACER, (.38 x 1.00 x 1.44)
    STANDARD COOLING
  • 8
    10-34353 SCREW, (.375-16 x 1.00)
    CLOSED COOLING
    SCREW, (.375-16 x 1.00)
    CLOSED COOLING
  • 9
    13-35048 LOCKWASHER, (.375)
    CLOSED COOLING
    LOCKWASHER, (.375)
    CLOSED COOLING
  • 10
    23-905201 SPACER, (.750 x .250)
    CLOSED COOLING
    SPACER, (.750 x .250)
    CLOSED COOLING
  • 11
    10-358701 SCREW, (.375-16 x 2.00)
    CLOSED COOLING
    SCREW, (.375-16 x 2.00)
    CLOSED COOLING
  • 12
    12-20553 WASHER, (.406 x .734 x .063)
    CLOSED COOLING
    WASHER, (.406 x .734 x .063)
    CLOSED COOLING
  • 13
    23-861360 SPACER, (1.1875)
    CLOSED COOLING
    SPACER, (1.1875)
    CLOSED COOLING
