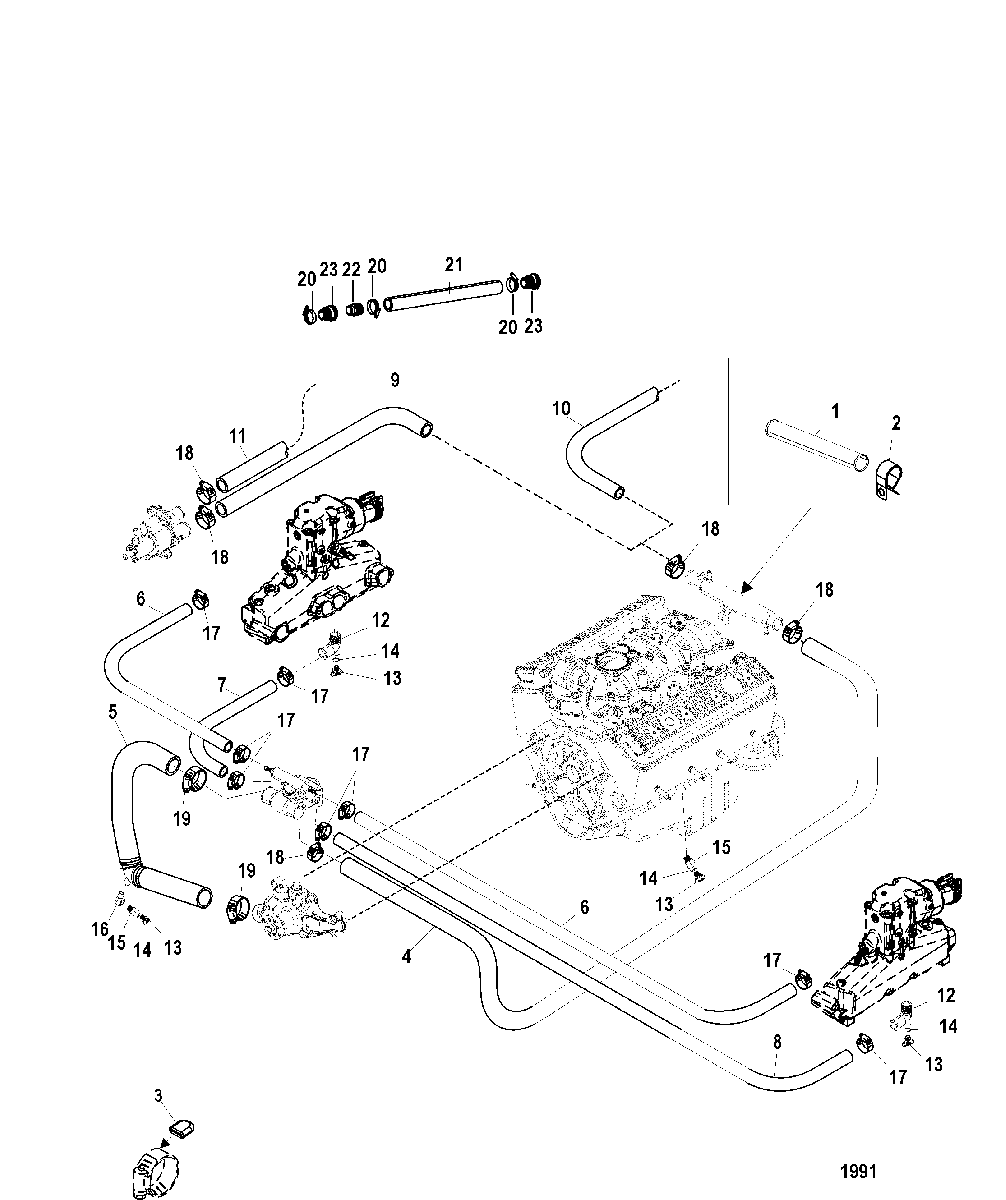

Standard Cooling System для Mercruiser - 5.0L CARB ALPHA/BRAVO 0W300010 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    860315A1 TUBE, Hose Extender(Compact Hydralic Steering)
    (Cut to 10.50 Inch Length)
    TUBE, Hose Extender(Compact Hydralic Steering)
    (Cut to 10.50 Inch Length)
  • 2
    54-806616 CLAMP
    (Compact Hydralic Steering)
    CLAMP
    (Compact Hydralic Steering)
  • 3
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 4
    32-865093 HOSE, Power Steering Cooler to Thermostat Housing
    HOSE, Power Steering Cooler to Thermostat Housing
  • 5
    32-861590A05 HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
    HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
  • 6
    32-864979 HOSE, Exhaust Elbow to Thermostat Housing
    (Starboard)
    HOSE, Exhaust Elbow to Thermostat Housing
    (Starboard)
  • 6
    32-864977 HOSE, Exhaust Elbow to Thermostat Housing
    (Port)
    HOSE, Exhaust Elbow to Thermostat Housing
    (Port)
  • 7
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 8
    32-862139 HOSE, Thermostat Housing to Port Exhaust Manifold
    HOSE, Thermostat Housing to Port Exhaust Manifold
  • 9
    32-8080441 HOSE, Molded, Sea Water Pump To Power Steering Cooler
    (Bravo)
    HOSE, Molded, Sea Water Pump To Power Steering Cooler
    (Bravo)
  • 10
    32-807661 HOSE, Transom Assembly to Power Steering Cooler
    (ALPHA)
    HOSE, Transom Assembly to Power Steering Cooler
    (ALPHA)
  • 11
    32-8M0062666 HOSE, Transom Water Pick Up To Sea Water Pump (36 IN.)
    (BRAVO)
    HOSE, Transom Water Pick Up To Sea Water Pump (36 IN.)
    (BRAVO)
  • 12
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 13
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 14
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 15
    22-860088 BUSHING
    BUSHING
  • 16
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    (1.56 Diameter.)
    CLAMP, Worm Gear (1.56 Diameter), Hose
    (1.56 Diameter.)
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter), Hose
    (1.98 DIameter)
  • 19
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter), Hose
    (2.50 Diameter)
  • 20
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 22
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 23
    22-865324 QUICK CONNECT
    QUICK CONNECT
