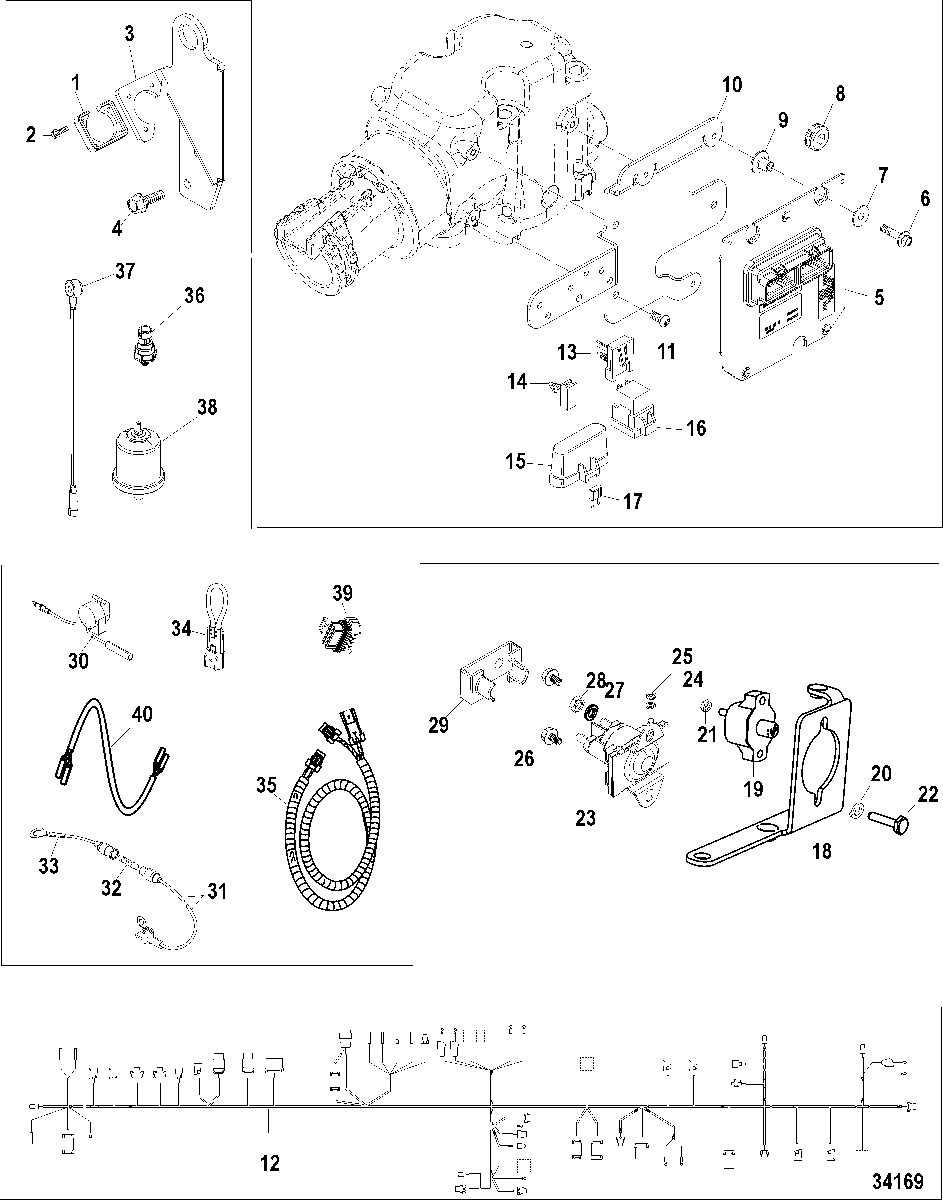

Electrical Components для Mercruiser - 383 MAG STROKER 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 2
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 3
    865480T BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    864273T07 ECM, Engine Control Module
    ECM, Engine Control Module
  • 5
    865008T04 ECM, Engine Control Module, Freshwater Cooling Models
    ECM, Engine Control Module, Freshwater Cooling Models
  • 6
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 7
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 8
    25-834985 GROMMET
    GROMMET
  • 9
    23-856954 BUSHING
    BUSHING
  • 10
    863424T BRACKET, ECM Mount
    BRACKET, ECM Mount
  • 11
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 12
    84-865454T02 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 13
    86-865205 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 14
    54-804352 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 15
    883562 COVER, Fuse
    COVER, Fuse
  • 16
    86-865202T RELAY
    RELAY
  • 17
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 18
    899719T01 BRACKET, Electrical Mounting
    BRACKET, Electrical Mounting
  • 19
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 20
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 21
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 22
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 23
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 24
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 25
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 26
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 28
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 29
    85-97861 INSULATOR, Starter Solenoid
    INSULATOR, Starter Solenoid
  • 30
    816492A15 ALARM KIT
    ALARM KIT
  • 31
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
  • 32
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 33
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    CABLE ASSEMBLY, (5.00 Inches) Red
  • 34
    864337A1 CONNECTOR, Black, Jumper
    CONNECTOR, Black, Jumper
  • 35
    84-862262A2 HARNESS ASSEMBLY, Boost Pump
    HARNESS ASSEMBLY, Boost Pump
  • 36
    8M6000623 SENSOR, Pressure - Power Steering Cooler
    SENSOR, Pressure - Power Steering Cooler
  • 36
    881879T11 SENSOR, Pressure (0 - 100 PSI), Oil
    SENSOR, Pressure (0 - 100 PSI), Oil
  • 37
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 38
    8M0068784 SENDER ASSEMBLY, Oil
    SENDER ASSEMBLY, Oil
  • 39
    8M3000055 CAP, Weather - Female
    CAP, Weather - Female
  • 40
    84-812733A2 HARNESS ASSEMBLY, Extension - Lube Bottle
    HARNESS ASSEMBLY, Extension - Lube Bottle
