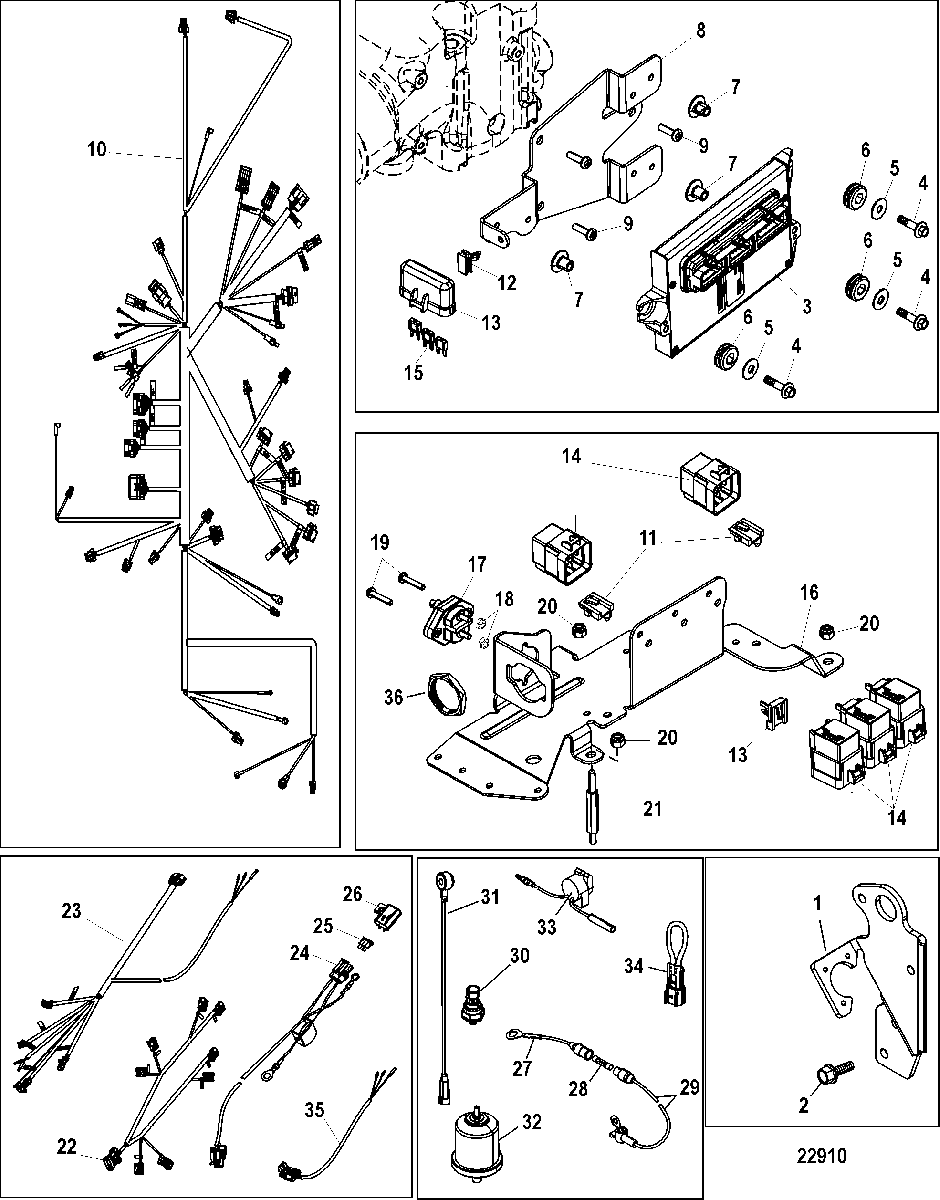

Electrical Components, Digital (SN 1A343328 and Up) для Mercruiser - 377 MAG MPI BRAVO 1A300000 THRU 1A611927
-
№АртикулНазвание
-
1865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
1879172T32 BRACKET, Harness Mounting/Lifting Eye
AxiusBRACKET, Harness Mounting/Lifting Eye
Axius -
210-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
378-8M0059269 ECM, Engine Control Module
5.0L MPI, Standard CoolingECM, Engine Control Module
5.0L MPI, Standard Cooling -
3879194T98 ECM, Engine Control Module
5.0L MPI, Standard Cooling, AxiusECM, Engine Control Module
5.0L MPI, Standard Cooling, Axius -
378-8M0059270 ECM, Engine Control Module
5.0L MPI, Closed CoolingECM, Engine Control Module
5.0L MPI, Closed Cooling -
3879194T99 ECM, Engine Control Module
5.0L MP, Closed Cooling, AxiusECM, Engine Control Module
5.0L MP, Closed Cooling, Axius -
378-8M0059271 ECM, Engine Control Module
350 MAG., Standard CoolingECM, Engine Control Module
350 MAG., Standard Cooling -
3879288T90 ECM, Engine Control Module
350 MAG., Standard Cooling, AxiusECM, Engine Control Module
350 MAG., Standard Cooling, Axius -
378-8M0059272 ECM, Engine Control Module
350 MAG, Closed CoolingECM, Engine Control Module
350 MAG, Closed Cooling -
3879288T91 ECM, Engine Control Module
350 MAG., Closed Cooling, AxiusECM, Engine Control Module
350 MAG., Closed Cooling, Axius -
3879194T43 ECM, Engine Control Module
377 MAG, Standard Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789ECM, Engine Control Module
377 MAG, Standard Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789 -
378-8M0059273 ECM, Engine Control Module
377 MAG, Standard Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & UpECM, Engine Control Module
377 MAG, Standard Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up -
3879355T81 ECM, Engine Control Module
377 MAG, Standard Cooling, Axius SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789ECM, Engine Control Module
377 MAG, Standard Cooling, Axius SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789 -
3879194T16 ECM, Engine Control Module
377 MAG, Standard Cooling, Axius SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & UpECM, Engine Control Module
377 MAG, Standard Cooling, Axius SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up -
3879194T44 ECM, Engine Control Module
377 MAG, Closed Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789ECM, Engine Control Module
377 MAG, Closed Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789 -
378-8M0059274 ECM, Engine Control Module
377 MAG, Closed Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & UpECM, Engine Control Module
377 MAG, Closed Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up -
3879355T82 ECM, Engine Control Module
377 MAG, Closed Cooling, Axius SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789ECM, Engine Control Module
377 MAG, Closed Cooling, Axius SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789 -
3879194T17 ECM, Engine Control Module
377 MAG, Closed Cooling, Axius SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & UpECM, Engine Control Module
377 MAG, Closed Cooling, Axius SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up -
410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
512-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
625-834985 GROMMETGROMMET
-
723-856954 BUSHINGBUSHING
-
8865479T01 BRACKET, ECM MountBRACKET, ECM Mount
-
910-860008 SCREW, (.250-20 x .625) TorxSCREW, (.250-20 x .625) Torx
-
10899719T06 HARNESS ASSEMBLY, Main Engine
Digital Throttle and ShiftHARNESS ASSEMBLY, Main Engine
Digital Throttle and Shift -
1084-879288T88 HARNESS ASSEMBLY, Main Engine
Digital Throttle and Shift (Axius) (SEE NOTE 1)HARNESS ASSEMBLY, Main Engine
Digital Throttle and Shift (Axius) (SEE NOTE 1) -
1186-865205 CLIP, Relay MountingCLIP, Relay Mounting
-
1254-804352 CLIP, Fuse Block MountingCLIP, Fuse Block Mounting
-
13883562 COVER, FuseCOVER, Fuse
-
14882751 RELAYRELAY
-
1588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
16865483T BRACKET, Circuit Breaker and RelaysBRACKET, Circuit Breaker and Relays
-
1788-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1910-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
2011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2116-863439 STUDSTUD
-
2284-865983T01 HARNESS ASSEMBLY, InjectorsHARNESS ASSEMBLY, Injectors
-
2384-865677T01 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
2484-8M0113732 HARNESS ASSEMBLY, Clean PowerHARNESS ASSEMBLY, Clean Power
-
25862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
26828054 COVER, FuseCOVER, Fuse
-
2784-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BravoCABLE ASSEMBLY, (5.00 Inches) Red
Bravo -
2888-79091 FUSE, 20 Ampere
BravoFUSE, 20 Ampere
Bravo -
2984-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BravoCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
Bravo -
308M6000623 SENSOR, Pressure
Power Steering CoolerSENSOR, Pressure
Power Steering Cooler -
30881879T11 SENSOR, Pressure (0 - 100 PSI), OilSENSOR, Pressure (0 - 100 PSI), Oil
-
318M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
328M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
3237293T SENDER ASSEMBLY, Oil
Dual StationSENDER ASSEMBLY, Oil
Dual Station -
33816492A15 ALARM KITALARM KIT
-
34864337A1 CONNECTOR, Black, Jumper
Black WireCONNECTOR, Black, Jumper
Black Wire -
3584-865774T01 HARNESS ASSEMBLY, Trim PumpHARNESS ASSEMBLY, Trim Pump
-
3611-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
