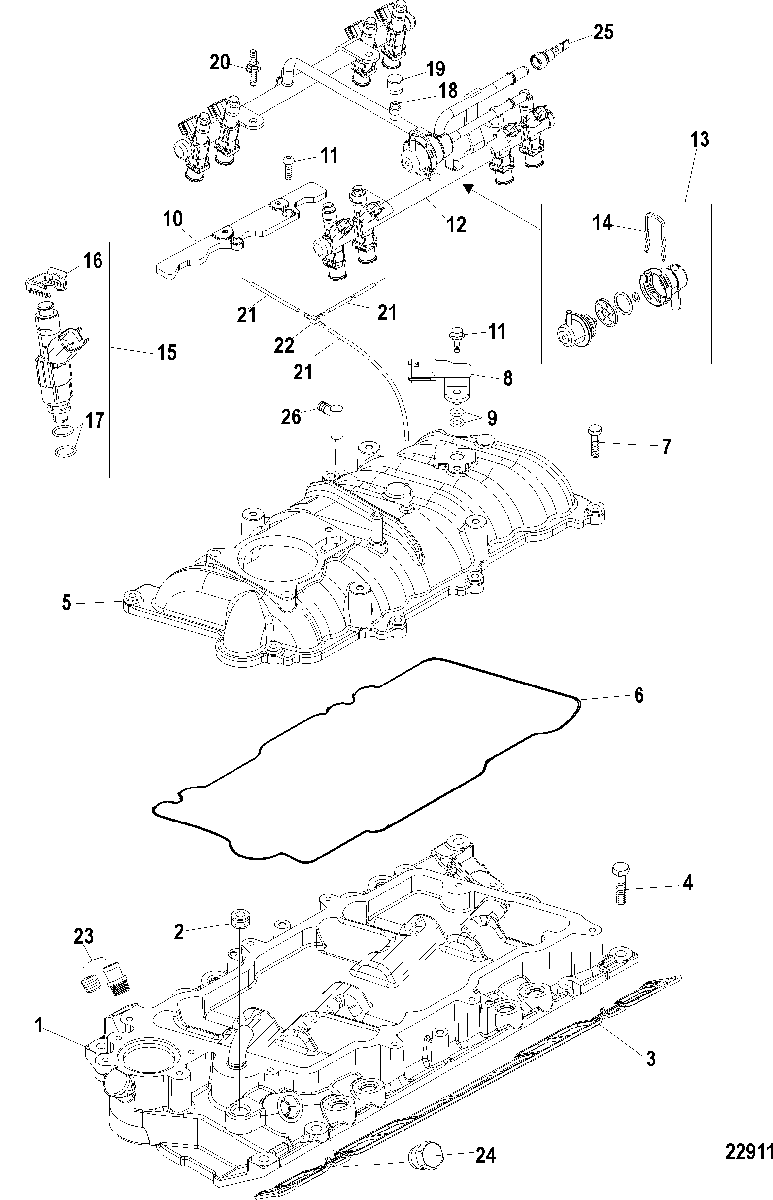

Intake Manifold and Fuel Rail для Mercruiser - 377 MAG MPI BRAVO EC 1A611928 THRU 1A623184

  • №
    Артикул
    Название
  • 1
    8M0097032 MANIFOLD, Intake, Lower
    MANIFOLD, Intake, Lower
  • 2
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 3
    27-807473A1 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 4
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 5
    8M0097033 MANIFOLD, Intake, Upper
    MANIFOLD, Intake, Upper
  • 6
    27-8M0097034 GASKET, Intake Manifold
    GASKET, Intake Manifold
  • 7
    10-885166 SCREW
    SCREW
  • 8
    8M0087834 SENSOR, Manifold Air Pressure and Temperature
    SENSOR, Manifold Air Pressure and Temperature
  • 9
    25-881733 SEAL
    SEAL
  • 10
    NSS NOT SOLD SEPARATE, Bracket
    Component of 885164
    NOT SOLD SEPARATE, Bracket
    Component of 885164
  • 11
    10-885180 SCREW
    SCREW
  • 12
    8M0070997 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 13
    885174 REGULATOR, Fuel Pressure
    REGULATOR, Fuel Pressure
  • 14
    885175 CLIP, Retaining
    CLIP, Retaining
  • 15
    879312003 INJECTOR
    INJECTOR
  • 16
    8M2001570 RETAINER, Injector
    RETAINER, Injector
  • 17
    25-8M0046869 O-RING KIT
    O-RING KIT
  • 18
    885178 VALVE, Fuel Pressure Service
    VALVE, Fuel Pressure Service
  • 19
    885179 CAP, Fuel Pressure Sevice Valve
    CAP, Fuel Pressure Sevice Valve
  • 20
    10-885180 SCREW
    SCREW
  • 21
    32-8M0063567 HOSE, (58.00 Inches Bulk), Cut to Appropriate Length
    HOSE, (58.00 Inches Bulk), Cut to Appropriate Length
  • 22
    22-806689 FITTING, Tee
    FITTING, Tee
  • 23
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 23
    22-806242 CONNECTOR, Barb
    Closed Cooling
    CONNECTOR, Barb
    Closed Cooling
  • 24
    22-866157 PLUG, EGR Port
    PLUG, EGR Port
  • 25
    22-8623601 PLUG, Fuel Rail Block Off
    PLUG, Fuel Rail Block Off
  • 26
    22-863432T FITTING, 90 Degree Vent
    FITTING, 90 Degree Vent
