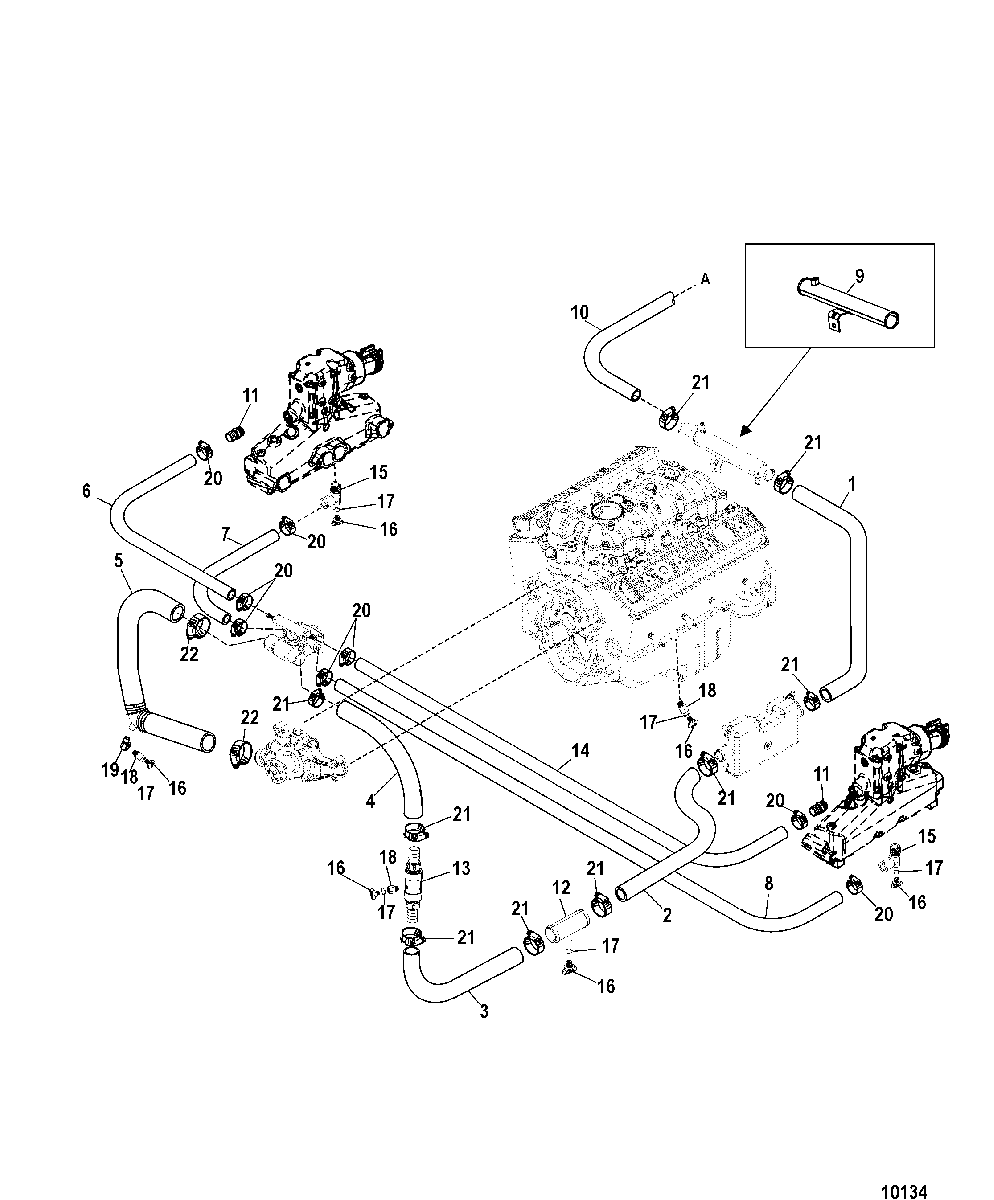

Standard Cooling System (ALPHA)(7 Point Drain) для Mercruiser - 350 MPI ALPHA 1G400000 & Up
-
№АртикулНазвание
-
132-8600891 HOSE, Molded, Power Steering to Fuel CoolerHOSE, Molded, Power Steering to Fuel Cooler
-
232-866331 HOSE, Fuel Cooler to Drain Fitting
(Cut to Length)HOSE, Fuel Cooler to Drain Fitting
(Cut to Length) -
332-864578 HOSE, Drain Fitting to Check ValveHOSE, Drain Fitting to Check Valve
-
432-864579 HOSE, Check Valve to Thermostat HousingHOSE, Check Valve to Thermostat Housing
-
532-864703A1 HOSE, Circulating Pump to Drain ElbowHOSE, Circulating Pump to Drain Elbow
-
632-864979 HOSE, Starboard Exhaust Elbow to Thermostat HousingHOSE, Starboard Exhaust Elbow to Thermostat Housing
-
732-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
832-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
9863841T TUBE, Water, Brass
(Compact Hydralic Steering)TUBE, Water, Brass
(Compact Hydralic Steering) -
1032-807661 HOSE, Transom Assembly to Power Steering CoolerHOSE, Transom Assembly to Power Steering Cooler
-
1122-866725 FITTING, Straight (.750-14), BarbFITTING, Straight (.750-14), Barb
-
12861505 FITTING, Drain TeeFITTING, Drain Tee
-
1321-862271A1 CHECK VALVECHECK VALVE
-
1432-864435 HOSE, Port Exhaust Elbow to Thermostat HousingHOSE, Port Exhaust Elbow to Thermostat Housing
-
1522-862210A01 ELBOW KIT, DrainELBOW KIT, Drain
-
1622-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1725-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1822-860088 BUSHINGBUSHING
-
1922-46982 FITTING, (90 Degree)FITTING, (90 Degree)
-
2054-815504216 CLAMP, Worm Gear (1.56 Diameter), HoseCLAMP, Worm Gear (1.56 Diameter), Hose
-
2154-815504222 CLAMP, Worm Gear (1.98 DIameter), HoseCLAMP, Worm Gear (1.98 DIameter), Hose
-
2254-815504228 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
