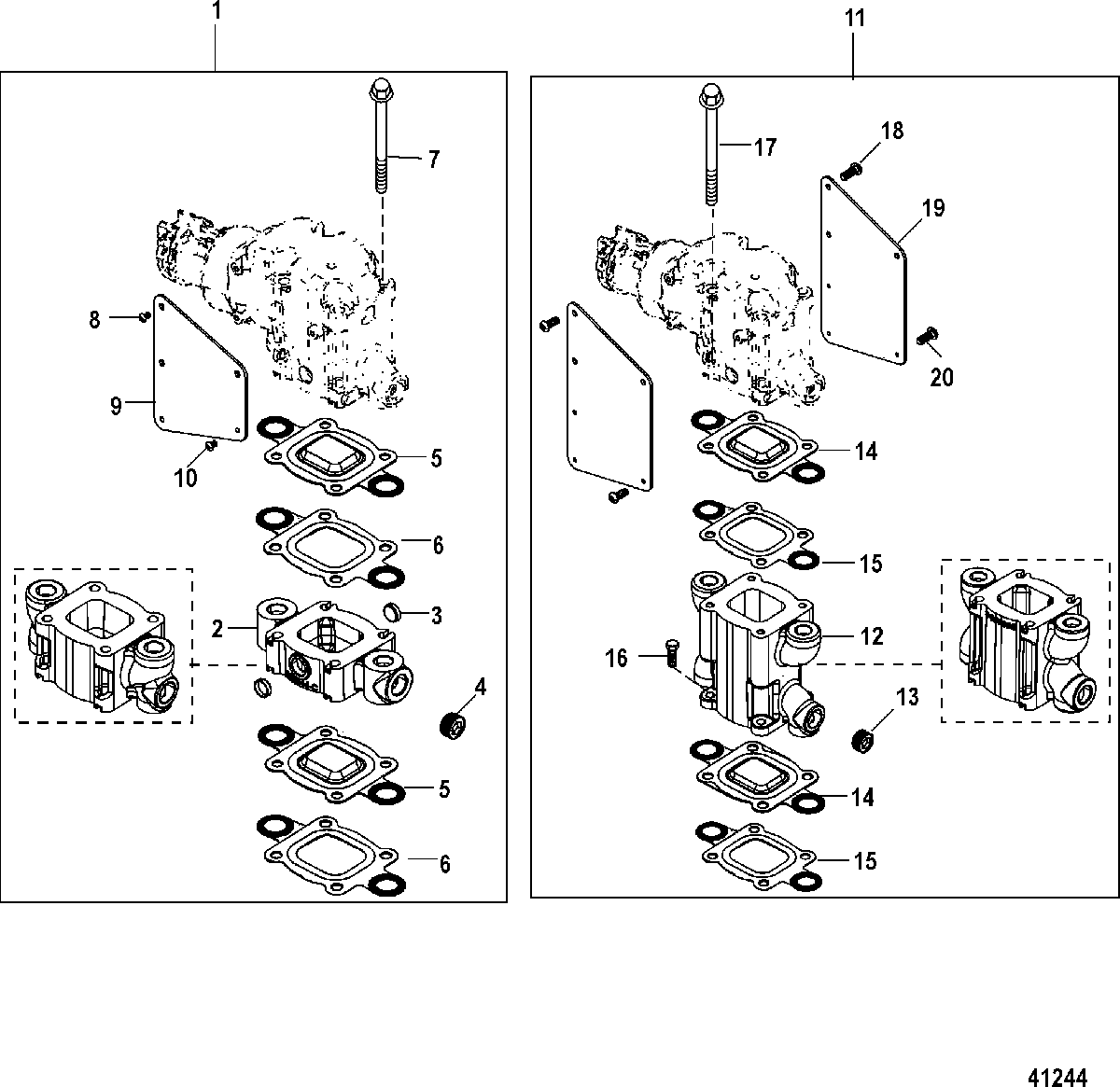

Exhaust Risers для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W650000 THRU 1A299999

  • №
    Артикул
    Название
  • 1
    865995A01 RISER EXTENSION KIT, 1.7 Inch
    Standard Cooling
    RISER EXTENSION KIT, 1.7 Inch
    Standard Cooling
  • 1
    865996A01 RISER EXTENSION KIT, 1.7 Inch
    Closed Cooling
    RISER EXTENSION KIT, 1.7 Inch
    Closed Cooling
  • 1
    864929A3 RISER EXTENSION KIT, 3 Inch
    Standard Cooling
    RISER EXTENSION KIT, 3 Inch
    Standard Cooling
  • 1
    864929A4 RISER EXTENSION KIT, 3 Inch
    Closed Cooling
    RISER EXTENSION KIT, 3 Inch
    Closed Cooling
  • 2
    NSS NOT SOLD SEPARATE, 1.7 Inch or 3 Inch Riser
    NOT SOLD SEPARATE, 1.7 Inch or 3 Inch Riser
  • 3
    19-864689 PLUG, Expansion
    1.7 Inch Riser
    PLUG, Expansion
    1.7 Inch Riser
  • 4
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 5
    27-864850A02 GASKET, Restrictor
    GASKET, Restrictor
  • 5
    27-864549A02 GASKET, Block Off
    GASKET, Block Off
  • 6
    27-864547A02 GASKET, Full Flow
    GASKET, Full Flow
  • 7
    10-865982071 SCREW, (.375-16 x 9.250)
    (1.7 Inch Riser Kit)
    SCREW, (.375-16 x 9.250)
    (1.7 Inch Riser Kit)
  • 7
    10-865982077 SCREW, (.375-16 x 10.500)
    (3 Inch Riser Kit)
    SCREW, (.375-16 x 10.500)
    (3 Inch Riser Kit)
  • 8
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 9
    863714T01 BRACKET
    BRACKET
  • 10
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 11
    866208A02 RISER EXTENSION KIT, 4.7 Inch
    Standard Cooling
    RISER EXTENSION KIT, 4.7 Inch
    Standard Cooling
  • 11
    866208A03 RISER EXTENSION KIT, 4.7 Inch
    Closed Cooling
    RISER EXTENSION KIT, 4.7 Inch
    Closed Cooling
  • 11
    864908A1 RISER EXTENSION KIT, 6 Inch
    Standard Cooling
    RISER EXTENSION KIT, 6 Inch
    Standard Cooling
  • 11
    864908A2 RISER EXTENSION KIT, 6 Inch
    Closed Cooling
    RISER EXTENSION KIT, 6 Inch
    Closed Cooling
  • 12
    NSS NOT SOLD SEPARATE, 6 Inch or 4.7 Inch Riser
    NOT SOLD SEPARATE, 6 Inch or 4.7 Inch Riser
  • 13
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 14
    27-864850A02 GASKET, Restrictor
    GASKET, Restrictor
  • 14
    27-864549A02 GASKET, Block Off
    GASKET, Block Off
  • 15
    27-864547A02 GASKET, Full Flow
    GASKET, Full Flow
  • 16
    10-865982005 SCREW, (.375-16 x 1.00)
    6 Inch Riser
    SCREW, (.375-16 x 1.00)
    6 Inch Riser
  • 17
    10-865982092 SCREW, (.375-16 x 12.380)
    4.7 Inch Riser
    SCREW, (.375-16 x 12.380)
    4.7 Inch Riser
  • 17
    10-865982057 SCREW, (.375-16 x 7.50)
    6 Inch Riser
    SCREW, (.375-16 x 7.50)
    6 Inch Riser
  • 18
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 19
    863715T01 BRACKET
    BRACKET
  • 20
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
