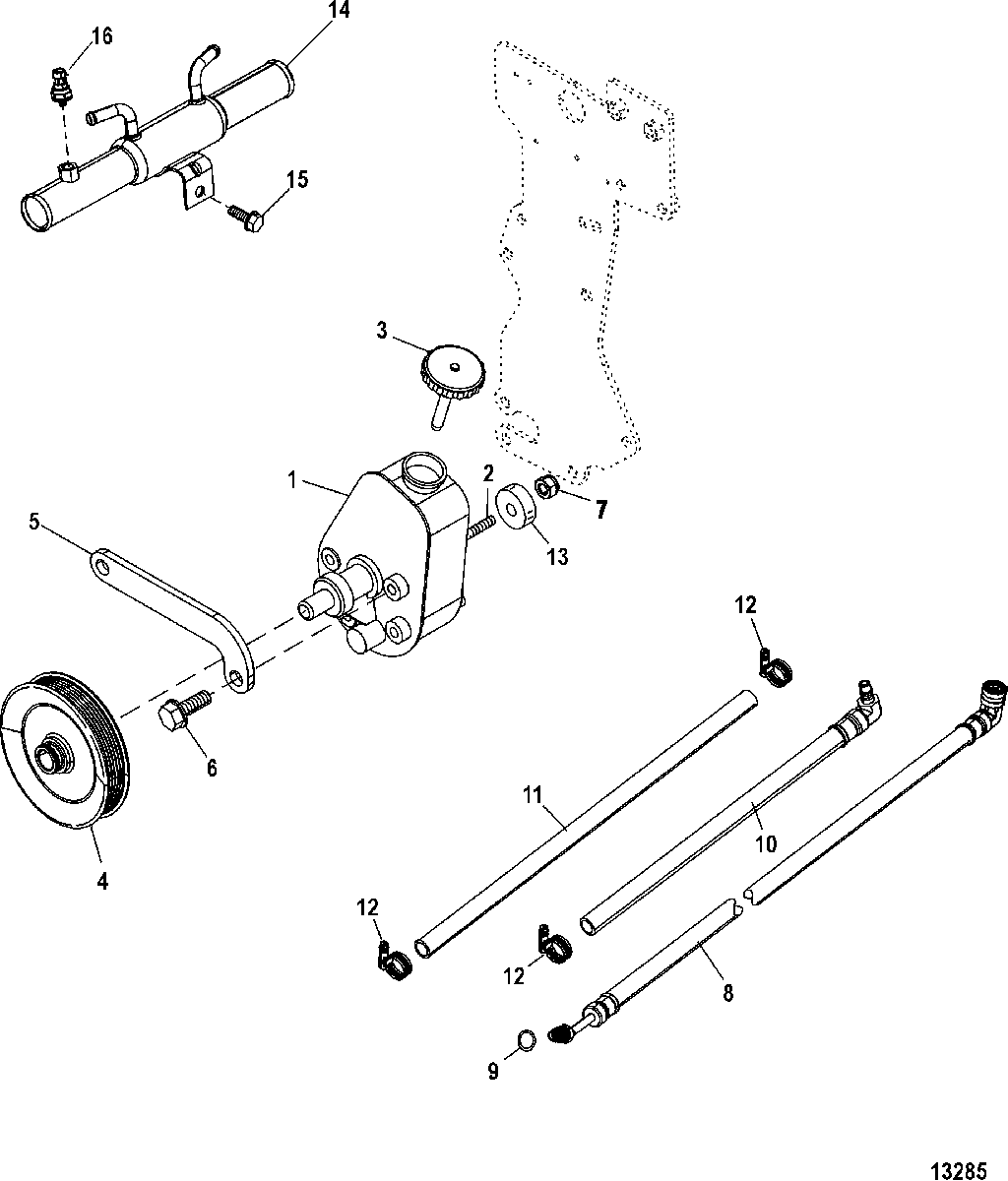

Power Steering Components для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W310000 THRU 0W649999

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, Power Steering
    PUMP ASSEMBLY, Power Steering
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    861578 PULLEY
    PULLEY
  • 5
    862082T BRACE, Power Steering
    BRACE, Power Steering
  • 6
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 7
    11-90517 NUT, (M10)
    NUT, (M10)
  • 8
    32-8M0063020 HOSE, Female Quick Connect (Fittings on Both Ends)
    HOSE, Female Quick Connect (Fittings on Both Ends)
  • 8
    32-8M0063022 HOSE, Female Quick Connect (Fittings on Both Ends)
    (Jackshaft Models)
    HOSE, Female Quick Connect (Fittings on Both Ends)
    (Jackshaft Models)
  • 9
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 10
    32-865390015 HOSE, Male Quick Connect (Fitting on One End)
    HOSE, Male Quick Connect (Fitting on One End)
  • 10
    32-865390134 HOSE, Male Quick Connect (Fitting on One End)
    (Jackshaft Models)
    HOSE, Male Quick Connect (Fitting on One End)
    (Jackshaft Models)
  • 11
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (37 Inch)
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (37 Inch)
  • 12
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 13
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 14
    8M0125856 COOLER, Power Steering
    COOLER, Power Steering
  • 15
    10-816585 SCREW, (.375-18 x .875)
    SCREW, (.375-18 x .875)
  • 16
    8M6000623 SENSOR
    SENSOR
  • NS
    19-8M0074363 COVER, Hose Clamp End
    (.25 Inside Diameter)
    COVER, Hose Clamp End
    (.25 Inside Diameter)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    (.375 Inside Diameter)
    COVER, Hose Clamp End
    (.375 Inside Diameter)
  • NS
    77054 TIE STRAP, (14.50 Inches)
    TIE STRAP, (14.50 Inches)
