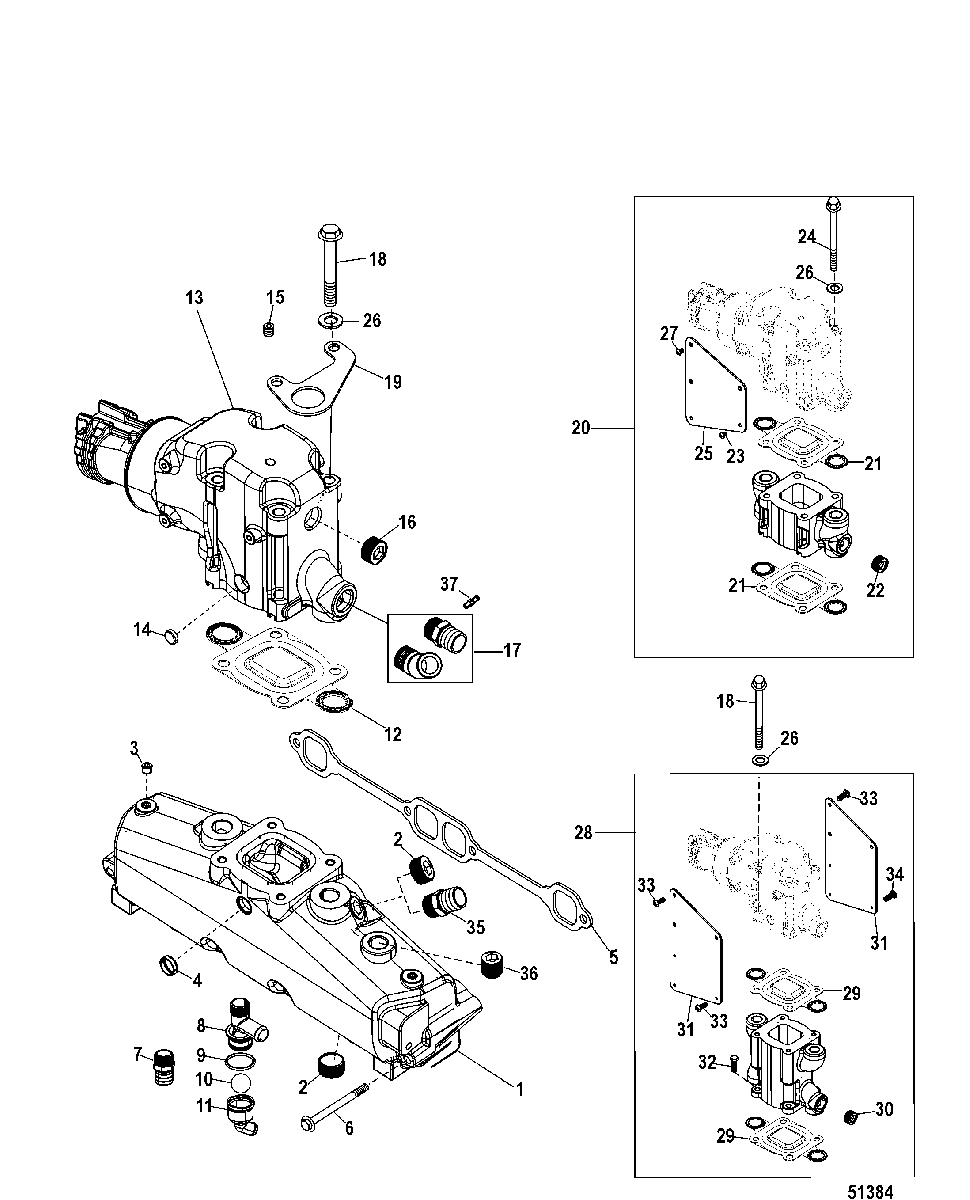

Exhaust Manifold and Elbow для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W060000 THRU 0W309999

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 5
    27-33395 GASKET, Manifold
    GASKET, Manifold
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-866725 FITTING, (.750-14)
    (Closed Cooling)
    FITTING, (.750-14)
    (Closed Cooling)
  • 8
    22-863786A1 FITTING ASSEMBLY, Drain
    (Standard Cooling)
    FITTING ASSEMBLY, Drain
    (Standard Cooling)
  • 9
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 10
    30-863129 BALL, Check
    BALL, Check
  • 11
    862994T FITTING
    FITTING
  • 12
    27-864850A02 GASKET, Elbow, Resitrictor
    (Standard Cooling)
    GASKET, Elbow, Resitrictor
    (Standard Cooling)
  • 12
    27-864549A02 GASKET, Elbow, Block Off
    (Closed Cooling)
    GASKET, Elbow, Block Off
    (Closed Cooling)
  • 13
    864309T02 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 17
    22-865159 FITTING, (45 Degree)
    FITTING, (45 Degree)
  • 18
    10-43749 SCREW, (.375-16 x 5.750), Exhaust Elbow
    SCREW, (.375-16 x 5.750), Exhaust Elbow
  • 20
    864929A1 RISER EXTENSION KIT, 3 Inch Warm Riser
    (Standard Cooling)
    RISER EXTENSION KIT, 3 Inch Warm Riser
    (Standard Cooling)
  • 20
    864929A2 RISER EXTENSION KIT, 3 Inch Warm Riser
    (Closed Cooling)
    RISER EXTENSION KIT, 3 Inch Warm Riser
    (Closed Cooling)
  • 21
    27-864850A02 GASKET, Restrictor
    (Standard Cooling)
    GASKET, Restrictor
    (Standard Cooling)
  • 21
    27-864549A02 GASKET, Block Off
    (Closed Cooling)
    GASKET, Block Off
    (Closed Cooling)
  • 21
    27-864547A02 GASKET, Full Flow
    (With Risers Only)
    GASKET, Full Flow
    (With Risers Only)
  • 22
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 23
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 24
    864531 BOLT, (.375-16 x 9.00)
    BOLT, (.375-16 x 9.00)
  • 25
    863714T01 BRACKET
    BRACKET
  • 26
    12-34714 WASHER
    WASHER
  • 27
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 28
    864908A1 RISER EXTENSION KIT, 6 Inch Warm Riser
    (Standard Cooling)
    RISER EXTENSION KIT, 6 Inch Warm Riser
    (Standard Cooling)
  • 28
    864908A2 RISER EXTENSION KIT, 6 Inch Warm Riser
    (Closed Cooling)
    RISER EXTENSION KIT, 6 Inch Warm Riser
    (Closed Cooling)
  • 29
    27-864850A02 GASKET, Restrictor
    (Standard Cooling)
    GASKET, Restrictor
    (Standard Cooling)
  • 29
    27-864549A02 GASKET, Block Off
    (Closed Cooling)
    GASKET, Block Off
    (Closed Cooling)
  • 29
    27-864547A02 GASKET, Full Flow
    (With Risers Only)
    GASKET, Full Flow
    (With Risers Only)
  • 30
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 31
    863715T01 BRACKET
    BRACKET
  • 32
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 33
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 34
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 35
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 36
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 37
    22-16604 FITTING, Straight (.125-27)
    FITTING, Straight (.125-27)
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
