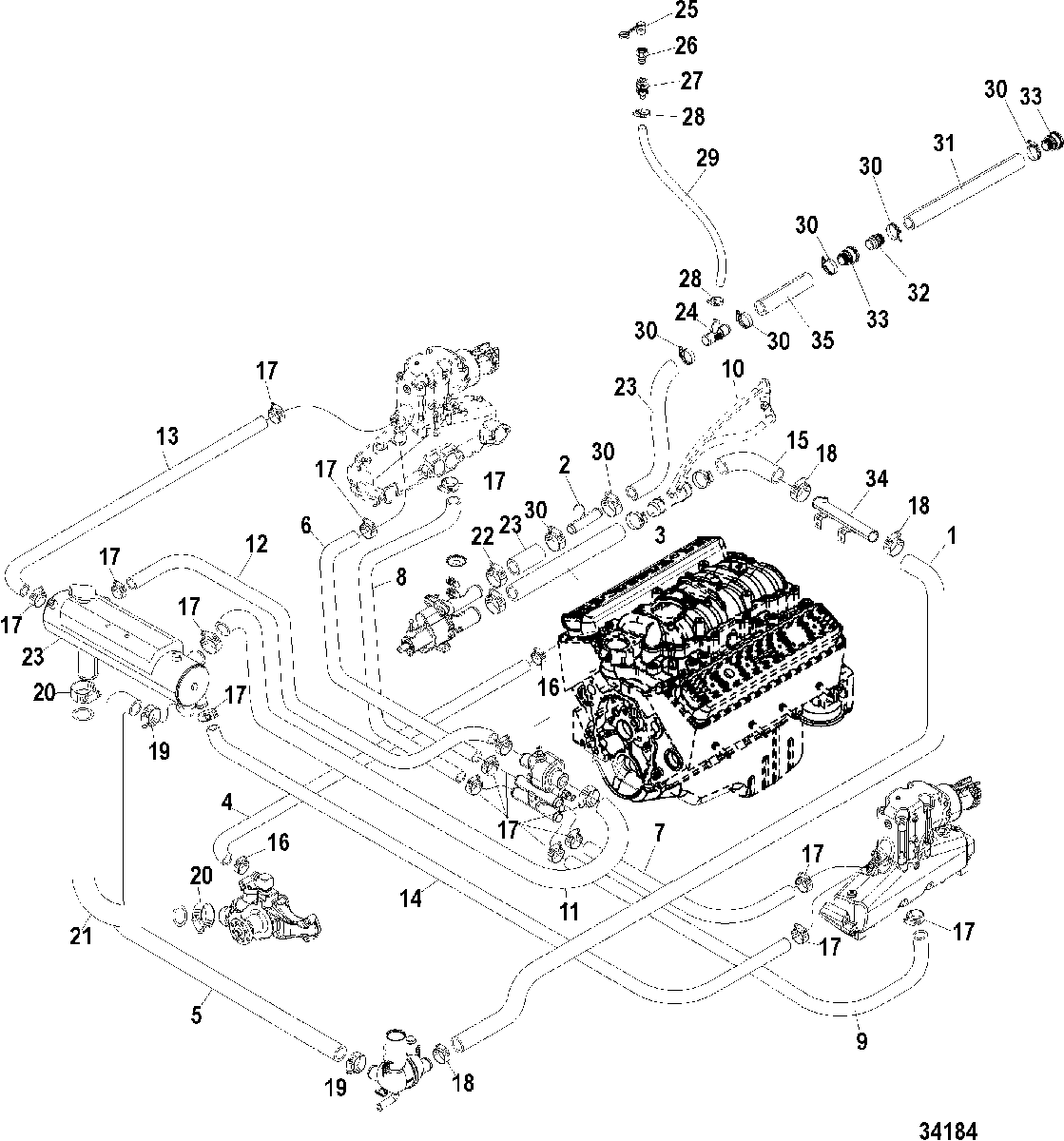

Closed Cooling System, BRAVO для Mercruiser - 350 MAG MPI ALPHA/BRAVO 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    32-865247 HOSE, Power Steering Cooler to Accumulator Housing
    HOSE, Power Steering Cooler to Accumulator Housing
  • 2
    22-864727 FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
    FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
  • 3
    32-865234 HOSE, Sea Water Pump to Water Orifice
    HOSE, Sea Water Pump to Water Orifice
  • 4
    32-864551 HOSE, Intake Bypass to Circulating Pump
    HOSE, Intake Bypass to Circulating Pump
  • 5
    32-864431 HOSE, Distribution Fitting to Heat Exchanger
    HOSE, Distribution Fitting to Heat Exchanger
  • 6
    32-864539 HOSE, Thermostat Housing to Upper Manifold
    (Starboard) (Non Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard) (Non Riser)
  • 6
    32-864956 HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
  • 7
    32-864552 HOSE, Thermostat Housing to Upper Manifold
    (Port) (Non Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Port) (Non Riser)
  • 7
    32-864954 HOSE, Thermostat Housing to Upper Manifold
    (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
    HOSE, Thermostat Housing to Upper Manifold
    (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
  • 8
    32-864509 HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
    HOSE, Thermostat Housing to Lower Manifold
    (Starboard)
  • 9
    32-864508 HOSE, Thermostat Housing to Lower Manifold
    (Port)
    HOSE, Thermostat Housing to Lower Manifold
    (Port)
  • 11
    32-864506 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 12
    32-864507 HOSE, Heat Exchanger to Thermostat Housing
    HOSE, Heat Exchanger to Thermostat Housing
  • 13
    32-8M2005027 HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
  • 13
    32-864955 HOSE, Heat Exchanger to Starboard Elbow
    (4.7 Inch and 6 Inch Riser)
    HOSE, Heat Exchanger to Starboard Elbow
    (4.7 Inch and 6 Inch Riser)
  • 14
    32-864726 HOSE, Heat Exchanger to Port Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
    HOSE, Heat Exchanger to Port Elbow
    (Non Riser, 1.7 Inch and 3 Inch Riser)
  • 14
    32-864953 HOSE, Heat Exchanger to Port Elbow
    (4.7 Inch and 6 Inch Riser)
    HOSE, Heat Exchanger to Port Elbow
    (4.7 Inch and 6 Inch Riser)
  • 15
    32-8M2021655 HOSE, Water Orifice to Power Steering Cooler
    HOSE, Water Orifice to Power Steering Cooler
  • 16
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 18
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 19
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 21
    32-864886 HOSE, Heat Exchanger to Circulating Pump
    HOSE, Heat Exchanger to Circulating Pump
  • 22
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 23
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 24
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
  • 25
    19-858240 CAP
    CAP
  • 26
    22-857175 FITTING
    FITTING
  • 27
    22-861406 SOCKET
    SOCKET
  • 28
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 29
    32-8M0062635 HOSE, (34 Inches)
    HOSE, (34 Inches)
  • 30
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 31
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    Cut to Fit
    HOSE, (96.00 Inches Bulk)
    Cut to Fit
  • 32
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 33
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 34
    863841T TUBE, Water, Brass
    (Compact Hydraulic Steering)
    TUBE, Water, Brass
    (Compact Hydraulic Steering)
  • 35
    32-8M0062666 HOSE, (96.00 Inches Bulk), Cut to 19 inchs
    HOSE, (96.00 Inches Bulk), Cut to 19 inchs
